GS 3/5W 29mm Planetary Brushless DC Motor with High Quality

Name: GS 3/5W 29mm Planetary Brushless DC Motor with High Quality
Brand: all-electronics-online.com
SKU: 772141815
Availability: InStock
Rating: 4.9 (85 reviews)

Price:	US $ 19.8-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSBLD29R5D12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Technical Data:	Can Be Customized
Size:	22mm~90mm
Application:	Medical Equipment
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Brand:	GS

Product Description

5w 29mm DC brushless Motor

Introduction

Brushless DC motor (BLDC) is made up of motor and driver, which is a kind of typical product of mechanical and electrical and electrical integration. It is high regarded bymarket as its small volume, low noise, high efficiency, wide range of speed control and steady working state with less inaccuracy.

Specification

Model of Motor	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated Torque N.m	Lenth
GSBLD29R5D12	12	5	0.83	3000	0.016	60mm
GSBLD29R5D12	24	5	0.42	3000	0.016	60mm
GSBLD29R3D12	12	3	0.50	3000	0.010	50mm
GSBLD29R3D12	24	3	0.50	3000	0.010	50mm

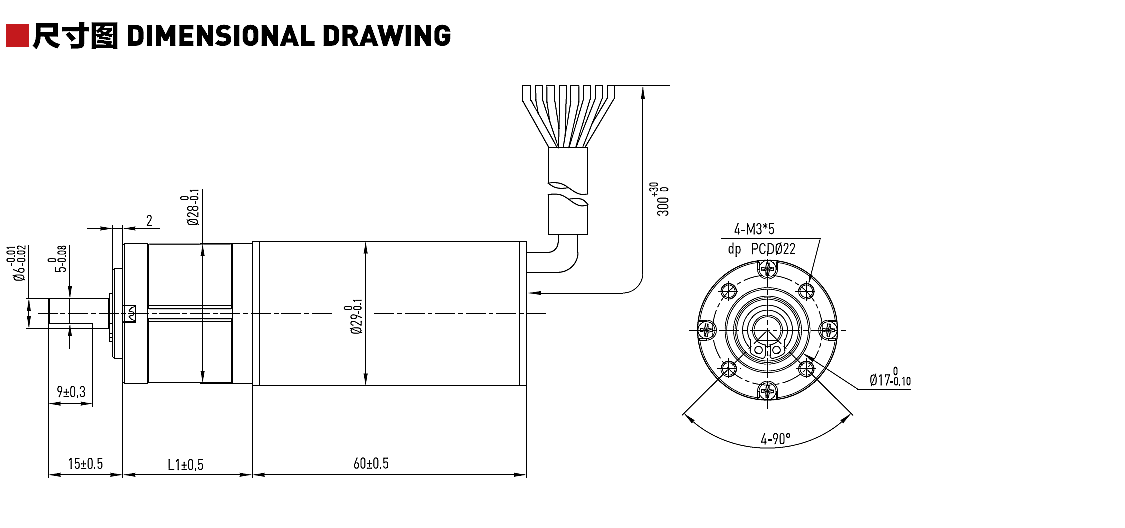

Drawing

Note:

Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

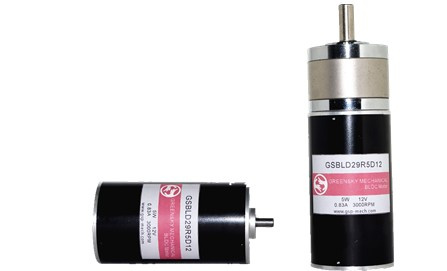

View Of Item

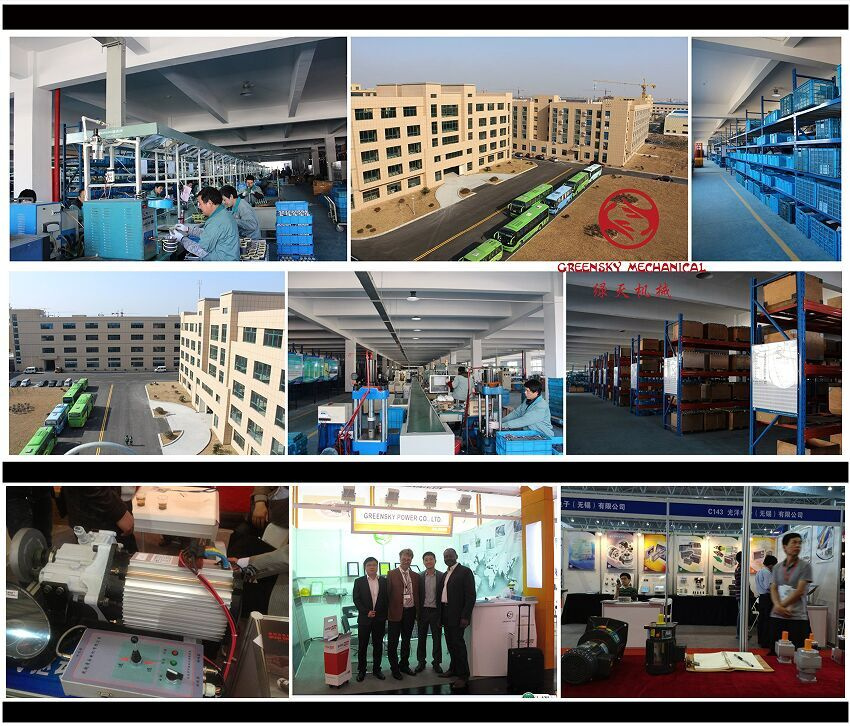

About Greensky Mechanical
