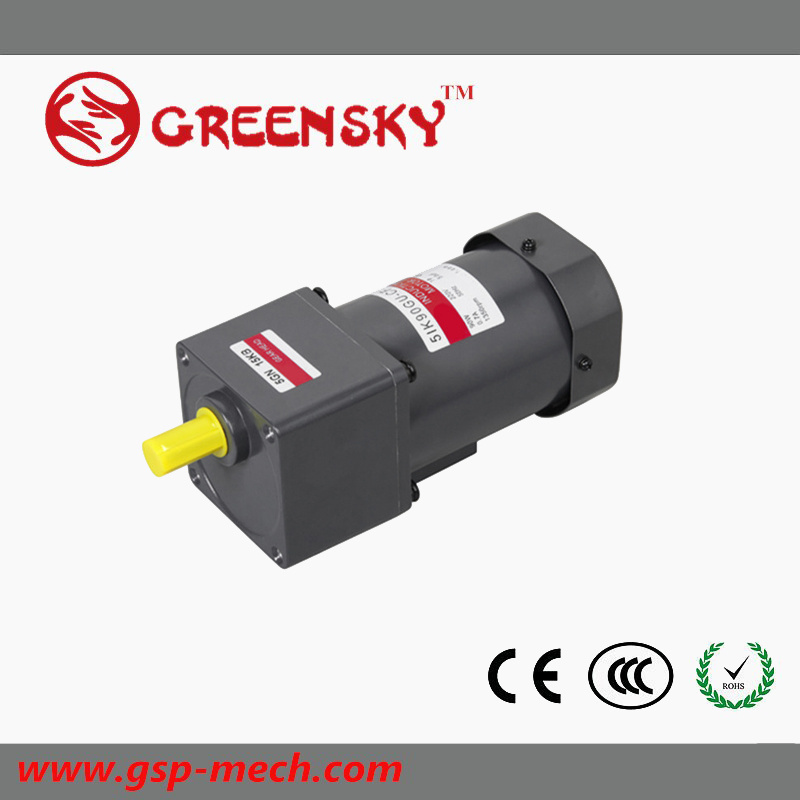

GS 5rk90A-Eft 90W 90mm Reversible AC Motor

Name: GS 5rk90A-Eft 90W 90mm Reversible AC Motor
Brand: all-electronics-online.com
SKU: 743482275
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 33-38/Piece
Trade Terms:	FOB,CIF,DDP
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	5RK90A-EFT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
All Techniacal Data:	Can Be Customized
Number Of Stator:	Single-Phase
Function:	Control
Brand:	GS

Product Description

90W 90mm ac reversible motor

Introduction
Reversible motor has a friction brake at the back of the motor body, which is designed for applications where reversal of direction is frequently required. The reversible motor is like induction motor that started by the capacitor and has a same torque characteristic with the induction motor. But the reversible motor is designed with a higher starting torque to increase the instant reversal features.

Specifications
1. Dimensions: 90mm
2. Rated Power: 90W
3. Voltage: 110/120/220/230V
4. CCC, CE, UL, CU
5. Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

Greensky's Advantage
On the site you can find a range of renewable products including ac/dc motor, induction motor, reversible motor, brake motor, speed control motor, ac angel motor, gear motor, planetary gearbox, worm gearbox and their relevant components.

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire	Terminal Box
5RK90GN-AF (5RK90A-AF)	5RK90GN-AFT (5RK90A-AFT)	90	1ph100	50	1.78	470	700	1250	30
				60	2.35		570	1550
5RK90GN-EF (5RK90A-EF)	5RK90GN-EFT (5RK90A-EFT)	90	1ph110	60	1.72	700	570	1550	25
			1ph120			570
5RK90GN-CF (5RK90A-CF)	5RK90GN-CFT (5RK90A-CFT)	90	1ph220	50	0.82	560	700	1250	6
			1ph230		0.81
5RK90GN-HF (5RK90A-HF)	5RK90GN-HFT (5RK90A-HFT)	90	1ph220	60	0.81	560	570	1550	6
			1ph230		0.80

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
