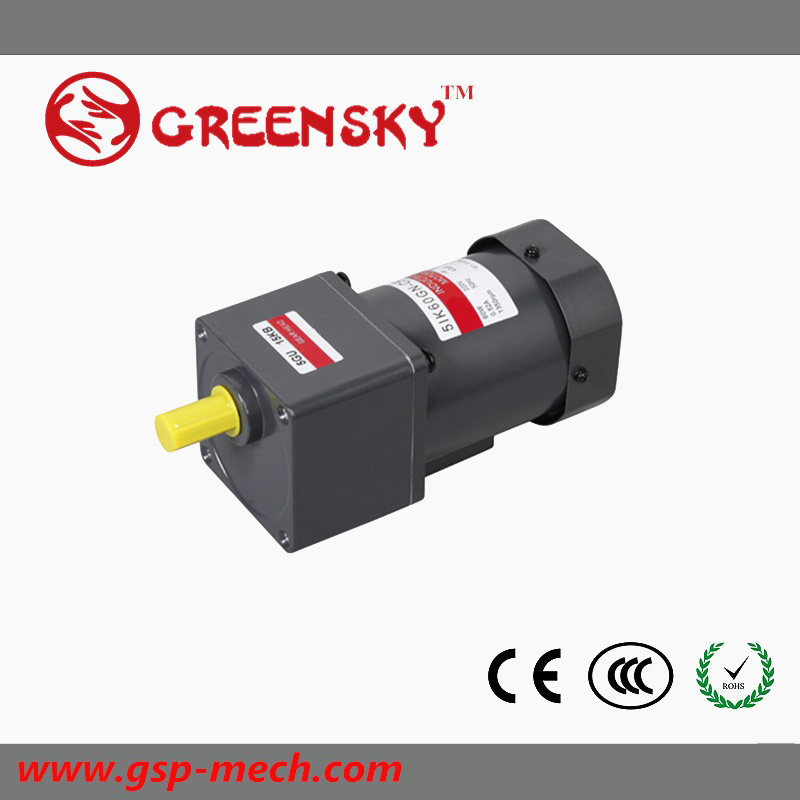

GS High Efficient 60W 90mm AC Induction Motor

Name: GS High Efficient 60W 90mm AC Induction Motor
Brand: all-electronics-online.com
SKU: 743460785
Availability: InStock
Rating: 5 (136 reviews)

Price:	US $ 61.3-69.7/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	5IK60GN-AFT (5IK60A-AFT)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Technical Data:	Can Be Customized
Number Of Stator:	Single-Phase
Function:	Driving
Brand:	GS

Product Description

60W 90mm ac induction motor

Introduction
Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.

Specifications
1. Dimensions of device: 90mm
2. Rated Power: 60W
3. Voltage: 110/120/220/230V
4. CCC, CE, UL, CU
5. Can be customized

Greensky's Advantage
On the site you can find a range of renewable products including ac/dc motor, induction motor, reversible motor, brake motor, speed control motor, ac angel motor, gear motor, planetary gearbox, worm gearbox and their relevant components.

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type	Terminal Box Type
5IK60GN-AF (5IK60A-AF)	5IK60GN-AFT (5IK60A-AFT)	60	1ph100	50	1.00	320	470	1250	20.0
				60	1.10		380	1550
5IK60GN-EF (5IK60A-EF)	5IK60GN-EFT (5IK60A-EFT)	60	1ph110	60	0.80	300	380	1550	12.0
			1ph120		0.85
5IK60GN-CF (5IK60A-CF)	5IK60GN-CFT (5IK60A-CFT)	60	1ph220	50	0.50	340	470	1250	4.0
			1ph230		0.55
5IK60GN-HF (5IK60A-HF)	5IK60GN-HFT (5IK60A-HFT)	60	1ph220	60	0.50	340	380	1550
			1ph230		0.55
5IK60A-SF (5IK60A-SF)	5IK60G-SFT (5IK60A-SFT)	60	3ph220	50	0.45	1000	470	1250	_
				60	0.40	800	380	1550
