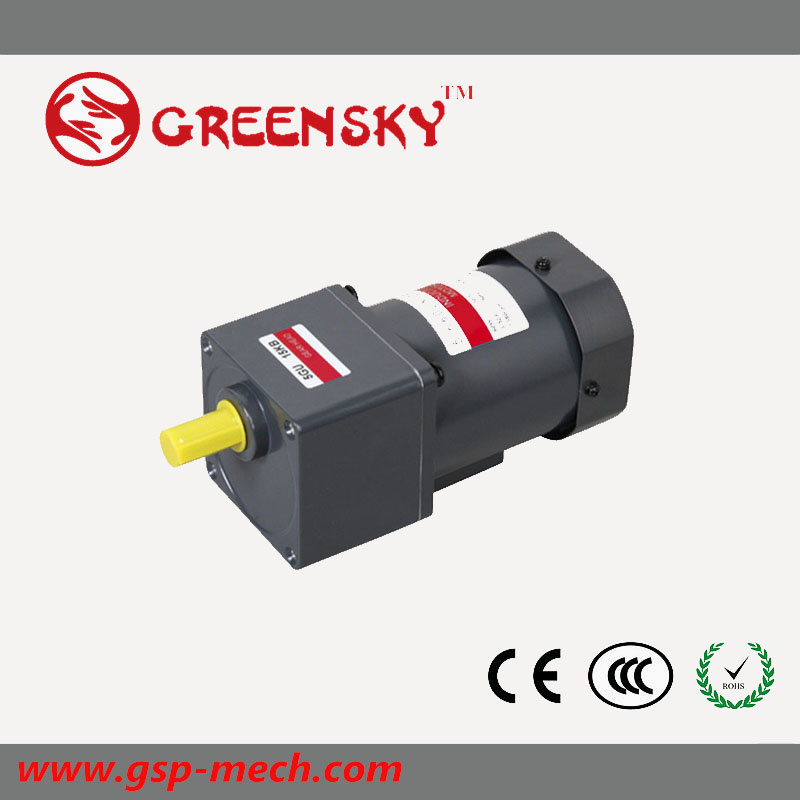

GS High Efficient AC Reversible 60W 90mm Geared Motor

Name: GS High Efficient AC Reversible 60W 90mm Geared Motor
Brand: all-electronics-online.com
SKU: 743466065
Availability: InStock
Rating: 4.4 (63 reviews)

Price:	US $ 52-53/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5RK60GU-AF/5RK60GU-EF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Speed:	1250/1550rpm
Power:	60W
Voltage:	110V~220V/230V
Frequency:	50/60Hz
Rated Torque:	0.470n.M
Capacitor:	25UF
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	CE UL
Brand:	GS

Product Description

Introduction
Reversible motor has a friction brake at the back of the motor body, which is designed for applications where reversal of direction is frequently required. The reversible motor is like induction motor that started by the capacitor and has a same torque characteristic with the induction motor. But the reversible motor is designed with a higher starting torque to increase the instant reversal features.
Specifications
1. Dimensions of device: Dia 90mm
2. Rated Power: 60W
3. Voltage: 220V
4. CCC, CE, UL, CU
5. Can be customized

Greensky's advantage
On the site you can find a range of renewable products including ac/dc motor, ac induction motor, reversible motor, blake motor, speed motor, ac angel motor, gear motor, planetary gear box, worm gear box and their relevant components.

If you have any other questions, please feel free to contact us.

Model	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated Torque N.m	Capacitor uF
5RK60GU-AF	100	60	1.26	1250	0.470	25
			1.70	1550	0.380
5RK60GU-EF	110	60	1.05	1550	0.380	15
	120		1.05
5RK60GU-CF	220	60	0.55	1250	0.470	4.5
	230		0.60
5RK60GU-HF	220	60	0.55	1550	0.380	4.5
	230		0.60
