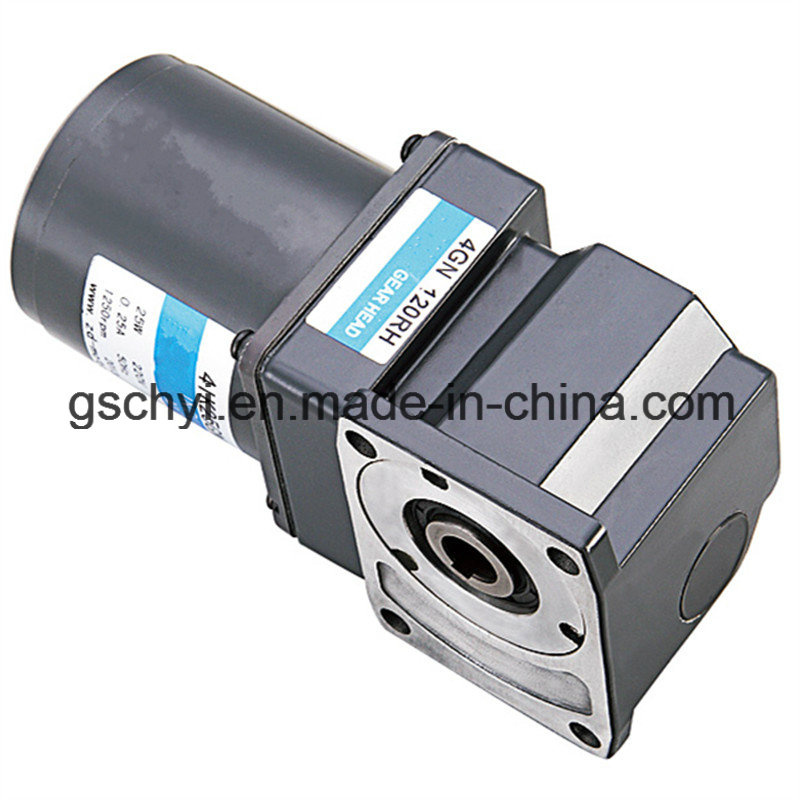

GS High Quality 80mm Worm Gear Angle Motor

Name: GS High Quality 80mm Worm Gear Angle Motor
Brand: all-electronics-online.com
SKU: 743466845
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 23.5-25.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4IK25GN-A/4IK25GN-E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	1250rpm
Power:	180W
Voltage:	110V/120V/220V
Rated Torque:	900mn.M
Current:	0.3A
Structure And Working Principle:	Brush
Operating Speed:	High Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	GS
Certification:	CCC, CE, UL

Product Description

Introduction
Brushless dc motor (bldc) is made up of motor and driver, which is a kind of typical product of mechanical and electrical and electrical integration. It is high regarded by market as its small volume, low noise, high efficiency, wide range of speed control and steady working state with less inaccuracy.

Specifications
1. Dimensions of device: Dia 104mm
2. Rated Power: 180W
3. Voltage: 220V
4. CCC, CE, UL, CU
5. Can be customized

Greensky's advantage
On the site you can find a range of renewable products including ac/dc motor, ac induction motor, reversible motor, blake motor, speed motor, ac angel motor, gear motor, planetary gear box, worm gear box and their relevant components.

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type	Terminal Box Type
6IK180GU-AF (6IK180A-AF)	6IK180GU-AFT (6IK180A-AFT)	180	1ph100	50	3.20	900	1385	1250	45.0
				60	3.50		1120	1550
6IK180GU-EF (6IK180A-EF)	6IK180GU-EFT (6IK180A-EFT)	180	1ph110	60	2.75	850	1120	1550	35.0
			1ph120		2.65
6IK180GU-CF (6IK180A-CF)	6IK180GU-CFT (6IK180A-CFT)	180	1ph220	50	1.40	1100	1385	1250	12.0
			1ph230
6IK180GU-HF (6IK180A-HF)	6IK180GU-HFT (6IK180A-HFT)	180	1ph220	60	1.40	1000	1120	1550
			1ph230
6IK180GU-SF (6IK180A-SF)	6IK180GU-SFT (6IK180A-SFT)	180	3ph220	50	1.20	3400	1385	1250	_
				60	1.00	2700	1120	1550

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
