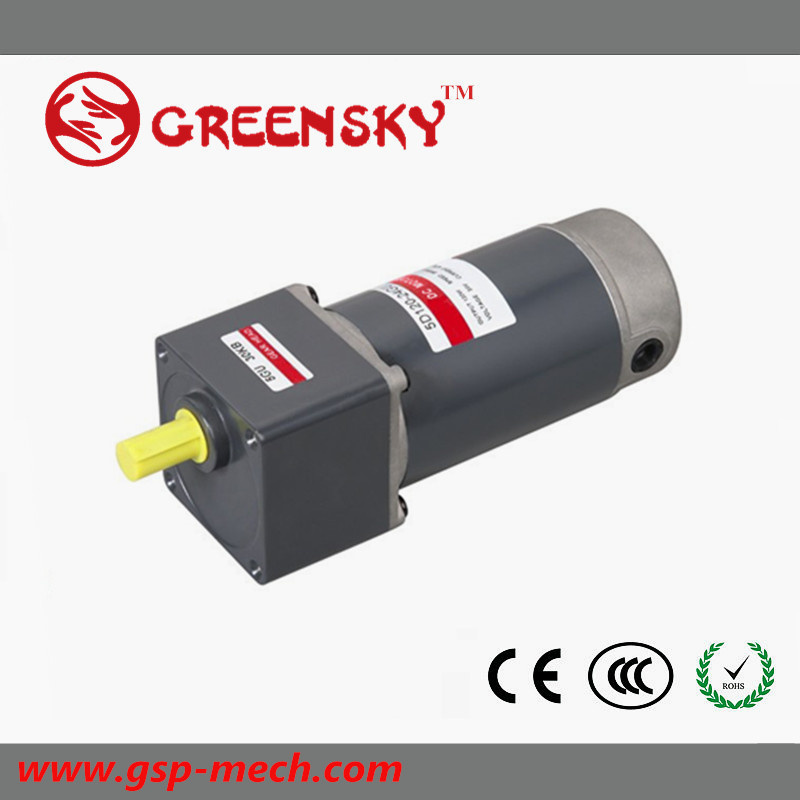

GS High Torque 12V 120W 90mm DC Motor

Name: GS High Torque 12V 120W 90mm DC Motor
Brand: all-electronics-online.com
SKU: 772722875
Availability: InStock
Rating: 4.5 (85 reviews)

Price:	US $ 41.5-47.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSDC90S120D1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Technical Data:	Can Be Customized
Size:	60mm~90mm
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Brand:	GS

Product Description

120W 90mm DC Motor

Introduction

Brushless DC motor (BLDC) is made up of motor and driver, which is a kind of typical product of mechanical and electrical and electrical integration. It is high regarded bymarket as its small volume, low noise, high efficiency, wide range of speed control and steady working state with less inaccuracy.

Specification

Model	Voltage V	Rated Power W	No-load Parameters		Load Parameters			Brush Life H	Motor Weight kg
Model	Voltage V	Rated Power W	Speed RPM	Current A	Speed r/min	Torque mN.m	Current A	Brush Life H	Motor Weight kg
GSDC90S120D12	12	120	3100	2.0 Max	2500	458	15.0	2000	2.2
GSDC90S120D24	24	120	3000	1.0 Max	2600	441	7.0	2000	2.2
GSDC90S120D90	90	120	3200	0.3 Max	2600	441	2.0	2000	2.2

Note:
Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.
