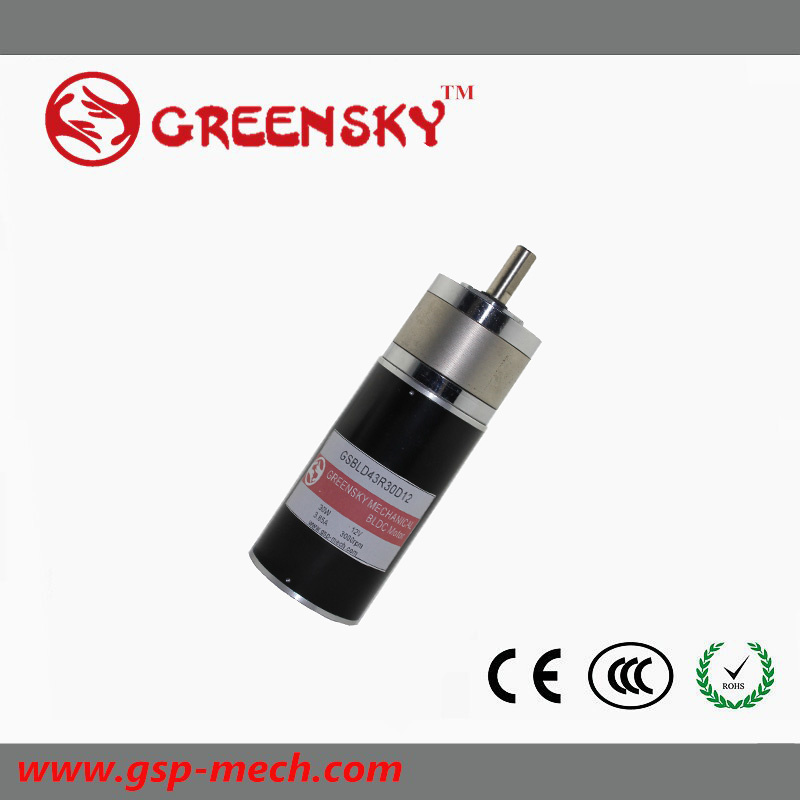

GS Small 15W 43mm Planetary Brushless DC Motor with High Quality

Name: GS Small 15W 43mm Planetary Brushless DC Motor with High Quality
Brand: all-electronics-online.com
SKU: 772809035
Availability: InStock
Rating: 4.5 (136 reviews)

Price:	US $ 22.5-27.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSBLD43R30D12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Technical Data:	Can Be Customized
Size:	22mm~90mm
Application:	Medical Equipment
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Brand:	GS

Product Description

30w 36mm DC brushless Motor

Introduction

Brushless DC motor (BLDC) is made up of motor and driver, which is a kind of typical product of mechanical and electrical and electrical integration. It is high regarded bymarket as its small volume, low noise, high efficiency, wide range of speed control and steady working state with less inaccuracy.

Specification

Model of Motor	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated Torque N.m	Lenth
GSBLD43R30D12	12	30	3.85	3000	0.096	80mm
GSBLD43R30D24	24	30	1.92	3000	0.096	80mm
GSBLD43R20D12	12	20	2.56	3000	0.064	70mm
GSBLD43R20D24	24	20	1.28	3000	0.064	70mm

Note:
Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

Greensky's Advantage

On the site you can find a range of renewable products including ac/dc motor, induction motor, reversible motor, brake motor, speed control motor, ac angel motor, gear motor, planetary gearbox, worm gearbox and their relevant components.

If you have any other questions, please feel free to contact us.

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
