| Prod Model: |
vehicke gps 303F |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
<5m |
| Car Voltage: |
12V, 24V |
| Special Features: |
Real Time Tracking, Digital Compass, Sos |
| Tracking System: |
Www.Gpstrackerxy.COM |
| Certificate: |
Ce RoHS FCC |
| Warranty: |
1 Year |
| Function: |
Waterproof |
| Battery: |
3 Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No |
| Operating Principle: |
GPS Tracker Support GSM |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Model: |
GPS Tracker Tk303f |
| Brand: |
Baanool |
| Chip: |
CB900 |
| Certification: |
ISO9001 |
Product Description

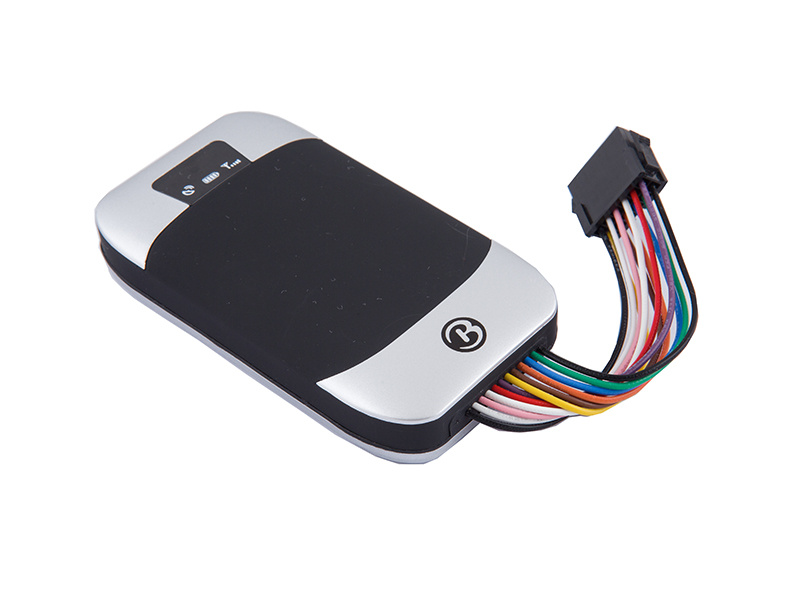

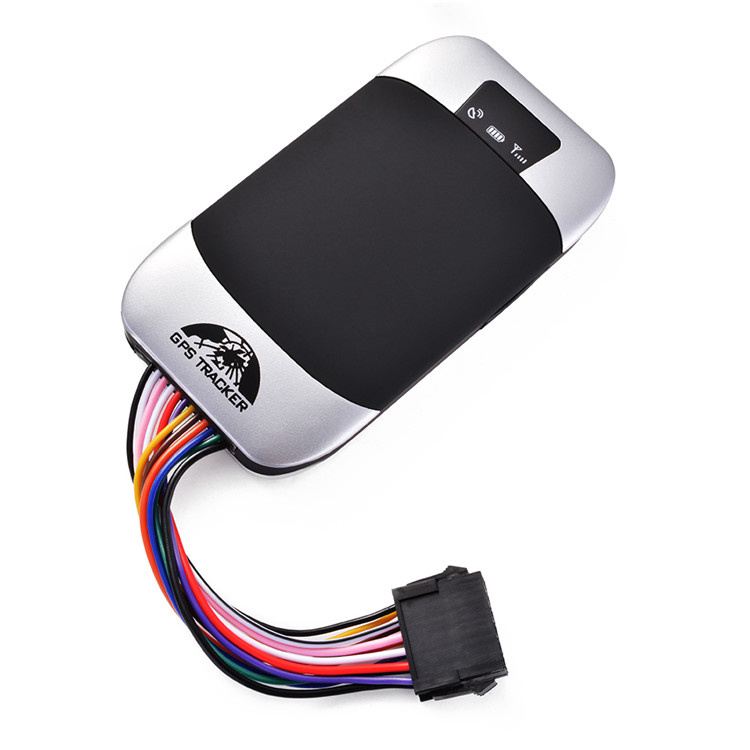

GPS Tracker
Function Introduction
Working Based on existing GSM/GPRS network and GPS satellites, Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management, this product can locate and monitor any remote targets by SMS or internet.
Features
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
Application
Used widely for vehicle and other moving objects tracking.
Specifications
| Content | specifications |

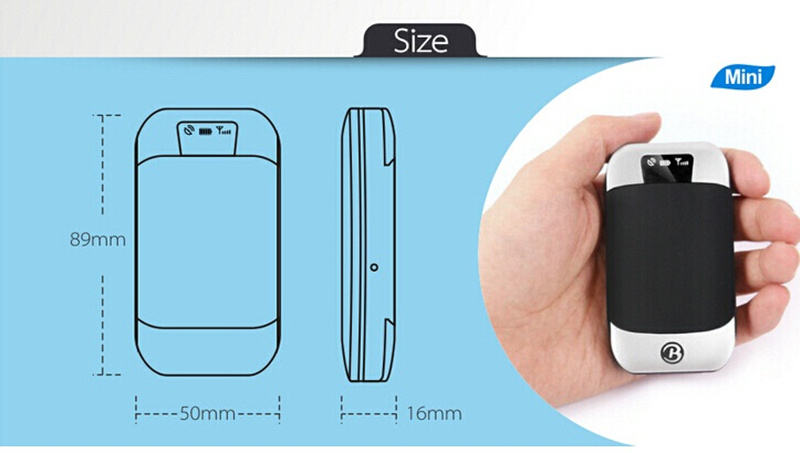

| DIM. | 9.6×5.3×1.6cm |
| Weight | 70g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

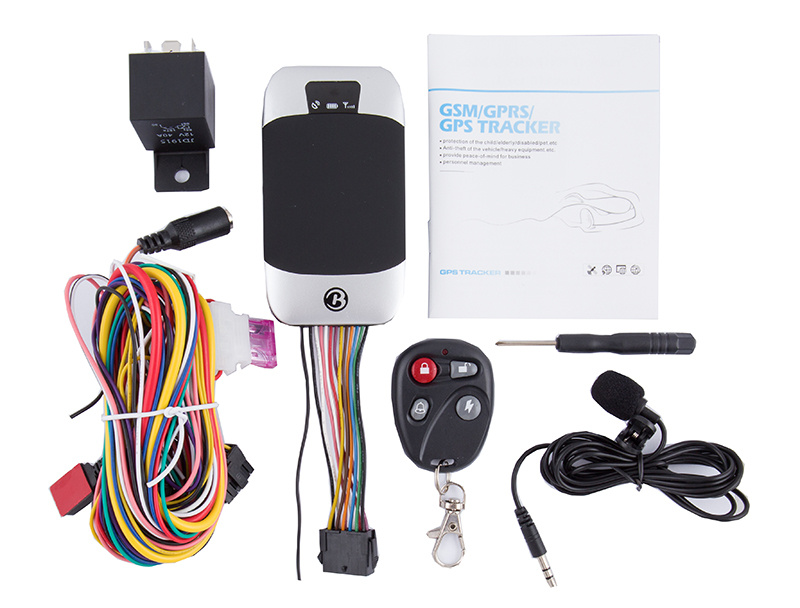

Package
GPS unit
12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
Attention:
Optional accessories
MicroSD
Alarm sire(big or small both ok)
Alarm Function ( siren beeps )
Fuel sensor
Calibration of fuel sensor
Due to the different height of fuel tank and fuel level sensor specifications, tracker need to set an appropriate zero value and full range value to detect the precise fuel percentage.
Tracker can connect to car original voltage type fuel level sensor ranging from 0-5V. You can also connect add-on voltage type fuel level sensor if you cannot use the one of the original car.
Fuel Alarm
When the fuel consumption exceeds the normal standards during driving, or oil theft/leakage when the vehicle is stopped, the tracker will send "oil: xx% + Geo-info" to the authorized number at interval of 3 minutes. The siren beeps 20S.
Cancel: Send SMS command " nooil+password" to tracker.
8PIN USB Cable
Cancel logging
the first method: use USB Cable
do not use USB (Send SMS "nosave+password", e.g. nosave123456)
Configure parameters by USB
Connect tracker to computer with the optional USB cable, open the memory of the tracker, find and open the initial configuration file with notepad, operate according the instructions.
Note: Correct password is needed every time you configure the tracker.
Function
Single Locating
Auto track continuously (Track with limited times upon time interval,
Smart track upon time and distance interval)
Turning points update automatically
GPS drift suppression
Exact street address
Location based service (LBS) / Cell-ID Locating
Monitor
Data logging
Data Load
Forward the third parties' message
SIM card Balance Inquiry
ACC working alarm
Cut off the oil and power system
Calibration of fuel sensor
Function of Remote Controller (Option, for model G ONLY )
Arm(Set up arm by SMS, Set up arm by remote controller (Option, for model G ONLY))
Silent Mode
DISARM
Decide how many times of alarm message
Alarm Function(Low battery alarm, External Power off alarm, GPS blind Spot alert, SOS, Geo-fence, Multi-area management, Movement alarm, Overspeed alarm, Fuel Alarm)
Alarms under Arm State (Door Open Alarm, ACC Alarm )
Built in Acceleration SensorAlarm
Alarm without GSM network service
Sleep Model
Check the Vehicle State
Check IMEI
Set up Terminal (local) Time
Reset Hardware
Configure parameters by USB
Activate "Fuel" value in GPRS data
Set up monitor center number
web platform and mobile APP
