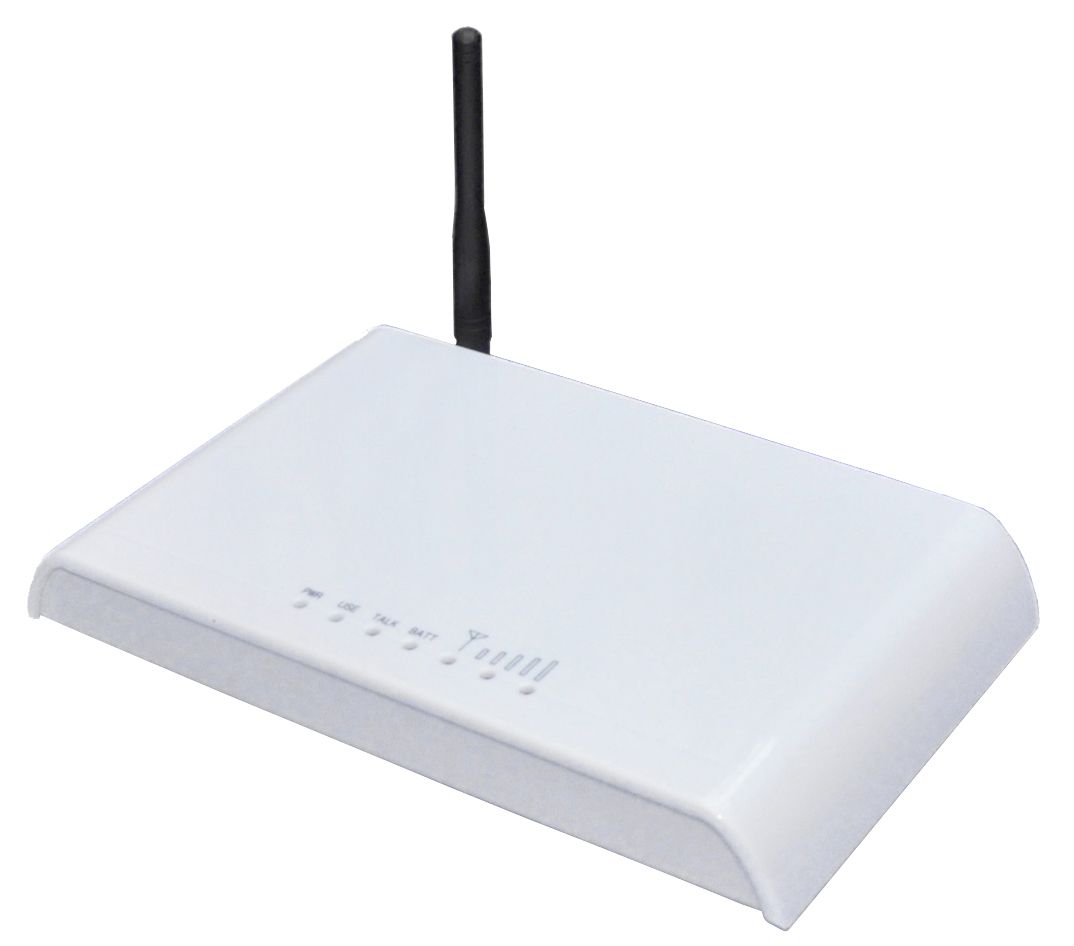

GSM Fax Terminal (supports voice and fax function)

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension(L*W*H):	420*220*70mm
Color:	White/Black
G. W:	800g
Type1:	Wireless
Usage:	Telephone
Support Network:	Switch
Type:	Wireless

Product Description

Brand: Etross or OEM Brand

Model no.: Etross-8848

Product name: GSM G3 FAX Terminal/GSM Fixed Wireless Fax Terminal

Frequencies: GSM 900/1800 MHz dual band; GSM 850/900/1800/1900 MHz quad band

The GSM FAX Terminal-8848 has the basic telephone function by easily connecting to telephone set,

And it can also connect to analogue fax machine to send/receive faxes. The device is available to

Use in area where the cable and telephone install-ation are not accessible



Main function & Features

1) GSM G3 fax terminal supports voice and fax function;

2) Employ siemens TC35i module to make;

3) Can send and recieve fax by connecting to an analogue fax machine;

4) Compatiable to most telephones, PBX devices and analogue fax machines;

5) Connect to Alam systems to realize wireless alarm ( for security use )

6) Strong signals with high gain antenna

7) Attractive plastic casing

8) SIM card supported (1.8V, 3V)

9) DTMF CLIP ( Caller ID display)

10) Provides reversal polarity signal for billing

11) No noise and clear voice

12) Suitable for wide voltage range and low power consumption

13) Suitable for all kinds of weather and environment

14) RJ-11 ports (1 for connecting ordinary telephone set, another for connecting fax device)

15) Locking PIN / network (optional)



Specifications:

1) Air interface: GSM 900 / 1, 800MHz or Quadband (850/900/1800/1900Mhz)

2) External in interface:

The power supply interface: POWER/DC12V

Outside phone interface: RJ11 (PHONE)

Outside fax interface: RJ11 (FAX)

The antenna interface: SMA (Male)

1.8V, 3V SIM interface

The data Service interface: SERIAL PORT

3) Power adaptor:

Input voltage: AC90-260V/ 50HZ

Output current: 1.2a

4) Backup battery:

Ni-MH battery

7.2V/ 1.2A

5) Antenna: Frequency Band: 890-960 NHz / 1710-1880 MHz

Gain: 2.5dBi

Wave ratio: <1.5

Input resistance: 50ohm.

Polarize method: Perpendicularity polarizes

6) Size: (LxWxH): 420mmx 220mm x70mm (not include the antenna)

7) Weight: 0.8kg (include the antenna, battery, power adaptor
