| Prod Model: |
GPS303 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Three Modes: |
Tracker, Monitor and Call |
| Apllication: |
Vehicle Fleet/Logistics/Motorcycle/Bike |
| Frequency Band: |
850/900/1800/1900MHz |
| OEM Or Not: |
Yes |
| Fuel Monitor: |
Yes |
| SD Card Slot: |
Yes |
| Packaging: |
40 Unit /Carton Standard Color Box |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Model: |
Tk303 |
| Brand: |
Coban / Baanool |
| Certification: |
ISO9001 |
Product Description
GSM/GPRS/GPS Tracker gps303 for Car Motorcycle Stop Engine Remotely
Model: GPS 303
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
2.
Features1. Handheld and Vehicle purpose.
2. Built-in GSM, GPS antenna, compact, elegant appearance.
3. Support GPS and LBS (Location based service) double tracking solutions.
4. Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
5. Support configure the settings remotely
6. Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
3. Fuctions
-Auto track continuously
-Automatic update positions of vehicle turns
-Location based service (LBS)
-Voice Monitor
-Low battery alarm
-External Power off alarm (Suitable for B, C and D model)
-GPS blind Spot alert
-SOS
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-ACC working alarm (Option, for model B, C, D)
-Fuel alarm (Option, for model C, D)
-Remote cut off the Oil and Power System (Option, for model C, D)
-Function of Remote Controller (Option, for model D ONLY)
-Check the Vehicle State
-Reset Hardware
-Sleep Mode(save battery mode)
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting/tracking

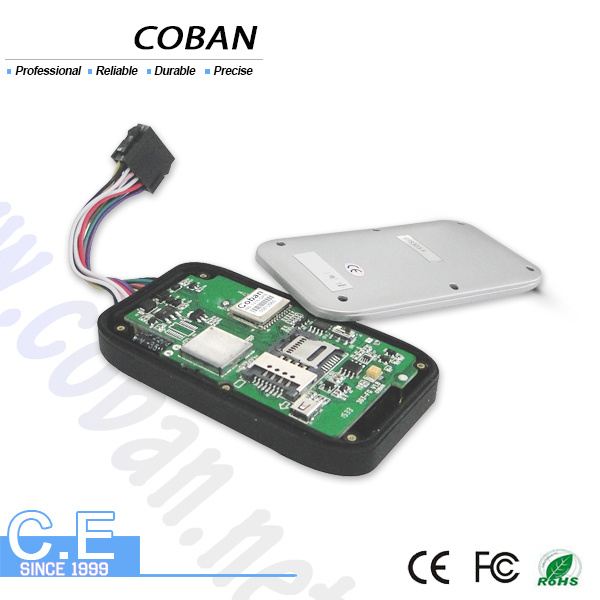

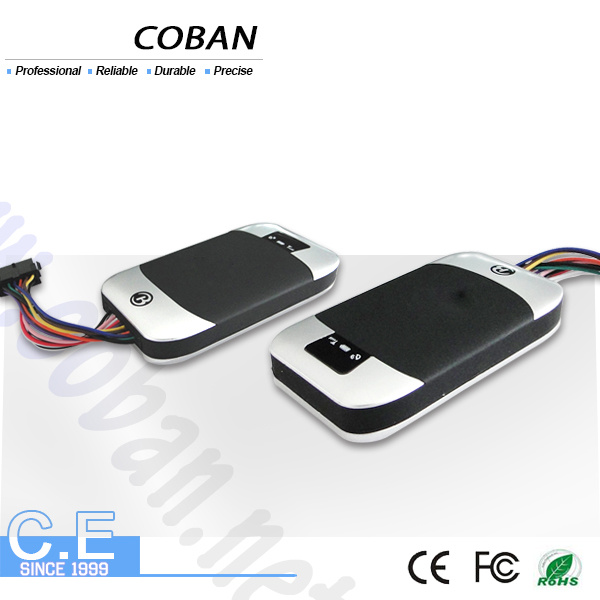

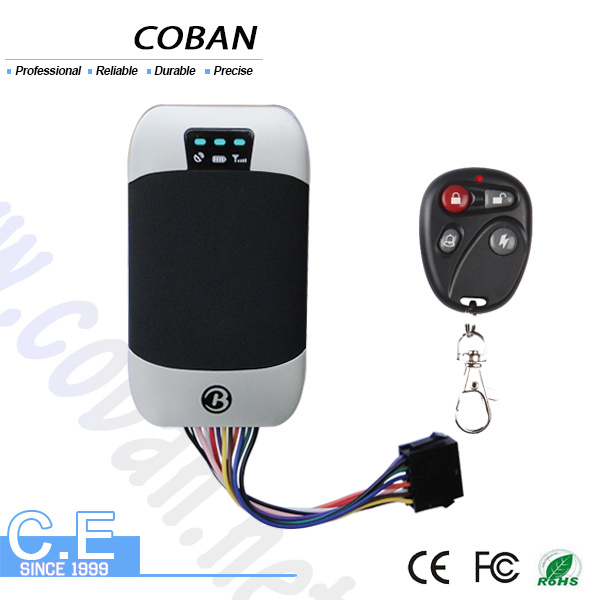

Product picture:
| Content | Specification |
| DIM | 8.9×5.0×1.6cm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

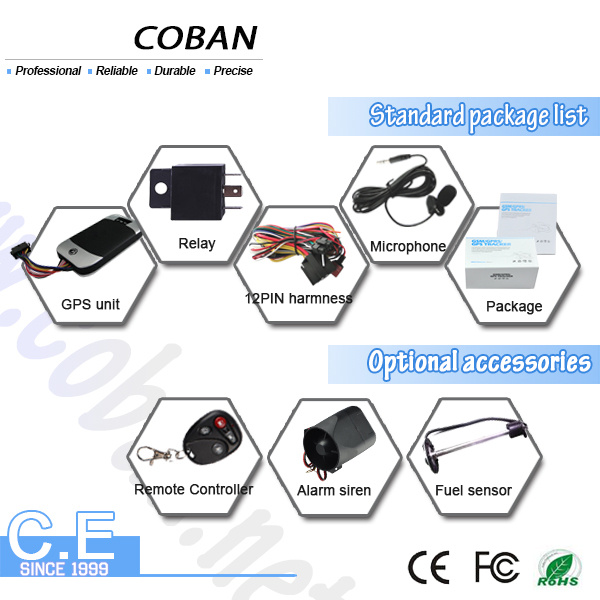

Standard packing:
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
