| Prod Model: |
GT08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Frequencies: |
1575.42MHz C/a (GPS) |
| Working Voltage: |
+6.0 to +36VDC |
| Working Temperature: |
-20 to 70 Centegrade |
| Receiving Sensibility: |
-162dBm |
| Size Of The Main Unit: |
62*50*22 (Mm) |
| Weight Of The Main Unit: |
0.26kg |
| GPS Chip: |
Latest Sirf-Star III Chipset |
| GSM Frequencies: |
850/1900/900/1800 MHz |
| Receiving Ways: |
20 Channel |
| Positioning Accuracy: |
<= 10m (Wide-Open Area) |
| Type: |
GPS Vehicle Tracker |
Product Description
Real Time Tracking GSM / GPRS / GPS Vehicle Tracker (GT08-D)
We are manufacturer of GPS tracker, GSM car alarm system, GPS Vehicle tracker, wireless GSM alarm, Mini GPS tracker & other GPS Tracking Device.Our GPS Vehicle tracker acts as a normal & GPS tracking device.It is much better than normal two-way car alarm.It is not only an advanced car alarm, but also a precise GPS tracking system.
This Mini GPS Vehicle Tracker is the most cost-effective tracking device to track your vehicle.It has very small size, so it can be installed in very secret place.The installation & usage is very easy.
*1.GPS Tracker Features:
1.Track on command or by time interval or by distance.
2.Arm/disarm by SMS or phone call.
3.Check the car's real physical address (such as city name, street name...(need support of the TS01 or TS03 center);
4.Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5.Check the location directly by the Google map's URL;
6.Online website tracking by GPRS data network;
7.Odometer function
8.Over-speed alert, Geo-fence alert;
9.Movement alert which can be used as an alarm.
10.Voice monitoring.
11.Cut off engine to stop the car safely by SMS/GPRS;
12.Built-in motion sensor for power saving & triggering alarm
13.Built-in rechargeable backup battery;When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14.Support firmware upgrade on air remotely.
15.Support SOS button(optional)
16.Support analog input for fuel monitoring(optional)
17.I/O:3 inputs and 1output
18.It can upgrade the normal car alarm with remote alarm function.
19.Compact size with water-proof design
20.Wide working voltage range, from 5V-36VDC, suitable for motorcycle, car or big truck.
Topten Electronics Technology Limited is a leading manufacturer which is specialize in GPS tracking system with car alarm functions.We provide good solution for motorcycle, vehicle, truck and ship tracking and security, and have more than 7 years of experience in selling products to all over the world.
*2.SMS report in different languages:
English, Arabic, Spanish, Portuguese.

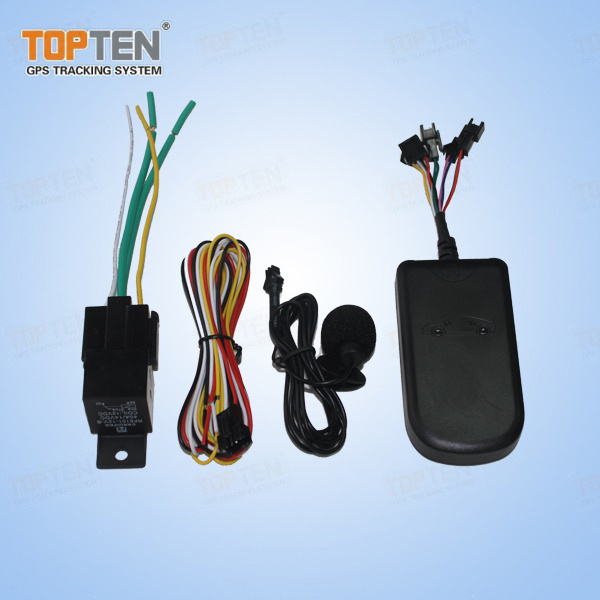

*3.Standard packing list for Car GPS Tracker:
Main unit 1PC
4pin wiring 1PC
12VRelay 1PC
Micphone 1PC
Manual 1PC
*4.Free Online Tracking Functions:
You can track the car's location online, live track, history play back for the pass 3 days, operate the cars by website such as stop engine, set time interval, view all types of alarm & report.etc
We can provide free software tracking service, you can have a private account to manage your car online, it's very convenient.Move over, when you sell out the trackers to your clients, you can create many accounts for your clients.There, you are master account, you can see and mange your clients' accounts.
| FAQ | Troubleshooting |
| I call the tracker, it does not ring | 1) The GSM SIM card has no credit;
2) The SIM card is protected by PIN code;
3) Check the power supply, if 2 LEDs flash;
4) The SIM card is placed correctly in the slot. |
| I call the tracker, it rings, but it doesnot response with SMS | 1) The user password is wrong , please use the correct password or reset the password to test;
2) Low power, please use outside power supply to power on the unit to test. |
| I can not get the alarm message | 1) The SIM card inside the device has no credit;
2) The Alert-received mobile number is not programmed correctly, or the SMS command is not in correct format.
3) The mailbox of the user's mobile is full; |
| I can not get the correct GPS coordinates or the location is wrong | 1) Please make sure there is no metal obstacles above the tracker. Please place the side with GPS antenna upside to the sky.
2) Please check it at broad place.
3) Please check if the GPS LED flash once every 3 seconds;place the tracker to other place, so as to make sure that it can receive the gps signal well.
4) In cloudy condition,it is a little hard to get the GPS signal, and the GPS coordition might have some errors. |
| Tracker fails to connect to server by GPRS | 1) The SIM card must be activated with GPRS function;
2) Do the correct setting for GPRS connection. |
