| Prod Model: |
101 |
| Installation: |
Plug Into Home Power Socket |
| Item Type: |
Intelligent Socket |
| Communication Interface: |
Wireless |
| Rated Current: |
10A |
| Rated Voltage: |
110V-220V |
| Rated Power: |
Less Than 2200W |
| Rated Frequency: |
50Hz |
| GSM Frequency: |
GSM850/900/1800/1900 Quad Band |
| Remote Control: |
by Phone Call or SMS |
| Grounding: |
Non-Grounding |
| Type: |
Without Switch |
| Application: |
Residential/General-Purpose |
| IP Rating: |
IP56 |
| Function: |
GSM,Remote Control |
| Brand: |
Shuntong |
| Number Of Holes: |
3 |
Product Description
Name :Gsm Power Socket Switch Based Sim Card Sms Call Remote Control for Smart Home Automation.
Model No. 101 gsm remote control power switch
*SMS/Free Call Control Relay On or Off via On/Off Command
*SMS/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on or off to on (0.5 to 9 seconds), then back to off via T and XL Command.
*Timed control other electric devices from on to off (001 to 255 minutes), then back to on or off to on (from 001 to 255 minutes), then back to off via SMS L Comand
Power plug type for option: EU, UK Default: EU type
Applications:

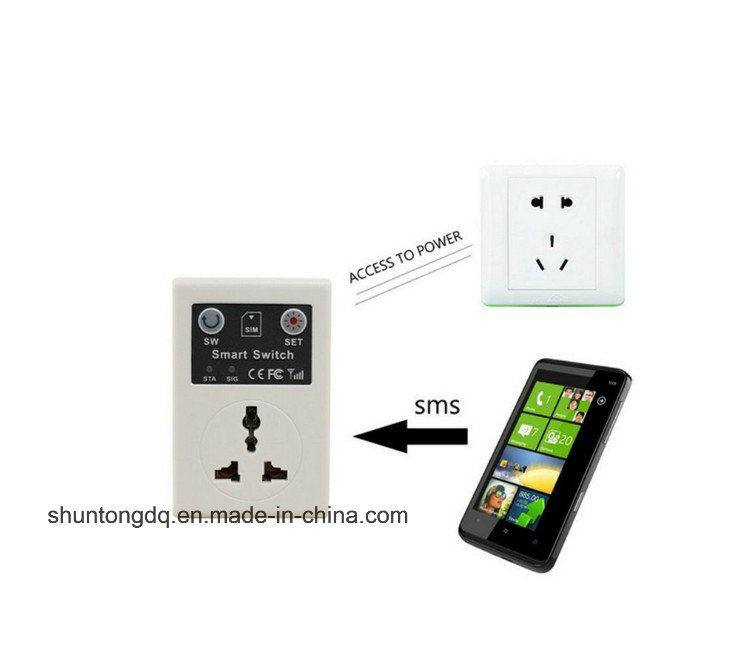

You can control the GSM switch through phone call or SMS.It can control water heaters, electric motors, electric doors, lights, rice cookers and other appliances.Whether you're on the road or in the office, easy and low-cost to control remote appliances:
Wireless remote water pump
Control the rice cooker in the office
Wireless control lights, fans
Wireless control power, audio and other equipment
Feeding the family pet via the GSM switch
Other household or industrial control applications
Specification of remote switch gsm
GSM frequency: GSM900/1800MHZ
Rated voltage: 110V-220V
Rated current: 10A
Rated frequency: 50Hz
Rated Power: less than 2200W
Inherent power: less than 0.2W
We have EU,UK power plug for your option. The default type is EU plug
User Instructions:
A.Basic setup and operation
1.Install SIM card Installed your SIM card before power on, non-installed SIM card after power on!A short initialization time (20 seconds) after power on, related operations after initialization. GSM switch is disconnected by default.
2.Waiting for SIM card to connect the GSM network (according to local operators and signal level, usually about 1 minute to get into the network), and observe the SIG lights on the panel (the start is 1 second flash), when flash becomes 4 seconds, the proof has entered the GSM network, Then you can set and control the associated operation.
3.Set Password Must set up the user password first, GSM switch initial password is: 0000. Set Password command format: "SN +Four old password + NEW + Four new password. " For example, customers want set their passwords to : "1234", then he should edit the message content: "SN0000NEW1234" issued to GSM switch, if you set successfully, you will receive the message: "NEW SN SETOK NEW SN IS 1234 (New password). "The password with the power-down memory function.
4.Set master number GSMSW-A1 owners can set up 5 groups of master numbers, The seting format is: "SN +****(password) + SET + master numbers",send to the number of GSM switch, you can set the master numbers, such as the user's password is 1234, trying to set 13788889999 to master number, and then edit the message content: "SN1234SET13788889999" issued to GSM switch, if successfully,you will receive a message: "13788889999SETOK". Only the master number can control the outlet by dialing, when the master number dial number of GSM swithch, the switch status will change, and then hang up automatically after one second, does not produce any cost. master numbers with a power-down memory function.
5.Ringing to control Users control the GSM switch by dial the number of GSM switch, when get through the socket state change and hang up after 1 second. The user may hear "You can not answer the phone call, beep ... tone, etc., that set has been successful. If the switch is connected,it will change to disconnected state after a call.If the original state is off, call and changed to the connected.
B.SMS Control
1.SMS change switch status:Edit message "SN +****(passwords) + CHANGE "to sent to the GSM swithc, can change the status,when control is successful, GSM switch will return the current status. [For example: the password is 1234, edit text: SN1234CHANGE, sent to the GSM switch]
2.SMS check switch status: Edit message "SN +****(passwords) + CHECK "to sent to the GSM swithc, can change the state,when control is successful, GSM switch will return the current state. [For example: the password is 1234, edit text: SN1234CHECK, sent to the GSM switch]
3.SMS turn on switch: Edit message "SN +****(passwords) + ON "to sent to the GSM swithc, can change the state,when control is successful, GSM switch will return the current state. [For example: the password is 1234, edit text: SN1234ON, sent to the GSM switch]
4.SMS turn off switch: Edit message "SN +****(passwords) + OFF "to sent to the GSM swithc, can change the state,when control is successful, GSM switch will return the current state. For example: the password is 1234, edit text: SN1234OFF, sent to the GSM switch.

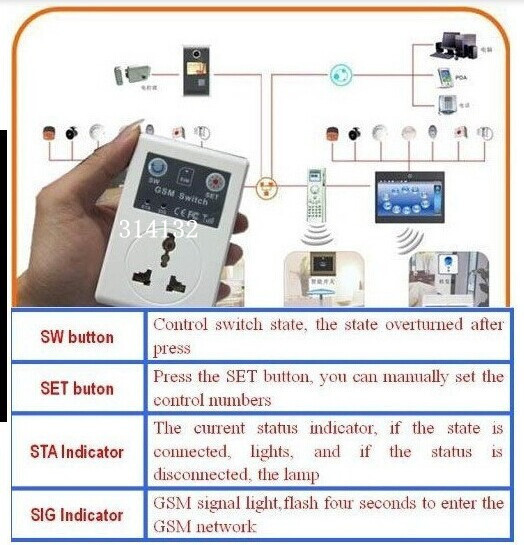

C.Key Control (GSMSW-A1 panel has two buttons, one is SW, one is SET.)
1.Control switch status When you press the SW button, switch state will be overturned. If the original state is connected, then turned off . If the original into Shutdown mode, GSM plug into connected.
2.Set master number When you press the SET button, the SIG lights will enter the flash state,about 90 seconds,The numbers plug into the GSM switch will be set to the master number during this time. When GSM switch during this period received a call comes in, it will hang up after 1 second call, and stop flashing SIG lights into the normal state,and new master number will be saved, with power-down memory.
3. Reset the system When the SW and the SET key pressing in the same time, reset the system. The system will restore the factory settings, STA lights flash slowly three times, 5 groups master numbers will be clear, the relay will enter the off state, the password also changed the factory code (0000).Set this function when the forgotten password or special circumstances.(Note: must press two button in the same time, Otherwise, do not enter the rest)
Feature:
1.100% tested before delivery.
2. Guarantee the prompt delivery. The goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3. We are glad to makes samples according to our customers' drawing, specifications and samples.
4. OEM is available.
5. Free to contact us, we can offer you the best service, top-quality goods, competitive price and timely delivery.
Shipping And Payment Terms:
Delivery Time: 3-30 Days Based On Finally Order Quantities
Payment Terms: TT /L/C
Less Than 3000USD. 100% TT In Advance
More Than 3000USD, TT30% Deposite, The Balance See Copy Of B/L
Bigger Order: TT Or L/C
Our Service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized product we can help you to design and produce
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. All the products must through 24 hours aging before delivery to ensure the quality again.
