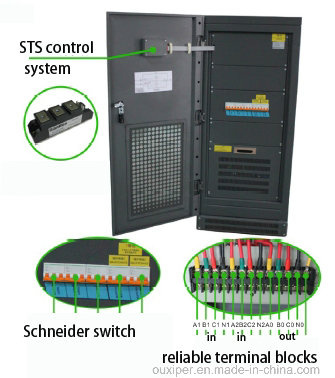

Gsts33-40AMP 380VAC 4 Pole Automatic Transfer Switch

Name: Gsts33-40AMP 380VAC 4 Pole Automatic Transfer Switch
Brand: all-electronics-online.com
SKU: 804810155
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSTS33-40A
Machine Size:	6006001400mm
Transfer Time:	5ms

Product Description

GSTS33 series Technical parameters:
M1 Input voltage: 230V-380V;
M2 Input voltage:230V-380V ;
Output voltage: 230V-380V;
Input voltage frequency: 50Hz/60Hz;
Rated output current: 25A/32A/40A/63A/100A
Output overcurrent: 110%;
Output efficiency: ≥ 98%;
The fastest load transfer capability: Standard: 6ms;
Electricity Environment: The same phase, the different phases;
Priority: Set their own;
Switching modes: Auto, Manual;
Cooling: Air-cooled;
Highest temperature: <60 ºC;
Working temperature: 0-40 ºC;
Relative humidity crossing: 0-90% (non-condensing)
Installation Altitude: <1000 m.
Machine Size: LWH:600*600*1400mm
Package size: LWH:640*640*1550mm

GSTS33-Series Main Technical Parameters:
Model		GSTS-3325	GSTS-3332	GSTS-3340	GSTS-3363	GSTS-33100
Standard Volume		16.5KW	21KW	26KW	41KW	66KW
Rated Current		each phase 25A	each phase 32A	each phase 40A	each phase 63A	each phase 100A
Switch Time		≤5ms
Output Interface		Cable row
Priority		Automatic setting
Input	Scope of input voltage of M1circuit	230VAC/380V
	Scope of input voltage of M2 circuit	230VAC/380V
	Scope of input frequency	50HZ-60HZ
	Power environment	Same phase and different phases
Output	Scope of output voltage	230VAC/380V
	Output over current	110%
	Output efficiency	≥98%
Management	Status display	Display of LCD electric quantity parameters, display of LED status
	Interface management	RS232 interface/interface of dry contact
	Software	X
Protection	Power surge protection	Input M1/input M2
	Communication surge protection	RS232 interface
	Overload short circuit protection	Over current short circuit protector
Standard Recognition	Design and production	ISO9001:2000
	Safety certificate	EN50091-2,IEC60950
	Electromagnetic compatibility	EN50091-2,EN61000-3-2,EN6000-4-2/-3/-4
Environment	Environmental temperature	-30°C----+60°C
	Environmental humidity	0%-90%
Physical property	Size of machine	600×600×1400mm
	Size of package	640×640×1550mm

After-sale Service:
1).All products will be strictly Quanlity Checked in hours before packing
2).All products will be packed before shipping
3).All products have warranty for one year.
