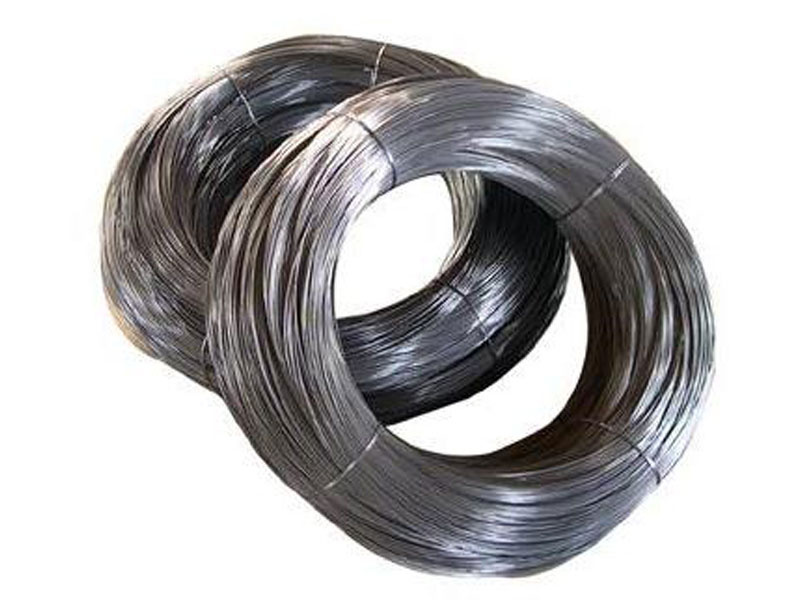

Gsw Cable for Galvanized Steel Wire Guy Wire Stay Wire with ASTM A475
| Price: |
US $ 1450-1500/Ton |
| Min Order: |
2/Ton |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
3/8'' |
| Coated Material: |
Galvanized |
| Type: |
Bare |
| Conductor Type: |
Solid |
| Application: |
Overhead |
| Certification: |
CE |
| Conductor Material: |
Galvanized Steel Wire |
| Sheath Material: |
None |
| Insulation Material: |
None |
| Range Of Application: |
Overhead |
| Brand: |
Jinyuan |
Product Description
GSW cable for Galvanized Steel Wire/ Guy Wire/ Stay Wire with ASTM A475
Construction:Guy Wire is composed of galvanized steel wires in various strengths and zinc coatings,Finish Coatings : Class A, B and C and Aluzinc (5% Aluminum and 95% Zinc).Combine the strength of high carbon steel wire with the excellent corrosion resistance of Class A, ASTM B6 High Grade, hot-dip zinc coating. Add a long history of service to the transmission industry, the pre-engineered building industry, the construction industry, and municipalities and you get strand that you can count on year after year. Applications:The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike. Messenger Wire, Overhead Ground or Static Wire, Guy Wire. Specifications:GSW meets or exceeds the following ASTM specifications: • ASTM A-363 Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand• ASTM A-475 Zinc-Coated Steel Wire Strand
• ASTM A-925 -5 % Aluminum-Mischmetal Alloy-Coated Steel Overhead Ground Wire Strand
• ASTM A-855 Zinc-5 % Aluminum-Mischmetal Alloy-Coated Steel Wire Strand
• ASTM A-640 Zinc-Coated Steel Strand for Messenger Support of Figure 8 Cable.
Aluminum-Clad Steel Wire to ASTM B 415 ,
el wire | Nominal diameter | Cross-section
mm2 | Min. tensile
strength
MPa | Calculated
breaking load kN | Min. coating
thickness
mm | Max. DC
resistance
at 20ºC,Ω/km | Approx. weight
kg/km |
| mm | AWG |
| 2.052 | 12 | 3.307 | 1340 | 4.5 | 0.103 | 25.64 | 21.80 |
| 2.304 | 11 | 4.169 | 1340 | 5.6 | 0.115 | 20.34 | 27.49 |
| 2.589 | 10 | 5.260 | 1340 | 7.1 | 0.130 | 16.12 | 34.66 |
| 2.904 | 9 | 6.633 | 1340 | 8.9 | 0.145 | 12.78 | 43.65 |
| 3.264 | 8 | 8.367 | 1340 | 11.2 | 0.163 | 10.14 | 55.14 |
| 3.477 | 7 | 9.495 | 1310 | 12.4 | 0.174 | 8.93 | 62.57 |
| 3.665 | 7 | 10.55 | 1280 | 13.5 | 0.183 | 8.04 | 69.48 |
| 3.934 | 6 | 12.16 | 1240 | 15.1 | 0.197 | 6.93 | 80.13 |
| 4.115 | 6 | 13.30 | 1210 | 16.0 | 0.206 | 6.38 | 87.62 |
| 4.392 | 5 | 15.15 | 1170 | 17.7 | 0.220 | 5.60 | 99.84 |
| 4.620 | 5 | 16.76 | 1140 | 19.1 | 0.231 | 5.06 | 110.50 |
| 4.775 | 4 | 17.91 | 1100 | 19.7 | 0.239 | 4.73 | 118.0 |
| 5.189 | 4 | 21.15 | 1070 | 22.6 | 0.259 | 4.01 | 139.34 |
Galvanized Steel Wire Stranded Conductor - GSW cable
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
