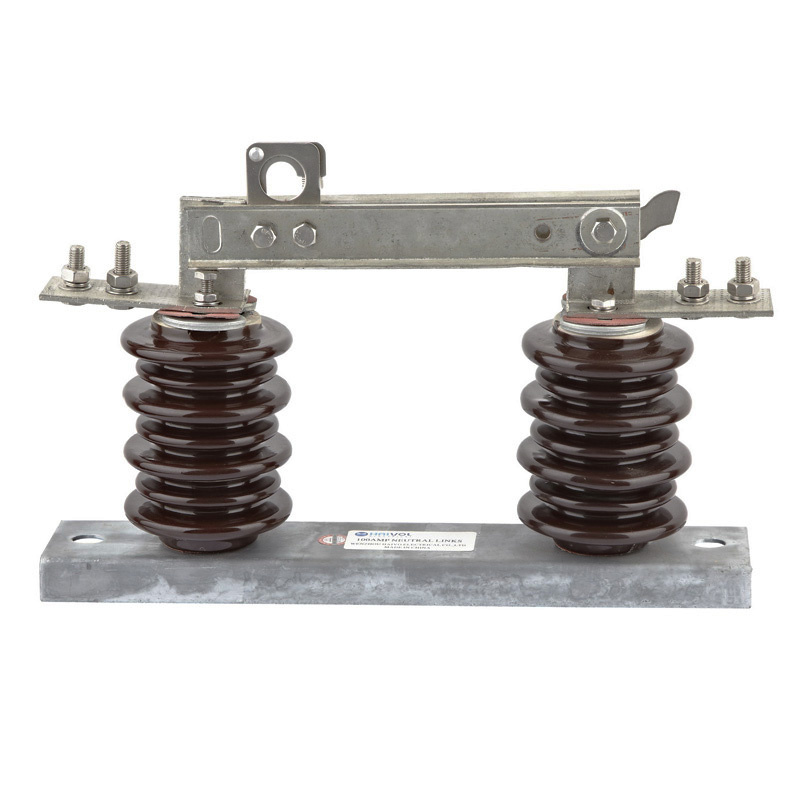

Gw9-10W Outdoor High Voltage 12kv Disconnect Switch

Gw9-10W Outdoor High Voltage 12kv Disconnect Switch
Price: Negotiable/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: GW9-10W
Type: High-voltage
Structure: Three-column Disconnector
Installation: Outdoor High-voltage
Operation: Manual
Grounding: Single Ground
Series: Three
Run: Vertical Rotation
Switching Mode: Single Throw-in
Brand: Haivol

Product Description

Specifications


Outdoor High Voltage disconnect siwtch
1.Rated voltage:12KV
2.Best price and short delivery
3.Ruch experience in export



Outdoor High Voltage disconnect siwtch GW9-10W

The "GW9-10W"type of outdoor high voltage isolator switch is the high voltage switch equpment of single phase AC 50Hz.The prducts is suitable for power system with rated voltage 12KV to make or break power supply under circumstances of with voltage and nomload.

The isolator is adopts islated hook rod to operate.





Technical Specification:

TypeRated
voltage
(KV)
Rated
current
(A)
4S Heat
steady
e.c
Shock
voltage
(A)
Impulse withstand
voltage
Power-frequency
withstand voltage
Relatively
earth
Between
fracture
Relatively
earth
Between
fracture
GW9-10W/20012200125003150075853842
GW9-10W/40012400125003150075853842
GW9-10W/63012630125003150075853842
GW9-10W/1000121000125003150075853842


Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
