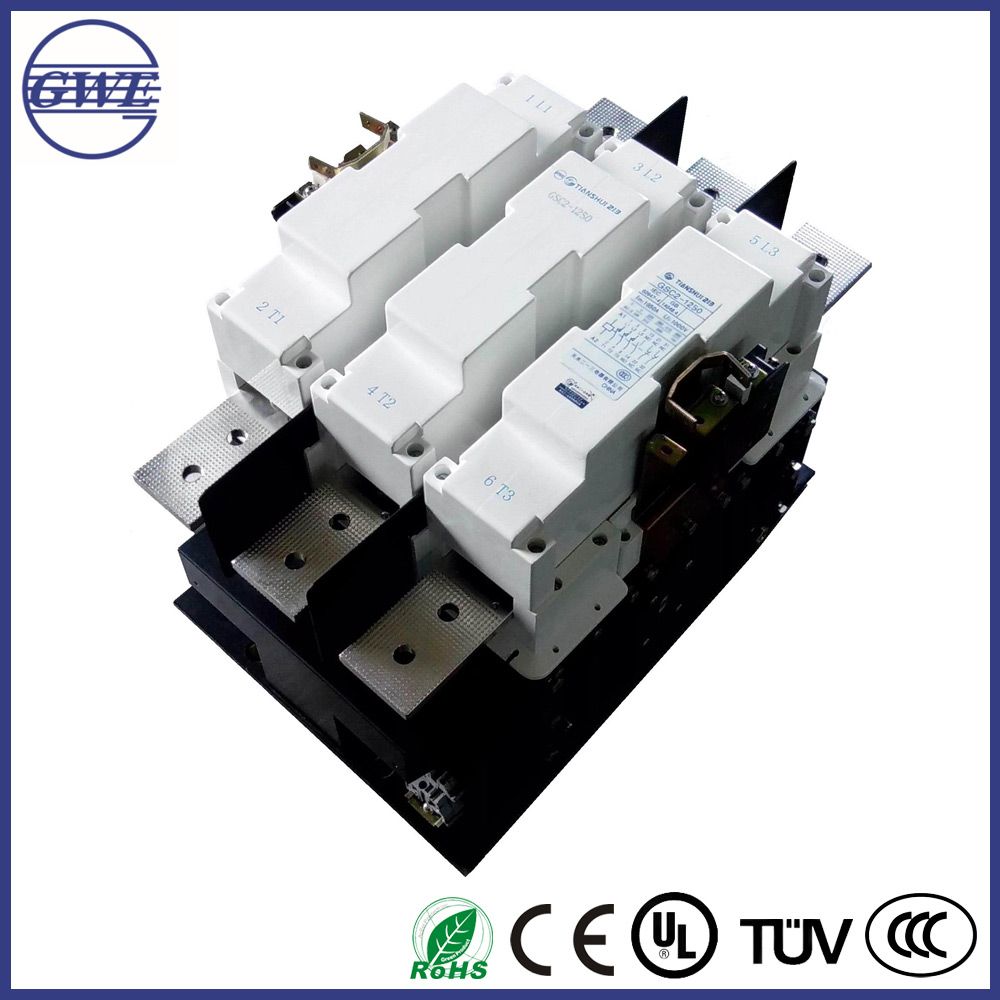

GWE AC Contactor Current for 1000, 1250 or 2000A

Name: GWE AC Contactor Current for 1000, 1250 or 2000A
Brand: all-electronics-online.com
SKU: 732013392
Availability: InStock
Rating: 4.7 (136 reviews)

Price:	US $ 20-600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSC2(GWE)

Product Description

type parameters						GSC2-1000	GSC2-1250	GSC2-2000
Rated insulation voltage Ui(V)						1000
Rated operational voltage Ue(V)						380,690
Rated insulation voltage(Ith(A)						1350	1650	2000
Rated operational current Ie(A) AC-1,θ≤40ºC						1350	1650	2000
Rated operational current Ie(A) AC-3				380V		1000	1250	-
				690V		575	725	-
Control motor power Pa(KW)AC-3				380V		560	650	-
				690V		700	800	-
frequency(h^-1)						300
Electrical life (AC-3,10⁴times)						10
Auxiliary contact	Rated insulation voltage(V)					690
	Conventional thermal current (A)					16
	miniature load					24V 10mA
	Rated operational current				AC-15	2A/380V
					DC-13	0.5A/220V
Coil parameter	Rated control voltage Us(V)					AC/DC 220
	Drop in voltage					0.85 Us ~ 1.1 Us
	Drop out voltage					0.2 Us ~ 0.75 Us
	Coil power (VA/W)		Drop in			2400VA/2100W
			keep			70VA/60W
Mechanical life(10⁴times)						100
Main circuit Wiring capability		Copper bar(mm)				60×10		80×10
		quantity				2		2
Auxiliary circuit(control circuit) Wiring capability		Soft wire				2.5mm²
		Hard wire				4mm²
		Wire quantity				1 or 2
Protection grade						IP00

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
