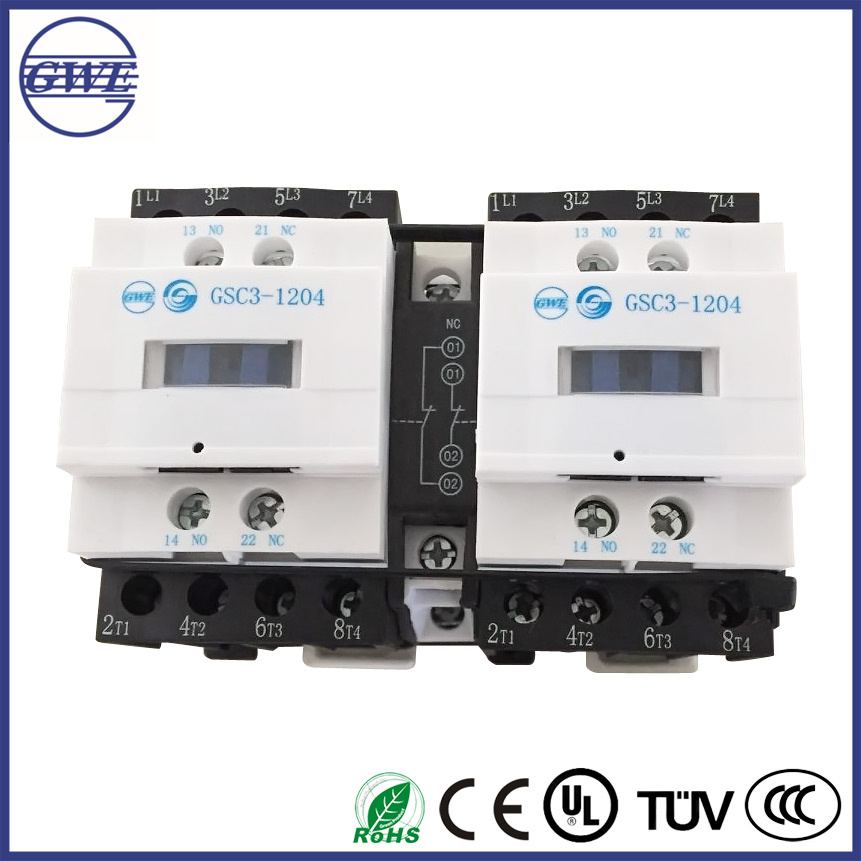

GWE Mechanical Interlocking AC Contactor GSC3-N Series

Name: GWE Mechanical Interlocking AC Contactor GSC3-N Series
Brand: all-electronics-online.com
SKU: 835405285
Availability: InStock
Rating: 4.9 (78 reviews)

Price:	US $ 29-180/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSC3-N (GWE)

Product Description

Type Parameter			GSC3 -09N	GSC3 -12N	GSC3 -18N	GSC3 -25N	GSC3 -32N	GSC3 -38N	GSC3 -40N	GSC3 -50N	GSC3 -65N	GSC3 -80N	GSC3 -95N
Rated Operational Current Ie A(AC-3)		380V	9	12	18	25	32	38	40	50	65	80	95
Rated Operational Current Ie A(AC-3)		660V	6.6	8.9	12	18	21	21.5	34	39	42	49	49
Rated Operational Current Ie A(AC-4)		380V	3.5	5	7.7	8.5	12	13.9	18.5	24	28	37	44
Rated Operational Current Ie A(AC-4)		660V	1.5	2	3.8	4.4	7.5	8	9	12	14	17.3	21.3
Conventional thermal current Ith A			25	25	32	40	50	50	60	80	80	125	125
Rated Operational Voltage Ue V			380 660
Nominal Insulation Voltage Ui V			690
AC-3 (6Ie,Ie)	Electrical Life 10⁴^times		80		50	60		40	60	50
AC-3 (6Ie,Ie)	Operation Frequency h^-1		1200		1200	600		600	600	600
AC-4 (6Ie,6Ie)	Electrical Life 10⁴^times		15		10	15		10	10	10
AC-4 (6Ie,6Ie)	Operation Frequency h^-1		300

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
