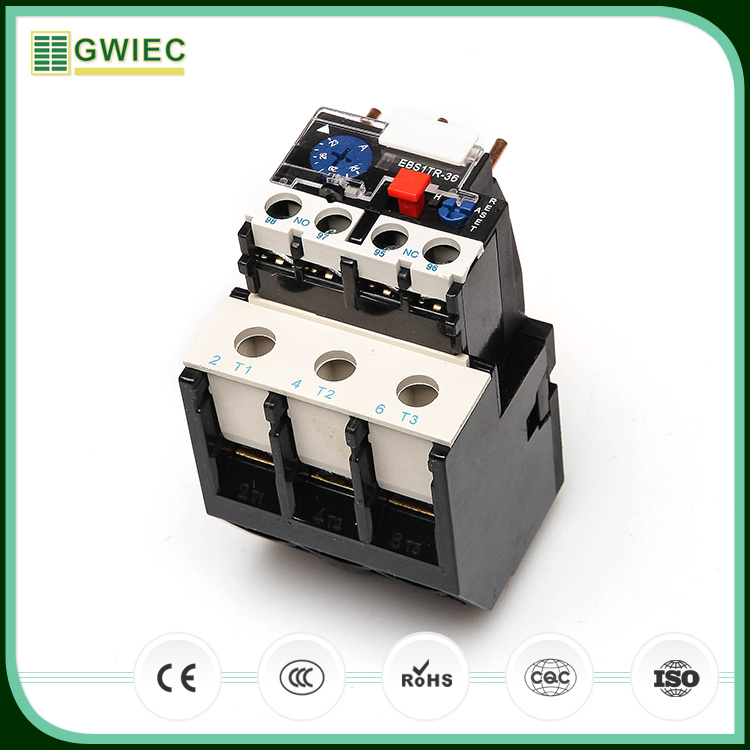

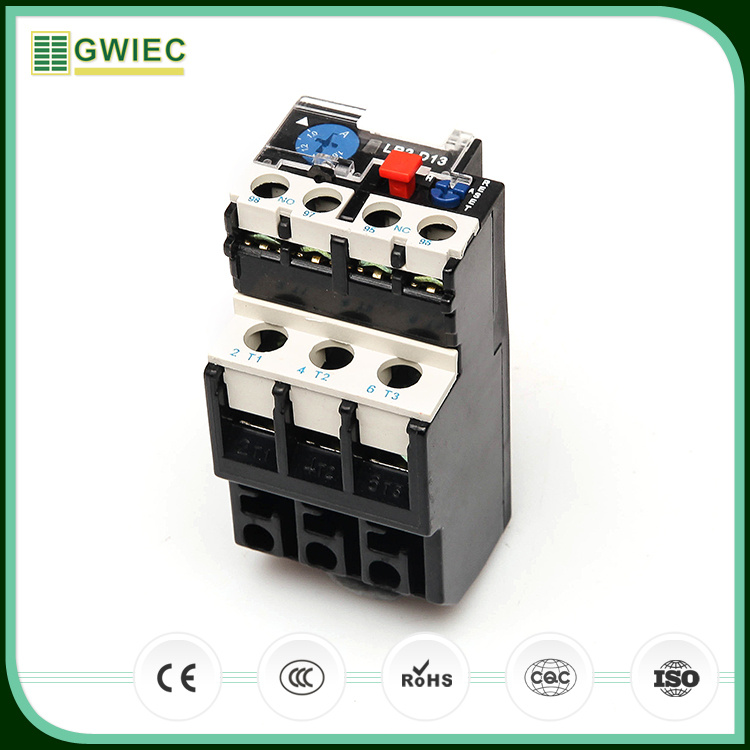

Gwiec Wenzhou China Factory Lr2-D33 Thermal Motor Overload Protector AC Relay 93A

Product Description

ThermaL Relay Application:

• This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-96A for protecting the phase break when the electric motor is overload
• The relay has different mechanism and temperature compensation & can be plugged in KLCI-D series AC contactor
• It is the most advanced thermal relay in the nineties in the world

ThermaL Relay Characteristice:

1. Fundamental parameter of the main circuit

• Rated insulation voltage 660V
• Rated working current 25, 36, 93A separately
• The regulator seal of rated setting current and setting

2. Auxiliary circuit

• There is one pair of NO/and N/C contact with electric insulation
• Rated insulation voltage 500V
• Rated frequency 50-60Hz
• Use group, rated working voltage, appoint thermal current and rated current.
•

• ThermaL Relay Specification:

  Type	Rated working current of thermal relay		Thermal component
  			Rated current(A)	Rated or scale of rated current (A)
  LR2-D13	25	LR2-D1301	0.2	0.10-0.16
  		LR2-D1302	0.3	0.16-0.25
  		LR2-D1303	0.4	0.25-0.40
  		LR2-D1304	0.6	0.40-0.63
  		LR2-D1305	1.0	0.63-1.0
  		LR2-D1306	1.6	1.0-1.6
  		LR2-D13X6	2.0	1.25-2.0
  		LR2-D1307	2.5	1.6-2.5
  		LR2-D1308	4.0	2.5-4.0
  		LR2-D1310	6.0	4.0-6.0
  		LR2-D1312	8.0	5.5-8.0
  		LR2-D1314	10.0	7.0-10.0
  		LR2-D1316	13.0	9.0-13.0
  		LR2-D1321	18.0	12.0-18.0
  		LR2-D1322	25.0	17.0-25.0
  LR2-D23	36	LR2-D2353	32.0	23.0-32.0
  		LR2-D2355	36.0	28.0-36.0
  LR2-D33	93	LR2-D3353	32.0	23.0-32.0
  		LR2-D3355	40.0	30.0-40.0
  		LR2-D3357	50.0	37.0-50.0
  		LR2-D3359	65.0	48.0-65.0
  		LR2-D3361	70.0	55.0-70.0
  		LR2-D3363	90.0	63.0-80.0
  		LR2-D3365	93.0	80.0-93.0
