Gy1910 Type 10 Pins High Pressure Connector for Oil Application

Name: Gy1910 Type 10 Pins High Pressure Connector for Oil Application
Brand: all-electronics-online.com
SKU: 835909385
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 23-26/Set
Min Order:	10/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GY1910
Size:	Gy1910
Number Of Contacts:	10 PCS
Contacts Size:	1mm
Item:	6p4s
Item1:	4p6s

Product Description

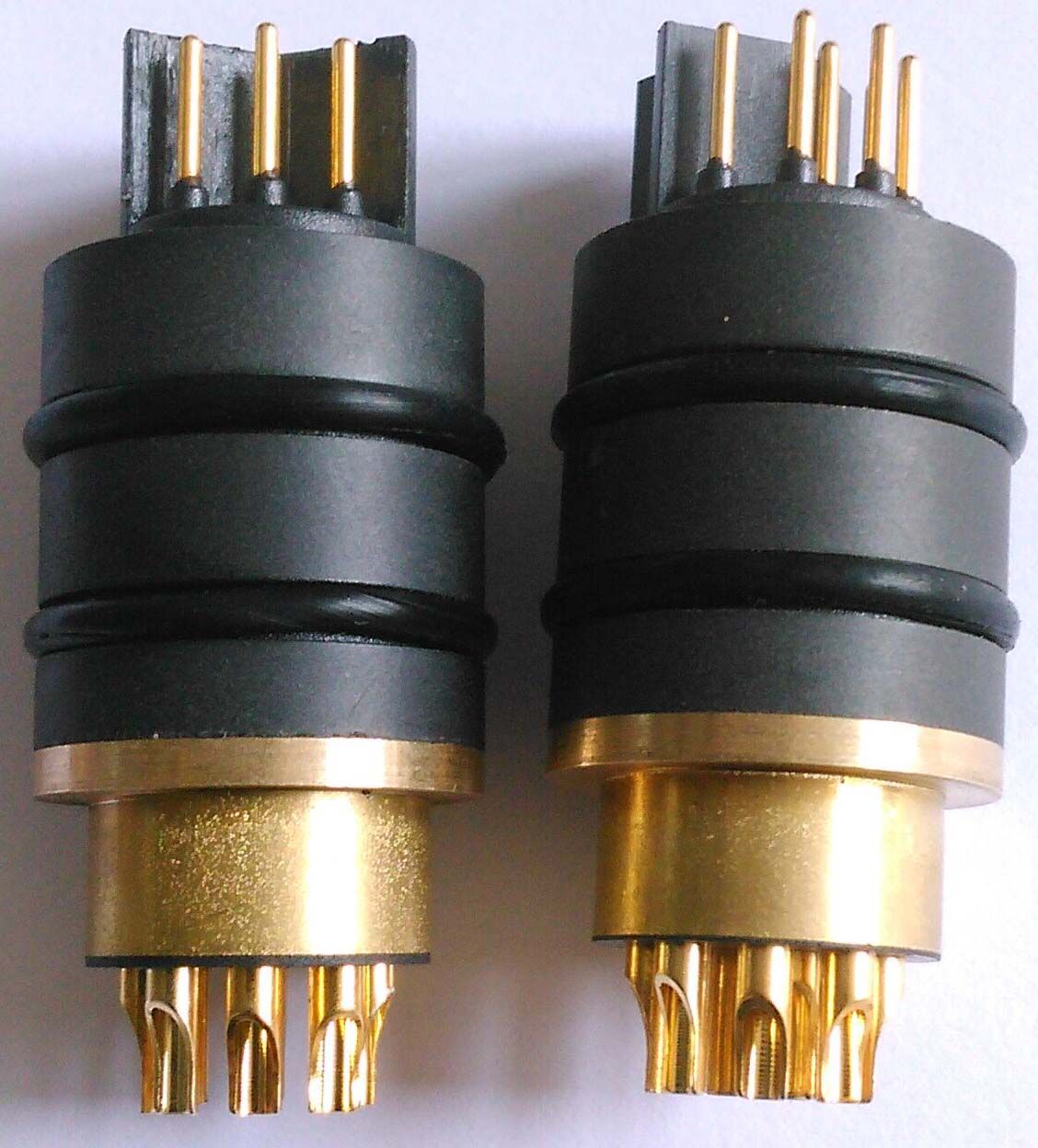

GY1910 connector have 10 pins, can pass high pressure. 70MPa.

It have white color or black color or copper sleeve.
GY1910 type connector use high tempreture plastic overmouding,It can Resist-100Mpa suddrenly socking pressure,it cab ne used between the equipment working in the tube.GY1910 have 3 type now,Plastic body,with one copper tube is the end and with 2 copper tubes in two side.

Product Ordering

GY / 19 -/6P4S /T1/B

        1 / 2 / 3   /4 /5
     1.Name:    GY type high air pressure resistance connector
     2.Shell type: 19mm OD
     3.Number of contacts: 10 pcs contacts,2 type:6P4S or 4P6S;
4.T1:Special type with one copper tube.TA:2 long contacts in the center;T2:Special type with 2 copper tubes;Without T: Only plastic body.
5.Plastic color:B:Menas black;W:Means white,G:Means grey.

Technical characteristics

Item	Temperature	Relative humidity	presure	Vibration	Shock	Endurance
Normal one	-55°C~ +125°C	90-95% at 40 Deg C	0.1Mpa-75MPa	10~1000Hz 196m/s²	490m/s²	500 cycles
Special-T	-55°C~ +150°C	90-95% at 40 Deg C	0.1Mpa-75MPa	10~1000Hz 196m/s²	490m/s²	500 cycles

Contact	Current	Voltage	Contacts resistance
1mm	5 A	250VAC	≤10mΩ

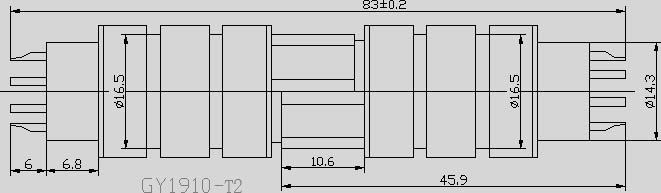

Dimensions and Overview

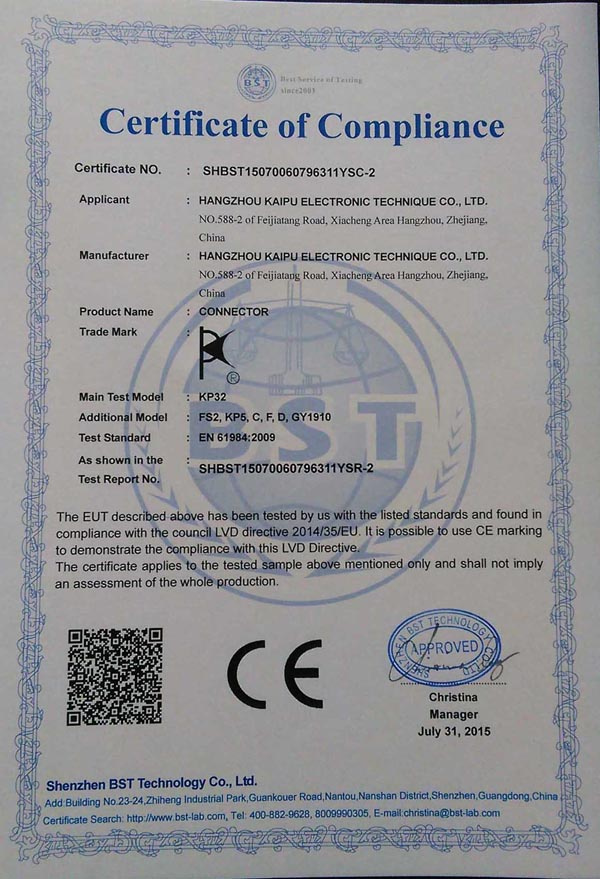

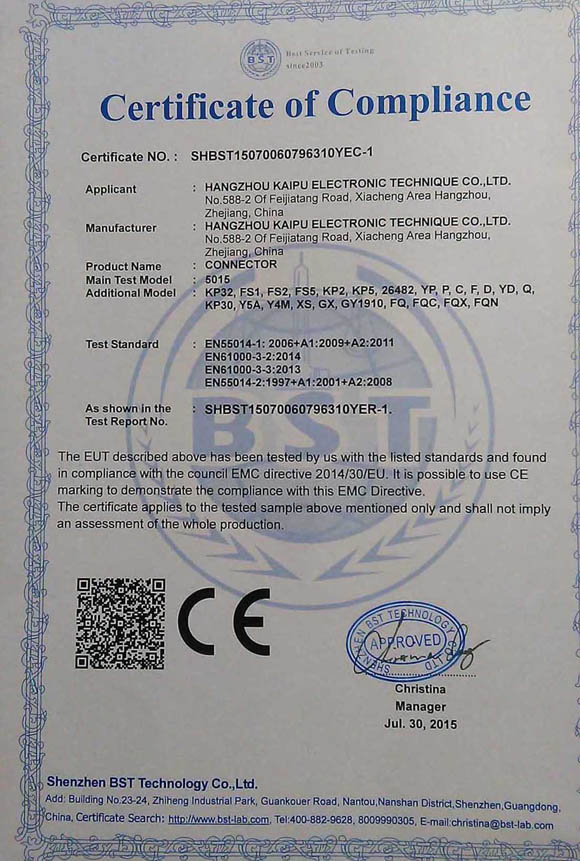

GY1910 CE certificates:

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
