Gydxtw Single Mode Direct Burial Optical Fiber Cable
| Price: |
US $ 0.36/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYDXTW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Central Strength: |
FRP |
| Model Number: |
Gydxtw |
| Water Blacking Material: |
Water Blocking Tape |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE |
| Number Of Conductors: |
>10, 2 to 288 |
| Color: |
Black |
| Cable Type: |
Single Mode |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Brand: |
Jinlong |
| Sheath Material: |
PE/HDPE/Lzsh |
Product Description
Gydxtw Single Mode Direct Burial Optical Fiber Cable
Packaging & Delivery

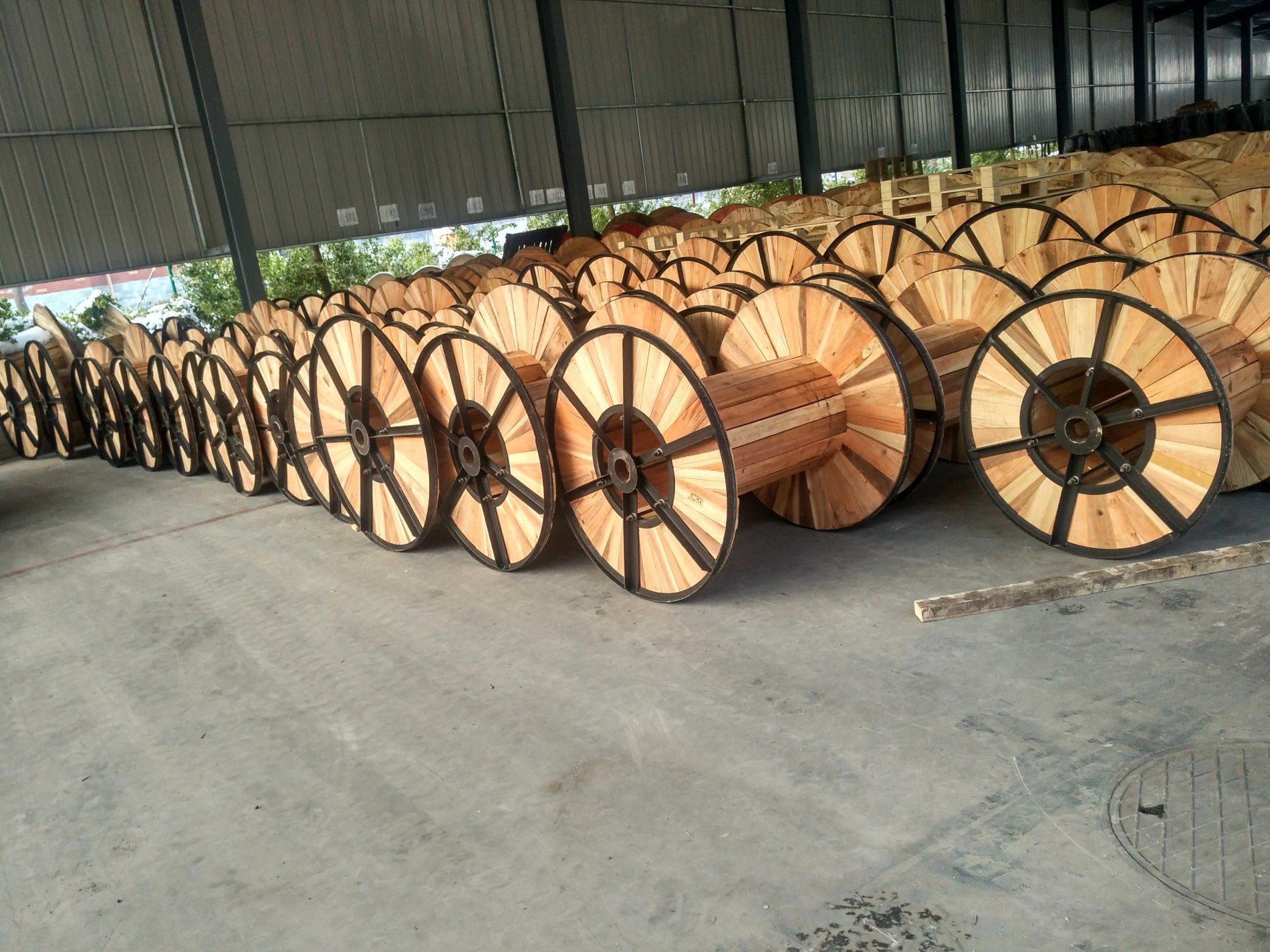

Packaging Details: Wooden Drum for long term shipping
Delivery Detail: 15~20 Days
Specifications
PSP- PE sheath with two parallel steel wires,
Used for duct & direct burial,
At network access,
Interoffice communication
GYDXTW
Metal Strength member, central tube type, gelly filled, PSP-Polyethylene(PE) sheath with two parallel steel wires, Outer door fiber ribbon optical fiber cable for telecommunication
Technical characteristics:
Selected high quality optical fiber ensure the optical fiber cable have excellent transmission properties.
The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties.
Very strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance.
Special jelly filled in the loose tube provides the fibers with critical protection.
Two round steel wires in parallel ensure cable mechanical property in tensile strength and crush resistance.
The fiber ribbon cable have lots of merits such as high dense, structure compact, easily to construction, easy to recognized, easily to distribution, time saving in link, easy maintenance save the cost of engineering, etc. At network access, interoffice communication and CATV area, have a wide range of applications. | Operating temperature range | -40 to +60 |
| Storage / Transport temperature range | -50 to +70 |
| Installation temperature range | -20 to +50 |
| Fiber | Max. fiber number | Total unit | Cable sheath thickness | Overalldiameter | Weight |
| number | per tube | number | (nominal*) | (nominal**) | (approx.) |
| | | (LT + FR) | mm | mm | kg/km |
| 24 | 6 | 5 (4LT + 1FR) | 1.8 | 10.1 | 115 |
| Fiber count | 24~72 | 84~96 | 108~120 | 132~144 |
| Fiber number per ribbon | 12 | 12 | 12 | 12 |
| Cable diameter | 14 | 14.9 | 16.2 | ~17.0 |
| Tensile strength(N) | 1500 |
| Crush resistance | Long term | 300 |
| (N/100mm) | Short term | 1000 |
| Bending radius | Dynamic | 20×D |
| Static | 10×D |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.

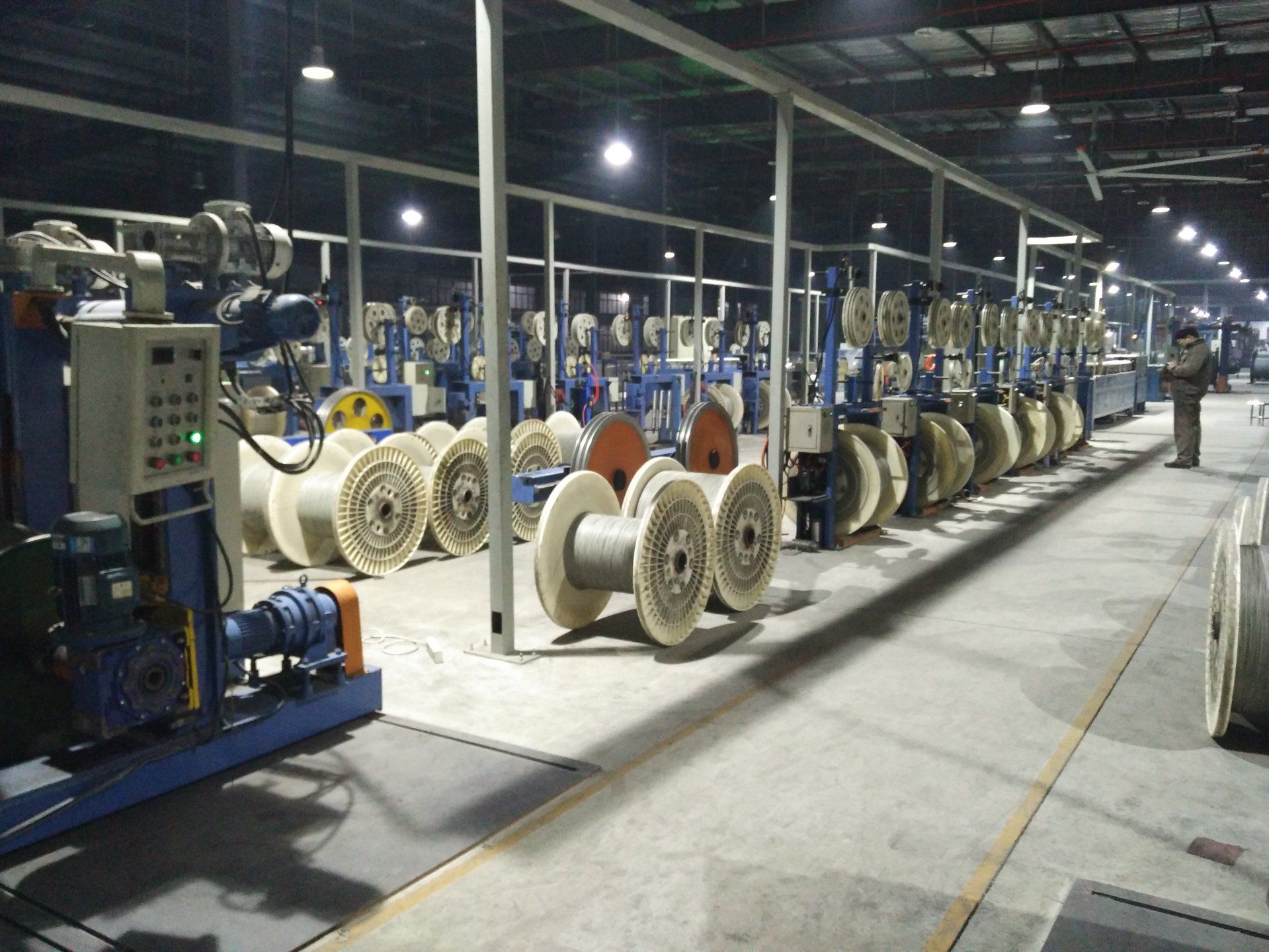

Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
