| Prod Model: |
GYFTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Central Strength: |
FRP |
| Model Number: |
Gyfta |
| Water Blacking Material: |
Water Blocking Tape |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE, Lszh or Plenum |
| Cable Type: |
Loose Tube Stranded |
| Number Of Conductors: |
>10,2 to 288 |
| Color: |
Black |
| Type: |
Single-mode Fiber |
| Application: |
Sensor |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
| Connection Structure: |
Joint Box |
Product Description
Packaging & DeliveryPackaging Details: Wooden Drum for long term shipping
Delivery Detail: 15~20 Days
SpecificationsGYFTAoptical fiber cable
Metal Strength member,
Loose tube stranded type
Gelly filled, for telecommunication
APL- Polyeth
Optical fiber cable GYFTAMetal Strength member, Loose tube stranded type, gelly filled, APL- Polyethylene(PE) sheath, Outer door optical fiber cable for telecommunication
Product DescriptionDescription:

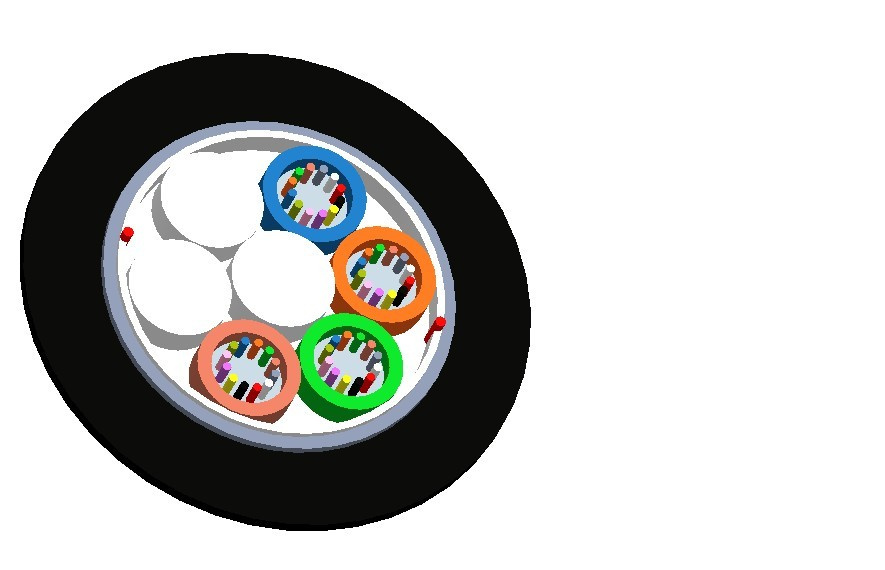

Loose tube style, optical fiber cable with non-metallic central strength member of FRP and peripheral strength members with moisture barrier inner sheathed. Cable protected by a black PE oversheath, suitable for duct or aerial application. Tubes contain optical single-mode or multimode fibers colour color coding scheme.
Applications:Usable in Duct or Aerial
Long-haul communication system
Junction communication systems
Subscriber network systems
Local area network systems
Technical characteristicsVery strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Total cross-section water-resistant structure and aluminum armor make cable have an excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
The central member adopted FRP has excellent tensile performance and flexible performance.
| Designation | Max. number | Steel wire/ stand | Stranded | Nominal cable | Nominal cable |
| Of fibers per tube | Diameter (mm) | units | diameter (mm) | weight (kg/km) |
| GYFTA-2-36 | 6 | 2.3 | 6 | 11.3 | 112 |
| GYFTA-38-72 | 12 | 2.8 | 6 | 12.8 | 144 |
| GYFTA-74-96 | 12 | 2.8 | 8 | 14.8 | 179 |
| GYFTA-98-120 | 12 | 2.8 | 10 | 16.7 | 225 |
| GYFTA-122-144 | 12 | 2.8 | 12 | 18.7 | 279 |
| Item |
| Characteristics |
|
| GYFTA-2-72 |
| GYFTA-74-144 |
| Tensile Strength | 1500N |
| 3000N |
| Crush Resistance | 1000N/100mm |
| During Installation |
| 20 Times Cable Diameter |
|
| After Installation |
| 10 Times Cable Diameter |
|
| Temperature Range |
|
|
|
| Storage |
| -50to+70 |
|
| Operating |
| -40to +60 |
|
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
