| Prod Model: |
GYFTA53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Central Strength: |
FRP |
| Model Number: |
Gyfta |
| Water Blacking Material: |
Water Blocking Tape |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE, Lszh or Plenum |
| Cable Type: |
Loose Tube Stranded |
| Number Of Conductors: |
>10,2 to 288 |
| Color: |
Black |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
| Connection Structure: |
Joint Box |
Product Description
Specifications
Direct buried optical fiber cable
Non-mentalic central strenth member
Double PE sheath
Aluminum & Steel tape armord
Direct buried optical fiber cable
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. Crush resistance and flexibility
6. PE sheath proteces cable from ultraviolet radiation
7. We can also provide OEM service, and the packing as customer's
Requirement.
Description

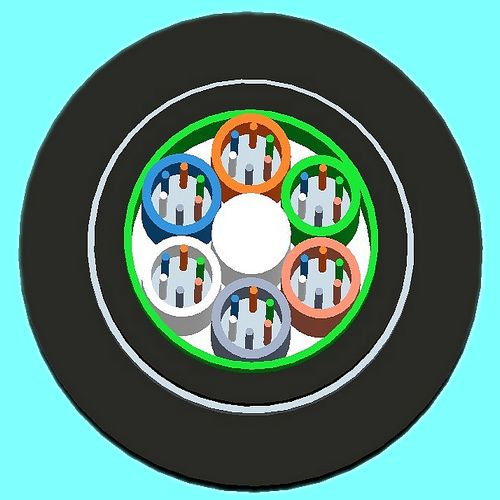

The fibers, 250μ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core.
An Aluminum Polyethylene Laminate
|
Designation |
Max. number |
Steel wire/ stand |
Stranded |
Nominal cable |
Nominal cable |
|
Of fibers per tube |
Diameter (mm) |
units |
diameter (mm) |
weight (kg/km) |
|
GYFTA-2-36 |
6 |
2.3 |
6 |
11.3 |
112 |
|
GYFTA-38-72 |
12 |
2.8 |
6 |
12.8 |
144 |
|
GYFTA-74-96 |
12 |
2.8 |
8 |
14.8 |
179 |
|
GYFTA-98-120 |
12 |
2.8 |
10 |
16.7 |
225 |
|
GYFTA-122-144 |
12 |
2.8 |
12 |
18.7 |
279 |
|
Item |
|
Characteristics |
|
|
GYFTA-2-72 |
|
GYFTA-74-144 |
|
Tensile Strength |
1500N |
|
3000N |
|
Crush Resistance |
1000N/100mm |
|
During Installation |
|
20 Times Cable Diameter |
|
|
After Installation |
|
10 Times Cable Diameter |
|
|
Temperature Range |
|
|
|
|
Storage |
|
-50to+70 |
|
|
Operating |
|
-40to +60 |
|
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
