GYFTC8Y Fig-8 Self-Supporting Aerial Fiber Optical Cable

Name: GYFTC8Y Fig-8 Self-Supporting Aerial Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 747748445
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 0.3/Meter
Trade Terms:	FOB,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTC8Y
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Place Of Origin:	Zhejiang, China (Mainland)
Model Number:	: Gyftc8y
Temperature Range:	: -40°c~+70°c
Number Of Conductors:	: 2-144
Fiber Type:	: Single Mode/ Multi Mode
Instalation:	: Aerial Self-Supporting
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Joinr Box
Material Shape:	Fig-8
Brand:	Jinlong
Sheath Material:	PE

Product Description

Specifications

GYFTC8Y,Optical fiber cable for outdoor, aerial application.
Optical Fiber Cable (GYFTC8Y)
Characteristics
1. High quality optical fiber provides good transmission performance
2. Accurate fiber excess length control ensures excellence mechanical and temperature performance
3. Strict craft and raw material control for cable stably operating over 30 years
4. The sturcture of all section water blocking and longitudinally armored with both side coated aluminum tape provide good performance of moisture-proof and water blocking
5. Special filling gel filled loose tubes provides optical fiber protection
6. High Young's modulus fiber reinforced plastic (FRP) as the central strength member
7. Figure-8 self-supporting structure has good tensile strength and allows easy aerial installation for installation cost savings

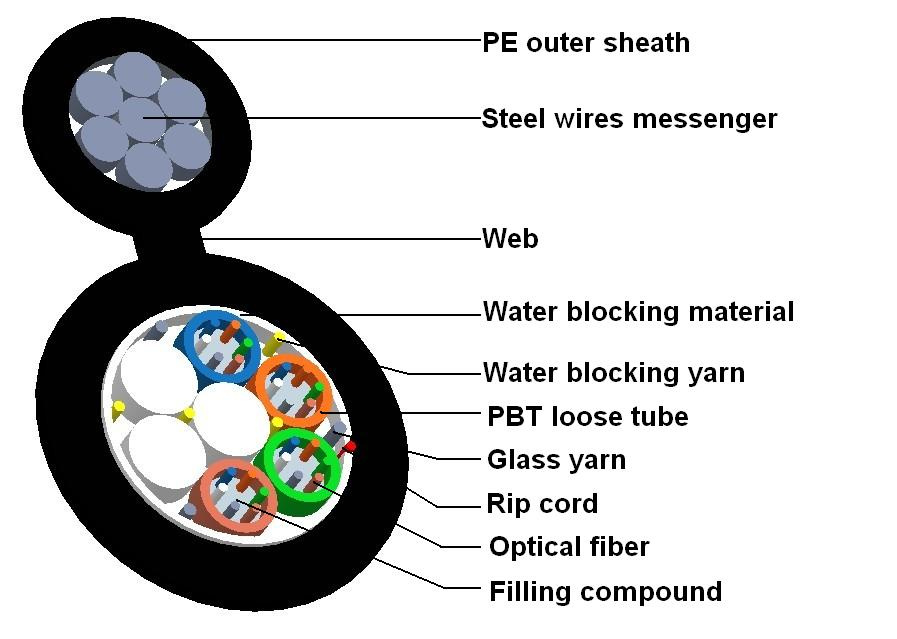

Structure
Central strength member (FRP)
PBT-made loose tubes
Water blocking tape & Integrated steel messenger
Figure-8 shape PE sheath
Configuration

No. of FibersDesignLoose Tube / Filler - Ø
mmCSM Ø
mmOuter Sheath Thickness
mmCable Diameter
mmCable Weight
Kg/km

2-305*61.91.52.09.4*17.4156

32-366*62.32.02.010.0*18.0170

38-605*122.31.82.018.6*10.6175

62-726*122.32.42.010.9*19.0185

Application: Aerial
Temperature Range
Transportation & Storage: - 40 to + 70°C
Minimum Bending Radius
Installation: - 30 to + 60°C
Under Maximum Tension: 20 x Cable-Ø
Operation: - 40 to + 70°C
Without Tension: 10 x Cable-Ø
Identification and Packing

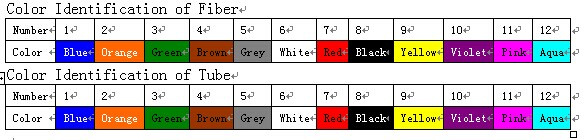

a. Fiber Colors & Buffer Tube Colors (acc. to TIA/EIA-598-A standards)
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Rose, Aqua.
Note: special color spectrum can be customized according to customer requests, but it must be clearly described in the order.
b. Sheath Marking: the outer sheath is marked in 1 meter intervals as follows:

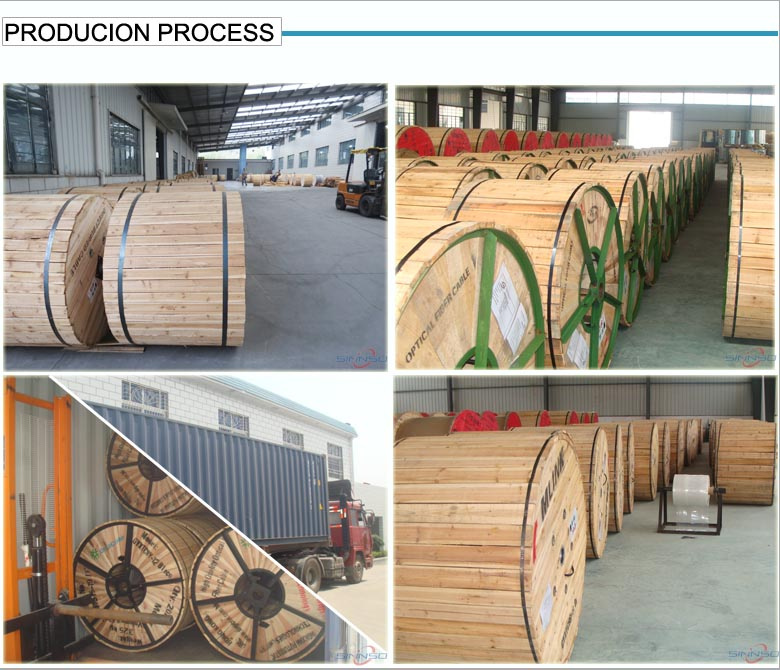

c. Packing: Wooden drums with protection.
d. Delivery Lengths: Standard delivery lengths are 2 km, 4 km, 6 km with a tolerance of - 1% / + 3%

Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.

Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.

Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.

Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.

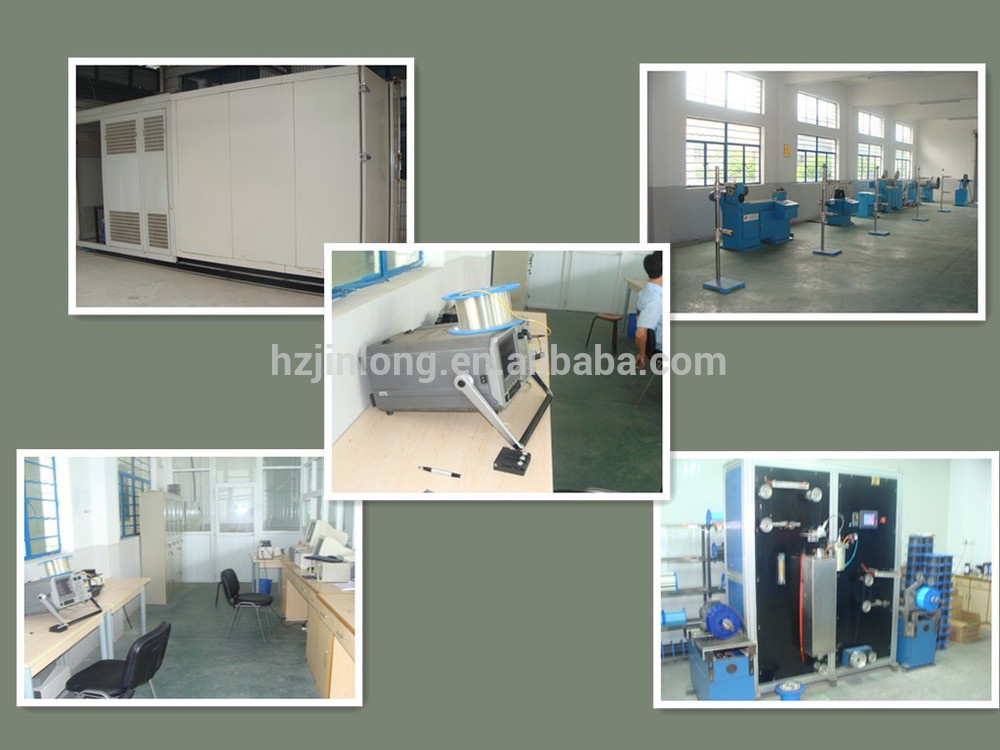

Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.

Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.

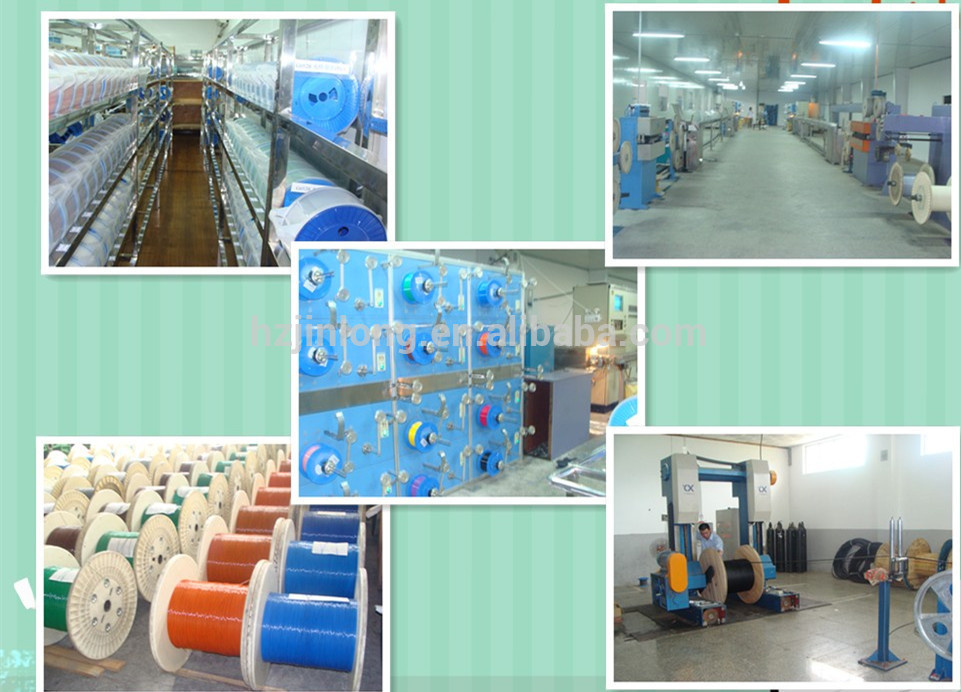

Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.

Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).

Please feel free to contact us for further information.
