| Prod Model: |
GYFTC8Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Quantity Of Fibers: |
2~288 |
| Number Of Conductors: |
≥ 10 |
| Messenger: |
7 Stranded Steel Wire |
| Model Number: |
Gyftc8y |
| Cable Type: |
Single Mode |
| Tube Type: |
Central Loose |
| Certificate: |
ISO9001 CE |
| Operating Temperature: |
-40 ~ +60 C |
| Color: |
Black |
| Type: |
Single-mode Fiber |
| Application: |
Sensor |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
| Connection Structure: |
Joint Box |
| Material Shape: |
Fig 8 |
Product Description
Packaging & DeliveryPackaging Details: Wooden Drum or Iron wooden drum
Delivery Detail: 15~20 Days
Specifications1. SM fiber G652D, Steel tape
2, High Quality cable
3, Factory price
4. OEM accepted
GYFTC8YThe fibers, either of single-mode or multimode type, are placed in a loose tube made of high modulus plastic. The tubes are filled with a water resistant filling compound. A FRP locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
After water blocking tape is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
FeaturesHigh tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
DescriptionØ Low dispersion and attenuation.
Ø Proper design, precise cotrol for fiber excess length and distinct stranding process render the cable excellent mechanincal and environmental characteristics.
Ø Anti-electromagnetism ability.
Ø Samall cable diameter, light cable weight, self-supporting, easily to install.
Technical characterisionVery strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
Figure-8 self-supporting structure, high tension strength, facilitate in aerial, low installation costs
Copper wires in the cable for electric communication.
| Fiber | Cable | Cable net | Min. bending | Min. tensile | Min. crush |
| count | dia.(mm) | weight(Kg/km) | radius(mm) | strength(N) | pressure(N/100mm) |
| |
|
| Static state | Dynamic | Short term | Long term | Short term | Long |
|
|
| state | term |
| 2~36 | 11.6 | 144 | 120 | 240 | 3000 | 1000 | 1000 | 300 |
| 38~60 | 12.3 | 155 | 130 | 260 | 3000 | 1000 | 1000 | 300 |
| 62~72 | 13.1 | 190 | 140 | 280 | 3000 | 1000 | 1000 | 300 |
| 74~84 | 13.9 | 208 | 140 | 280 | 3000 | 1000 | 1000 | 300 |
| 86~96 | 14.7 | 228 | 150 | 300 | 3000 | 1000 | 1000 | 300 |
| 98~108 | 15.5 | 247 | 160 | 320 | 3000 | 1000 | 1000 | 300 |
| 110~120 | 16.3 | 268 | 170 | 340 | 3000 | 1000 | 1000 | 300 |
| 122~132 | 17.1 | 290 | 180 | 360 | 3000 | 1000 | 1000 | 300 |
| 134~144 | 17.9 | 313 | 180 | 360 | 3000 | 1000 | 1000 | 300 |
| Messenger | Diameter: 5.1 mm, Weight: 86 kg/km |
| Connecting part | Dimension :3.5×2.6 mm, Weight: 9 kg/km |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.

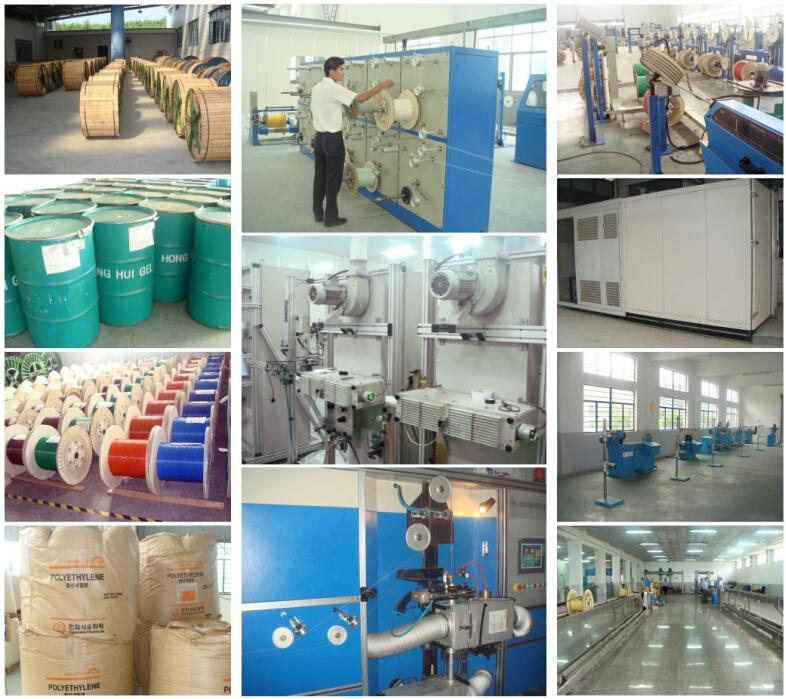

Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
