Hangzhou Jinlong Optical Cable Co., Ltd. >> GYFTC8Y Self-Supporting Aerial Optical Fiber Cable

GYFTC8Y Self-Supporting Aerial Optical Fiber Cable

GYFTC8Y Self-Supporting Aerial Optical Fiber Cable
Price: Negotiablekm
Trade Terms: FOB
Min Order: 20km
Pay Type: L/C,T/T
Prod Model: GYFTC8Y
Markets: South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Name: Figure 8 Optical Fiber Cable
Number Of Cores: 2--288
Outer Sheath: PE
Color: Black
Install Temperature: -40--60
The Way: Aerial
Application: Telecommunication
Type: Single-mode Fiber
Connection Structure: SC-SC
Certification: ISO9001
Material Shape: Fig-8
Brand: Jinlong
Sheath Material: PE/HDPE/Lzsh

Product Description

Figure 8 optical fiber cable GYFTC8Y

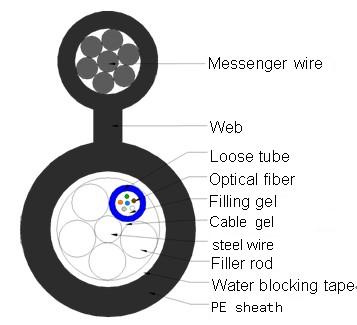

Non-mentalic Strength member, loose stranded tube type, gelly filled, Polyethylene(PE) sheath, Figure-8 self-supporting type Outer door optical fiber cable for telecommunication.
Figure 8 optical fiber cable GYFTC8Y
Fiber
count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max fiber
Per tube
No. of
(tube+fillers)
Allowable
Tensile load
Long/short
        (N)
Allowable
Crush resistance
Long/short
(N/10cm)
2-309.4X17.4156657000/40001000/300
32-3610.0X18.0170667000/40001000/300
38-6010.6X18.61751257000/40001000/300
62-7210.9X19.01851267000/40001000/300
> 72Available upon customer' s request






Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.

Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.

Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.

Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.

Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.

Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.

Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.

Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).

Please feel free to contact us for further information.
