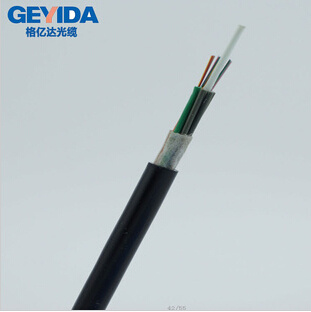

GYFTY 24core Outdoor Fiber Optic Cable with Duct

Name: GYFTY 24core Outdoor Fiber Optic Cable with Duct
Brand: all-electronics-online.com
SKU: 700349452
Availability: InStock
Rating: 4.5 (66 reviews)

Price:	US $ 0.36/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber : G652D,G657 Om1 Om2 Om3:	Armored: Corrugated Steel Tape
Application:	Long Distance Symmetric Cable
Cover Material:	PE
Certification:	RoHS
Conductor Material:	Fiber
Type:	GYFTY Outdoor Optical Fiber Cable
Model:	GYXTW53
Brand:	OEM or Geyida

Product Description

GYFTY Fiber Optic Cable Outdoor

Descripyion
The fibers,250um,are positioned in a loose tube made of a high modulus plastic.The tube are filled with a water-resistant filling compound.Asteel wire,sometimes sheathed with PE for cable with high fiber count,locates in the center of core as a metallic strength member.Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.The cable is completed with a PE sheath.

Features:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable form ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. PSP enhancing mostiure-proof

optical characteristics


		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC
storage/operating temperature:-40ºC to +70ºC
