GYFTY Central Strength 144 Core Single Mode Fiber Optic Cable
| Price: |
US $ 0.37/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYFTY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Central Strength: |
FRP |
| Model Number: |
GYFTY |
| Water Blacking Material: |
Water Blocking Tape |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE |
| Optic Fiber Type: |
Sm or Mm |
| Number Of Conductors: |
>10,2 to 288 |
| Color: |
Black |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Brand: |
Jinlong |
| Sheath Material: |
PE/HDPE/Lzsh |
Product Description
GYFTY Central Strength 144 Core Single Mode Fiber Optic Cable
Packaging & Delivery

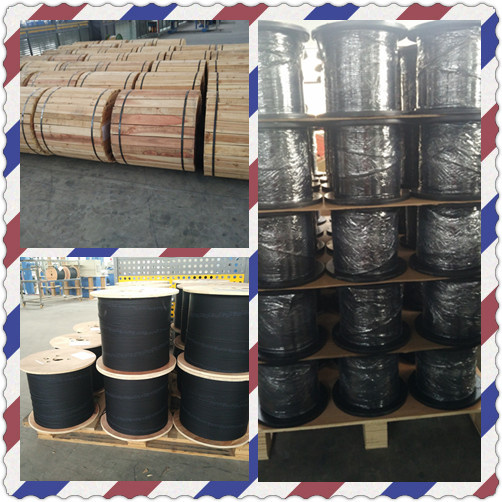

Packaging Details: Wooden Drum for long term shipping
Delivery Detail: 15~20 Days
Specifications
1)Cores: As per buyer's request
2)water block tape
3) Non-metallic structure
4)OEM order is welcome
GYFTY
Nonmetal Strength member, loose tube type, gelly filled, flame retardation polyethylene(PE) sheath, outer door optical fiber cable for telecommunication
Description

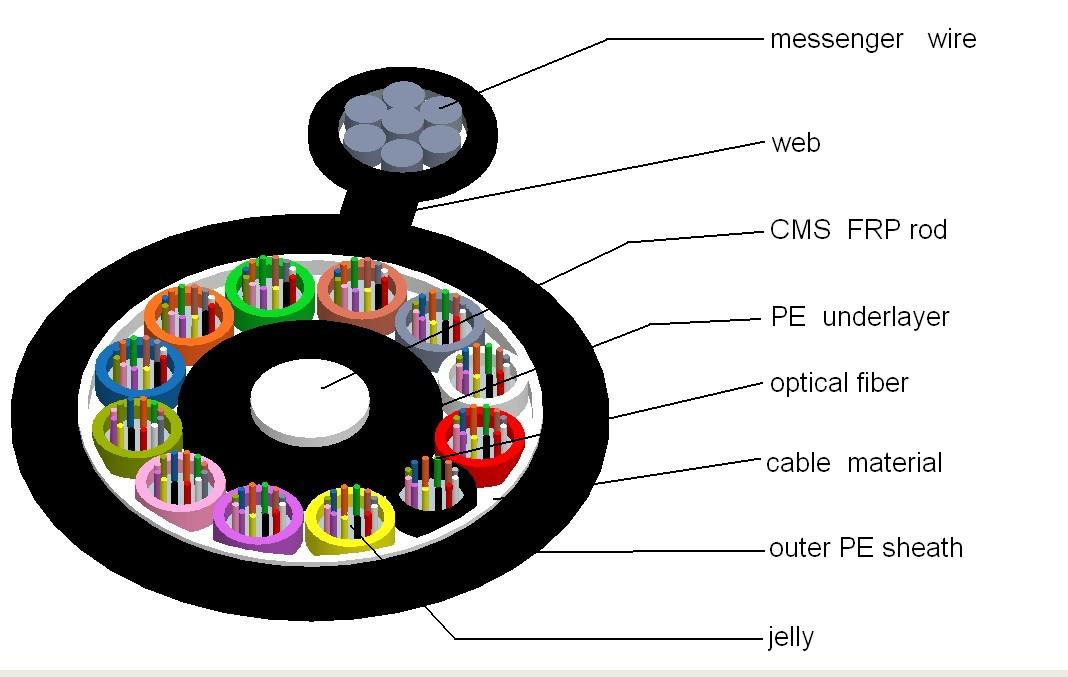

The fibers, 250µ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
Technical characteristics:
The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties
Very strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Special jelly filled in the loose tube provides the fibers with critical protection
Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance
The central member adopted high young's modulus FRP member.
The outer PE sheath provides the cable with radial resistant, moisture-proof and flame retardation properties
The cable use all dielectric non-mental structure, light in weight, easily to lay, excellent anti-electric-magnetic properties, Suitable for environment with high electric field strength in the Power communication system and the area where frequent thunder happens| Technical Parameter: | | | | | | | | |
| Fiber | Cable | Cable net | Min. bending | Min. tensile | Min. crush |
| count | dia.(mm) | weight(Kg/km) | radius(mm) | strength(N) | pressure(N/100mm) |
| | | | Static state | Dynamic | Short term | Long term | Short term | Long |
| | | | state | term |
| 2-42 | 11.5 | 106 | 120 | 240 | 1500 | 600 | 1000 | 300 |
| 44-48 | 11.9 | 115 | 120 | 240 | 1500 | 600 | 1000 | 300 |
| 50-56 | 11.9 | 112 | 120 | 240 | 1500 | 600 | 1000 | 300 |
| 58-84 | 12.9 | 134 | 130 | 260 | 1500 | 600 | 1000 | 300 |
| 86-96 | 13.7 | 155 | 140 | 280 | 1500 | 600 | 1000 | 300 |
| 98-108 | 14.5 | 179 | 150 | 300 | 1500 | 600 | 1000 | 300 |
| 110-120 | 15.3 | 204 | 160 | 320 | 1600 | 600 | 1000 | 300 |
| 122-132 | 16.1 | 232 | 170 | 340 | 1800 | 600 | 1000 | 300 |
| 134-144 | 16.9 | 262 | 170 | 340 | 1900 | 600 | 1000 | 300 |
gy(f
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
