GYFTY Outdoor Network Aerial Duct Fiber Optic Cable
| Price: |
US $ 1.99-2.5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GYFTY Outdoor Network Fiber Optic Cable |
| Number Of Fiber: |
24-144cores |
| Fiber Brand: |
Yofc, Corning, Fiberhome, Fujikura, Ofs etc. |
| Length Of Cable: |
Generally Is 2km, Can Be Required. |
| Cable For: |
Aerial or Duct. |
| Characteristics: |
FRP Central Strength Member,Tube Filling Gel |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
According to Customers Request |
| Sheath Material: |
PE, HDPE or Hrpe |
Product Description
GYFTY Outdoor Network Aerial Duct Fiber Optic Cable
1. GYFTY Outdoor Cable Description
The Dielectric Loose Tube Outdoor Fiber Cable GYFTY is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking tape. The cable is completed with a PE, HDPE or HRPE outer sheath.

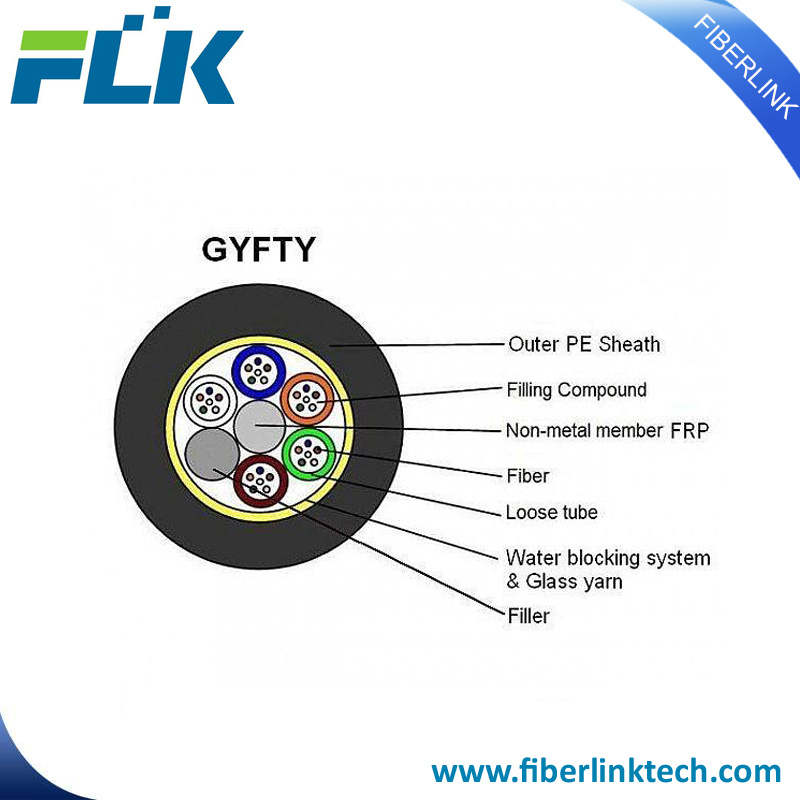

2. Cable Drawing
Note : Structure drawing just for reference, please check the following details.
3. Application
The actual status of overhead power lines ,Cable for aerial or duct.
4. Characteristics
FRP central strength member
Tube filling gel
Loose tube stranded
PE sheath outdoor cable
5. Cable Features
5.1 Fiber Allocation Scheme| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | No.of
(Tubes +fillers) | Allowable Tensile
Load (N) | Allowable Crush
Resistance (N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 2~36 | 10.2±0.5 | 85±05 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11±0.5 | 100±05 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 12±0.5 | 130±05 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14±0.5 | 160±05 | 12 | 10 | 1500 | 600 | 1000 | 300 |
| 122~144 | 16±0.5 | 204±05 | 12 | 12 | 1800 | 600 | 1000 | 300 |
| 146~216 | 16±0.5 | 205±05 | 12 | 18
(2layers) | 1800 | 600 | 1000 | 300 |
| >216 | Available upon customer's request |
5.2 Cable construction details| Items | Description |
| Number of fiber | 24-144cores |
| Fiber type | Single mode or Multi mode |
| Loose tube and Filler elements | material | PBT |
| diameter | Ф2.2mm+-0.2mm |
| Central strength member | material | FRP |
| diameter | 2.0mm+-0.2mm |
| Outer sheath | material | PE, HDPE or HRPE |
| diameter | 1.8±0.2mm |
| Moisture Barrier | Water blocking Tape |
6. Standard color of fiber and tube
The color code of the fibers shall be in accordance with the table as below:
| Standard Color Identification |
|
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
7. Cable Mechanical characteristic| Items | Parameter |
| Installation Temperature range | -15--+60ºC |
| Operation and transport temperature | -40-+70ºC |
| Min Bending Radius(mm) | Long term | 10D |
| short term | 20D |
8. Requirement for Order
1. Fiber sort: Single mode G652, G655, G657, Multi mode 50/125, 62.5/125, OM3, OM4.
2. Fiber brand: YOFC, Corning, Fiberhome, Fujikura, OFS etc.
3. Sheath material: PE, LSZH ( can be required).
4. Sheath color: Black, can be required.
5. The fiber and tube color: according to stranded color, can be required.
6. The cable Size: shall be in accordance with the table, can be required.
7. Length of cable: generally is 2KM, can be required.
8. Other requirement: can be negotiated. Fiber characteristic
| Fiber style | Unit | SM G652D | SM G655 | MM 50/125 | MM 62.5/125 | MM
OM3-150 |
| Wavelength | nm | 1310/1550 | 1550/1625 | 850/1300 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤0.34/0.21 | 0.22/0.26 | ≤3.0/1.0 | ≤3.0/1.0 | ≤3.0/1.0 |
| Dispersion | 1550nm | Ps/(nm*km) | ≤18 | 2.0-6.0 | ..... | | Dispersion |
| 1625nm | Ps/(nm*km) | ≤22 | 4.5-11.2 | ..... | | |
| Bandwidth | 850nm | MHZ. KM | ..... | ..... | >=400 | | Bandwidth |
| 1300nm | MHZ. KM | ..... | ..... | >=800 | | |
| Zero dispersion wavelength | nm | >=1302,
≤1322 | ≤1420 | ..... | ..... | >= 1295,
≤1320 |
| Zero dispersion slope | nm | ≤0.091 | ≤0.06 | ..... | ..... | ---- |
| PMD Maximum Individual Fiber | | ≤0.2 | ≤0.2 | ..... | ..... | ≤0.11 |
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ≤0.08 | ..... | ..... | ---- |
| Fiber cutoff wavelength λc | nm | >=1180,≤1330 | ..... | ..... | ..... | ---- |
| Cable cutoff wavelength λcc | nm | ≤1260 | ≤1450 | ..... | ..... | ---- |
| MFD | 1310nm | um | 9.2±0.4 | 9.2±0.4 | ..... | ---- | ---- |
| 1550nm | um | 10.4±0.8 | 9.6±0.5 | ..... | ---- | ---- |
| Numerical Aperture(NA) | | ...... | | 0.200±0.015 | 0.275±0.015 | 0.200+/-0
.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
| Difference back scatter coefficient | dB/km | ≤0.03 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ....... | ....... | |
| Core diameter | um | ...... | ...... | 50±1.0 | 62.5±2.5 | 50±1.0 |
| Cladding diameter | um | 125.0±1.0 | 124.8±0.7 | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 245±7 | 242±7 | 242±7 | 242±7 |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | >=4 | >=4 | ..... | ..... | ..... |
10. Cable marking and cable reel marking
10.1 Cable marking
The cable sheath shall be marked with white characters at intervals of one meter with following information:
Purchaser's name
Cable type
Fiber type and counts
Year of manufacture
Length marking
Notice: cable mark is available if requested by customer.
10.2 Cable reel:
Details given below shall be marked with a weather materials on both outer sides of the reel flange :
Cable type and fiber counts
Length of cable in meters
Year of manufacture
Notice: shipping mark is available if requested by customer.
11. Packing Information
Packing material: Wooden drum
Cable end protect material: waterproof-cap
Packing length: standard length of cable shall be 2 km.
Other cable length is also available if required by customer
12. Our certificates:- ISO9002 2) SGS, ROHS 3) ULE329066 4) REACH
| No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion ,Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
13. Testing Lab: Fiber Optic Cable Mechanical Performance Testing Laboratory
Main Testing Type: Precision Test and Mechanical Test.
Precision Testing Machine: EXFO OTDR, EG&G PMD-440, CD-400.
Mechanical Performance Testing: Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.Related products
