Gysta Optical Fiber Cable/Computer Cable/Data Cable/Communication Cable/Audio Cable/Connector

Name: Gysta Optical Fiber Cable/Computer Cable/Data Cable/Communication Cable/Audio Cable/Connector
Brand: all-electronics-online.com
SKU: 833478705
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 150-300/Roll
Min Order:	10/Roll
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYSTA Fiber Optic Cable
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CE
Brand:	Hanxin or OEM

Product Description

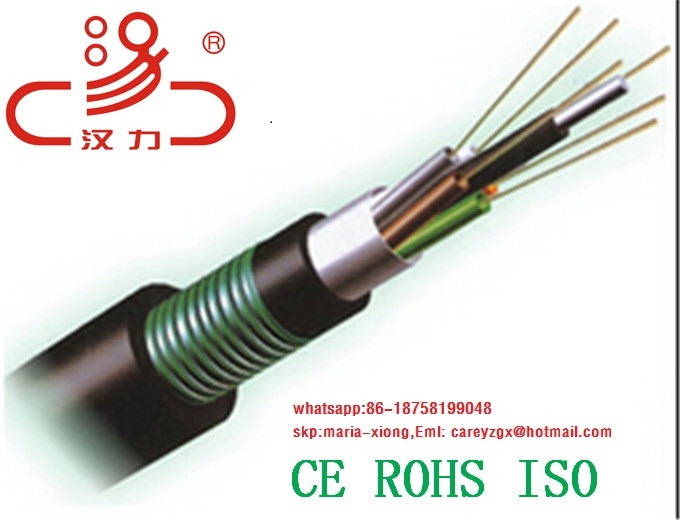

GYSTA
Central loose tube optical fiber
Metallic central reinforcer
Fill gel into SZ stranded cores
Two-sided plastic-coated steel tape bonded PE sheath

Application Range:Suitable for long-distance communication and interoffice communication
Laying Method:Pipeline, aerial
Applicable Temperature:-40ºC~+60ºC

Product Features:
1.Low optical fiber transmission loss and low dispersion.
2.Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
3.Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
4.Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
5.Excellent flexibility and bending resistance performance.
6.Make the moisture proof effect more excellent as cores are longitudinally wrapped by aluminum tape.
Technical Parameters

Fiber cores	Outer diameter of optical cable mm	Weight of optical cable kg/km	Minimum bending radius mm		Allowable minimum tensile strength N		Allowable minimum crush resistance mN/100mm
Fiber cores	Outer diameter of optical cable mm	Weight of optical cable kg/km	Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2~36	11.6	138	120	240	1500	600	1000	300
38~72	13.1	167	140	280	1500	600	1000	300
74~96	14.9	206	160	320	1500	600	1000	300
98~120	16.3	267	170	340	1500	600	1000	300
122~144	17.9	310	190	380	1500	600	1000	300

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
  Contact:
Name:  JKing Tel:+8657163865101 Mob:13675897075
Website: http://en.hanlicable.com/main2.html kuayuecable.en.made-in-china.com

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.

"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,

We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.

We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,

Our principle: Service from Honesty, Impression from High quality!

Welcome visit our website and contact with us for any question or inquiries!
