| Prod Model: |
GYSTA53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Certificates: |
ISO9001, CE |
| Model Number: |
Gysta53 |
| Outer Jacket: |
PE Outer Sheath |
| Cable Weight: |
229kg/Km |
| Cable Diameter: |
13.7-20.9 |
| Number Of Conductors: |
>10, 2~288 |
| Productive: |
10000km/Month |
| Color: |
Black |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
| Connection Structure: |
Joint Box |
Product Description
Packaging & DeliveryPackaging Details: Wooden Drum
Delivery Detail: 15~20 Days
Specifications1. Optical fiber cable
2.100% test before delivery
3. Factory price
4. Manufacturer by your requirements
5. Arial cable

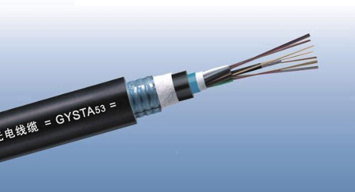

GYSTA53:Metal Strength member, Loose tube stranded type, gelly filled, APL- Polyethylene(PE)sheath, PSP armor and Polyethylene(PE) outer sheath, Outer door optical fiber cable for
Technical characteristics:Selected high quality optical fiber ensure the optical fiber cable have excellent transmission properties
The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties
Very strict material and manufacturing control guarantees stable product quality.
Total cross-section water-resistant structure make cable have an excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
The central member adopted corrosion resistant, high young's modulus phosphatic steel wire.
PSP armor structure has super crush resistance.
Cable CharacteristicsAccurate fiber excess length ensures good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material
temperature:Storing temperature: -40 to +70
Operating temperature: -40 to +70
Bending radius: Static 10*D, dynamic 20*D
|
Data sheet |
|
Jelly material |
Petroleum jelly |
|
Outer sheath |
PE |
|
fibers |
2-144 |
|
outer diameter(mm) |
16.8~24.2 |
|
weight (kg/km) |
276~576 |
|
Minimun bending radius |
340~480 |
|
Minimun Tensile strength (N) |
Long-term1000 |
|
Minimun Flattening strength(N) |
Long-term1000 |
|
Laying way |
directly buried |
|
Suitable temperature |
-40 ~ +60 |
|
application scope |
Long-distance communication |
|
Local communications |
|
Cable count |
Out sheath diameter |
Nominal weight |
Min. allowable tensile strength (N) |
Min. allowable crush load (N/100mm) |
Min. bending radius (MM) |
|
Core |
(mm) |
(kg/km) |
Short term |
Long term |
Short term |
Long term |
Dynamic |
Static |
|
24 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
|
36 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
|
42 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
|
48 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
|
60 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
|
72 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
|
96 |
16.5 |
275 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
|
144 |
19.6 |
345 |
3000 |
1000 |
3000 |
1000 |
20D |
|
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
