Gystza Optical Fiber Cable/Computer Cable/ Data Cable/ Communication Cable/ Audio Cable

Prod Model:	GYSTZA Optic Fiber Cable
Model No.:	Gystza Optical Fiber Cable
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

Product Description

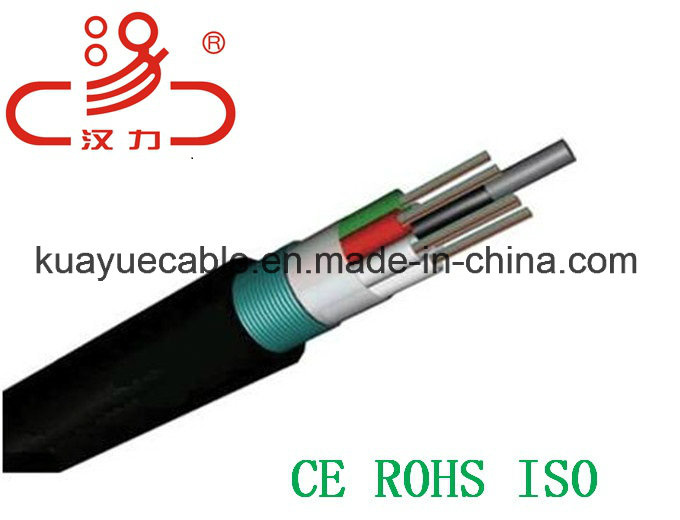

GYSTZA  Optical Fiber Cable
Central loose tube optical fiber
Metallic central reinforcer
Fill gel into SZ stranded cores
Two-sided plastic-coated longitudinally-wrapped aluminum tape
Low-smoke zero halogen flame-retardant sheath

Application Range:Suitable for long-distance communication and interoffice communication
Laying Method:Pipeline, aerial
Applicable Temperature:-40ºC~+60ºC

Product Features:
1.Low optical fiber transmission loss and low dispersion.
2.Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
3.Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
4.Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
5.Excellent flexibility and bending resistance performance.
6.Make the moisture proof effect more excellent as cores are longitudinally wrapped by aluminum tape.
7.The cable sheath is made from halogen-free flame retardant polyethylene materials, with excellent flame retardant effect, no toxicity and pollution.
Technical Parameters

Fiber cores	Outer diameter of optical cable mm	Weight of optical cable kg/km	Minimum bending radius mm		Allowable minimum tensile strength N		Allowable minimum crush resistance mN/100mm
			Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2~36	11.6	170	120	240	1500	600	1000	300
38~72	13.1	200	140	280	1500	600	1000	300
74~96	14.9	240	160	320	1500	600	1000	300
98~120	16.3	290	170	340	1500	600	1000	300
122~144	17.9	350	190	380	1500	600	1000	300
