| Prod Model: |
GYSTZS Fiber Optic Cable |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
| Brand: |
Hanxin |
Product Description

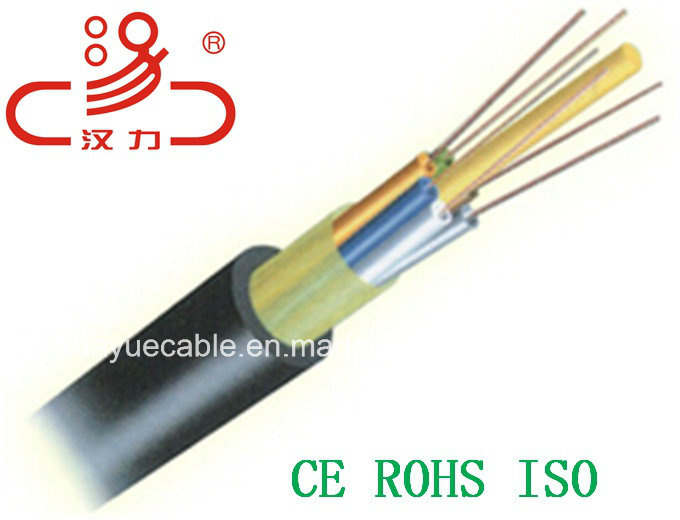

GYSTZS
Central loose tube optical fiber
Metallic central reinforcer
Fill gel into SZ stranded cores
Two-sided plastic-coating longitudinally-wrapped steel tape
Low-smoke zero halogen flame-retardant sheath
Application Range:Suitable for long-distance communication and interoffice communication
Laying Method:Pipeline, aerial
Applicable Temperature:-40ºC~+60ºC
Product Features:
1.Low optical fiber transmission loss and low dispersion.
2.Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
3.Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
4.Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
5.Excellent flexibility and bending resistance performance.
6.Provide more excellent moisture proof effect as well as bullet proof function as the cores are wrapped longitudinally by steel tape.
7.The cable sheath is made from halogen-free flame retardant polyethylene materials, with excellent flame retardant effect, no toxicity and pollution.
Technical Parameters
| Fiber cores | Outer diameter
of optical cable
mm | Weight of
optical cable
kg/km | Minimum bending
radius mm | Allowable minimum
tensile strength N | Allowable minimum
crush resistance mN/100mm |
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term |
| 2~36 | 11.8 | 190 | 120 | 240 | 1500 | 600 | 1000 | 300 |
| 38~72 | 13.4 | 225 | 140 | 280 | 1500 | 600 | 1000 | 300 |
| 74~96 | 14.9 | 266 | 160 | 320 | 1500 | 600 | 1000 | 300 |
| 98~120 | 16.6 | 350 | 170 | 340 | 1500 | 600 | 1000 | 300 |
| 122~144 | 18.2 | 400 | 190 | 380 | 1500 | 600 | 1000 | 300 |
Physical Properties
| Fiber Count | Nominal Weight(kg/km) | Nominal Weight(lb/kft) | Nominal Outer Diameter(mm) | Nominal Outer Diameter(in) | Maximum Pulling Load |
| Installation(N/Ib) | In Service(N/Ib) |
| 2-24 | 389.0 | 261.07 | 12.6*25.1 | 0.50*0.99 | 2670/600 | 890/200 |
| 36-72 | 429.0 | 287.92 | 14.7*27.1 | 0.58*1.07 | 2670/600 | 890/200 |
| 96-144 | 571.0 | 383.22 | 20.2*32.6 | 0.80*1.29 | 2670/600 | 890/200 |
Mechanical Properties
| Minimum Bending Radius: | | Maximum Compressive Load: | 4000N for unarmored cables; |
| Under installation: | 20×OD | | 6000N for armoured cables |
| During operation | 0×OD for unarmoured cables | Repeated Impact: | 4.4 N.m (J) |
| | 20×OD for armoured cables | Twist (Torsion): | 180×10 times, 125×OD |
| Temperature Range: | | Cyclic Flexing: | 25 cycles for armoured cables. |
| Operating Temperature Range: | -40ºC(-40ºF) to +70ºC(+158ºF) | | 100 cycles for unarmoured cables. |
| Storage Temperature Range: | -50ºC(-58ºF) to +70ºC(+158ºF) | Crush Resistance: | 220N/cm (125lb/in) |
Fiber Compliance
Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend | IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Safety Compliance
| General Purpose Grade | Flammability Test: OFN (UL1581) |
| Riser Grade | Flammability Test: OFNR/FT4 (UL1666) |
| Plenum Grade | Flammability Test: OFNP/FT6 (UL 910) |
| FRPVC Grade | Flammability Test: IEC60332-1 |
| LSZH Grade | Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
| LSFROH Grade | Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
| FR Grade | Fire Resistance Test : IEC 60331 / BS 6387 CW |

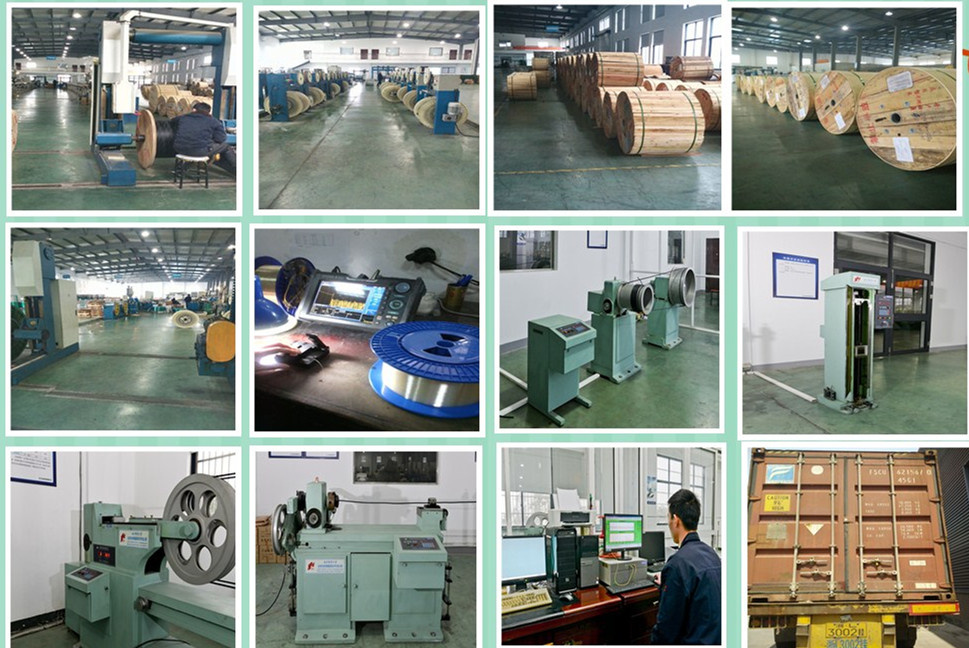

Welcome to visit our factory and get our samples.
