GYTA/S Outdoor Armored Fiber Optic Cable

Name: GYTA/S Outdoor Armored Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 823601975
Availability: InStock
Rating: 4.9 (125 reviews)

Price:	US $ 0.3-0.5/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-51
Factory Type:	Manufacturer
Cores:	Accroding to Customers′ Requirement
Delivery Length:	Accroding to Customers′ Requirement
Material:	PVC
Strength Member:	Center Steel
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

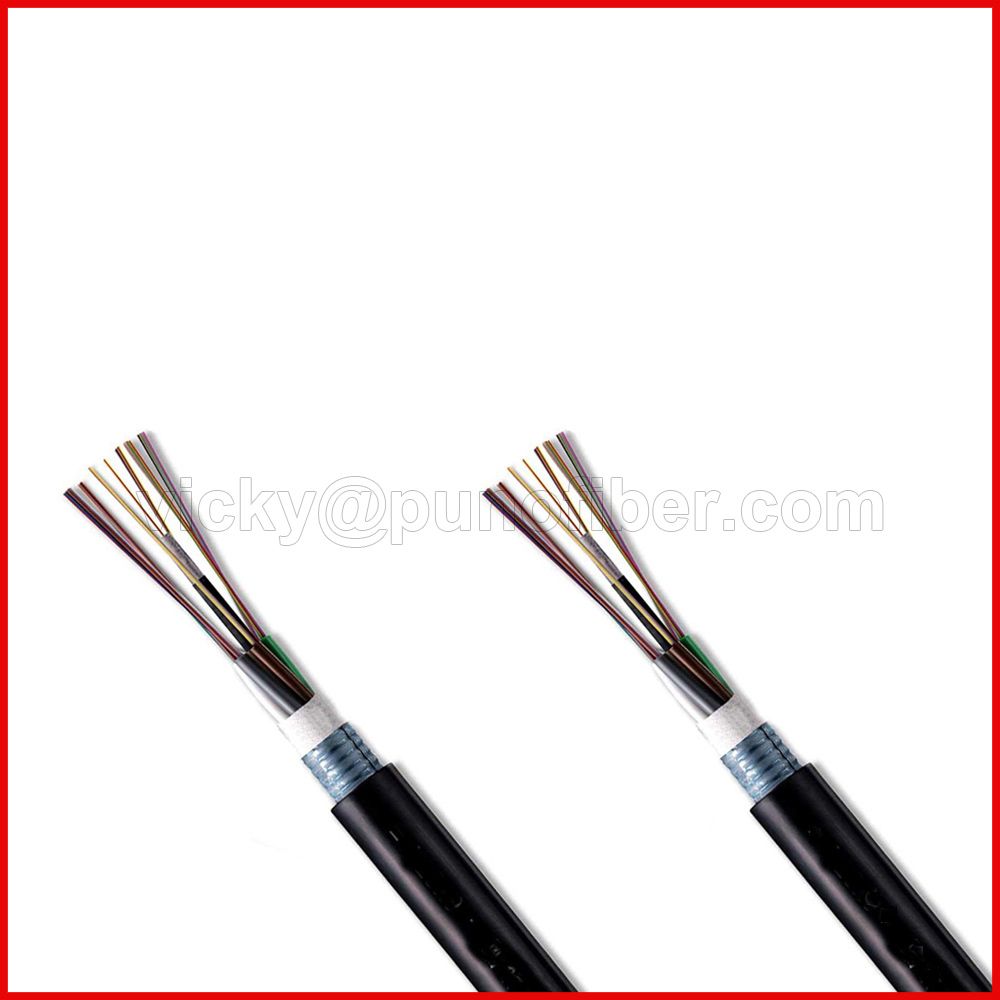

GYTA/S Outdoor Armored Fiber Optic Cable

The structure of the GYTA cable is to insert single or multimode fibers into a loose tube made of high modulus polyester material, and the casing is filled with a waterproofing compound. The center of the cable core is a metal reinforcement core, for some core number of fiber optic cable, the metal reinforcement core need to squeeze a layer of PE. The loose tube is twisted around the center of the core to form a compact circular cable core, and the gap in the cable core is filled with water repellent. APL longitudinal bag after extrusion PE jacket into a cable.

Characterisics:

√ Excellent mechanical and temperature performance guaranteed by the accurate excess Fiber length;
√ Critical protection to fibers;
√ The following measures are taken to ensure the water blocking performance of the cable;
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube
- 100% cable core filling

Application:

√ Suitable for outdoor wiring;
√ Communication;
√ Suitable for overhead and pipe laying.

Technical Parameters:

Fiber count	Structure	Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tensile Long term/ Short term (N)	Permitted crush Long term/ Short term (N)	Bend radius Static state/ Dynamic state (mm)
2-36	1+6	11.7	91	1000/3000	1000/3000	12.5D/25D
38-72	1+6	12.5	107	1000/3000	1000/3000	12.5D/25D
74-84	1+7	13.6	122	1000/3000	1000/3000	12.5D/25D
86-96	1+8	14.3	134	1000/3000	1000/3000	12.5D/25D
98-108	1+9	14.9	146	1000/3000	1000/3000	12.5D/25D
110-120	1+10	15.5	158	1000/3000	1000/3000	12.5D/25D
122-132	1+11	16.1	170	1000/3000	1000/3000	12.5D/25D
134-144	1+12	16.8	185	1000/3000	1000/3000	12.5D/25D
146-216	1+6+12	17.1	193	1000/3000	1000/3000	12.5D/25D
218-288	1+9+15	19.1	237	1000/3000	1000/3000	12.5D/25D

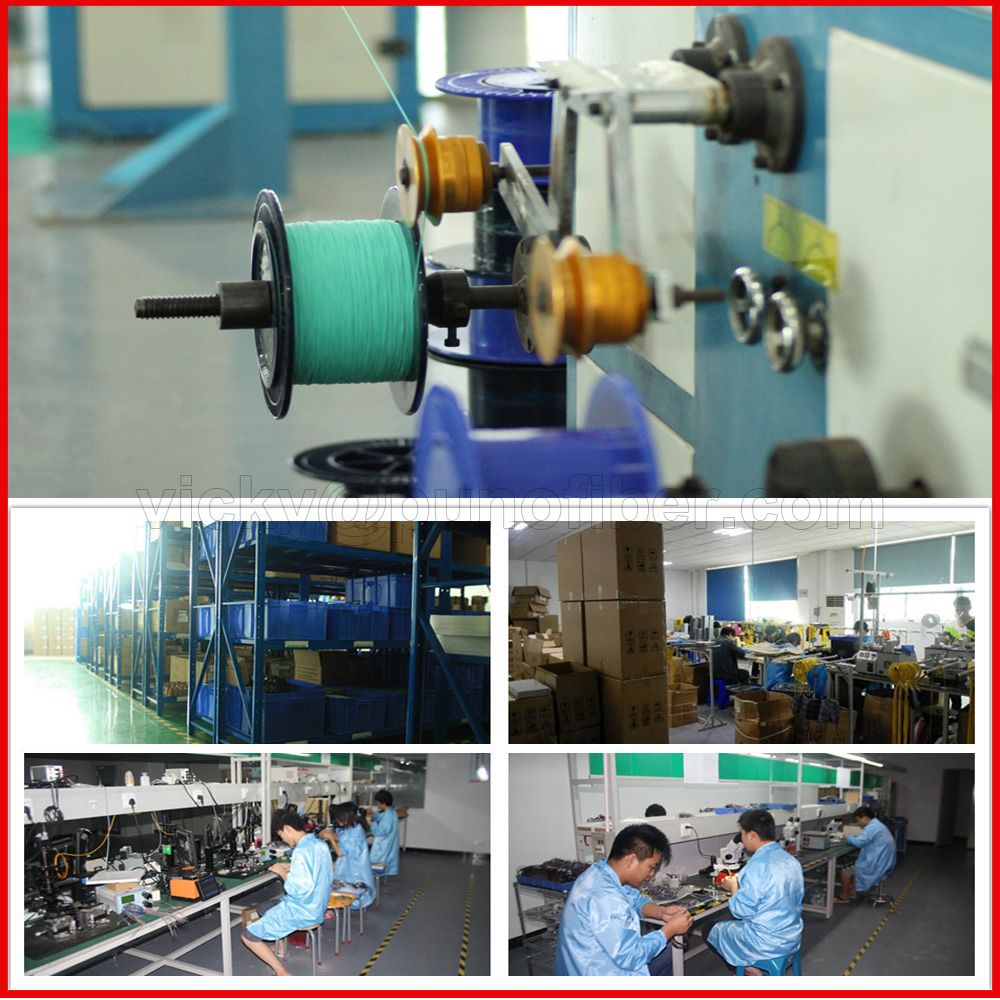

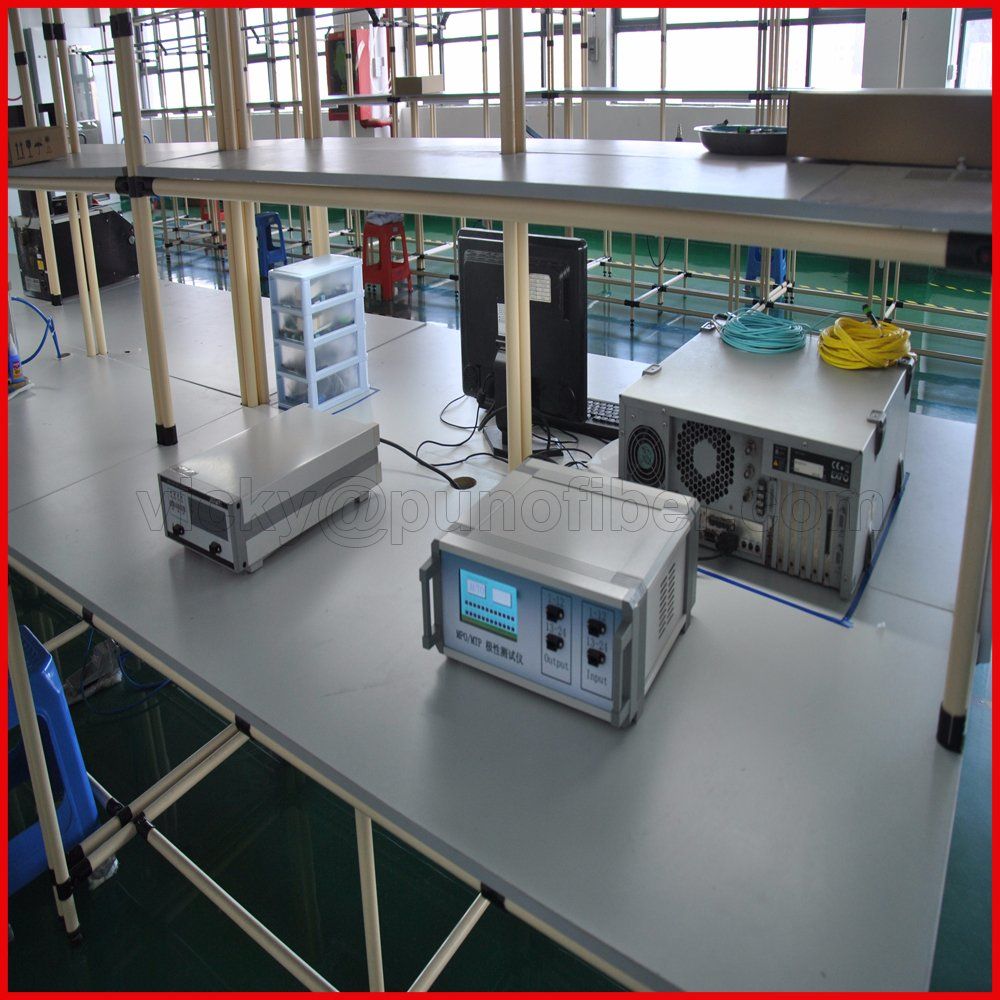

Workshop Overview:

Shipment of Transportation:

We as quality proffesional manufacturer leading of Fiber Optic Products like Fiber Optic Cable, Fiber Optic Patch Cords, Fiber Optic Connector, Fiber Optic Attenuators, Fiber Optic PLC Splitters, Fiber Optic Termination Boxes and so on, more details please give us a contact freely and we try our best to supporting.

Contact us:

Add: 2nd Floor, Building N, 3rd Industrial Zone, North Rd of DaLang, Longhua, Shenzhen 518109
Tel.: 0086.755.2100.1006
Fax.: 0086.755.2100.1006
Website.: www.punofiber.com

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
