GYTA Sm Fiber Optic Cable with Duct

Name: GYTA Sm Fiber Optic Cable with Duct
Brand: all-electronics-online.com
SKU: 688285532
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 0.278-0.32/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA Fiber Optic Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diamater:	10.5mm
Jacket Material:	PE
Loose Tube:	PBT
Strength Member:	Steel Wire
Application:	Art
Type:	Single-mode Fiber
Connection Structure:	ST
Certification:	CE
Brand:	OEM or Geyida

Product Description

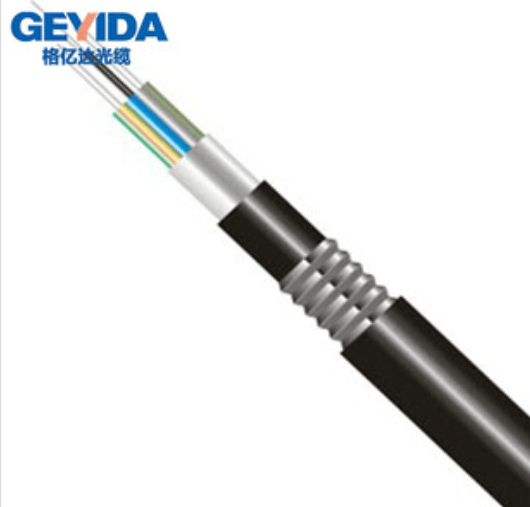

Outdoor Optical Fiber Cable /GYTA
Discription:

The fiber,250um,are positioned in a loose tube made of high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed polyethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.Tubes(and fillers) are stranded around the strength member into a compact and circular core.The PSP is longitudinally applied over the cable core,which is filled with the filling compound to protect it from water ingress.The cable is completed with a PE sheath.

1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. APL moisture barrier

Delivery time: With 10 days after get your payment.

Package: general ,we suggest that use the 2km/Drum,or according to the customer's requirement.

GYTS cable complies with Standard YD/T901-2009 as well as IEC 60794-1

optical characteristics


		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC
storage/operating temperature:-40ºC to +70ºC

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
