| Prod Model: |
GYTA53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Model Number: |
GYTA53 |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE |
| Number Of Conductors: |
>10, 2 to 288 |
| Installation Method: |
Directly Buried or Duct |
| Color: |
Black |
| Cable Type: |
Single Mode |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Sheath Material: |
PE |
Product Description

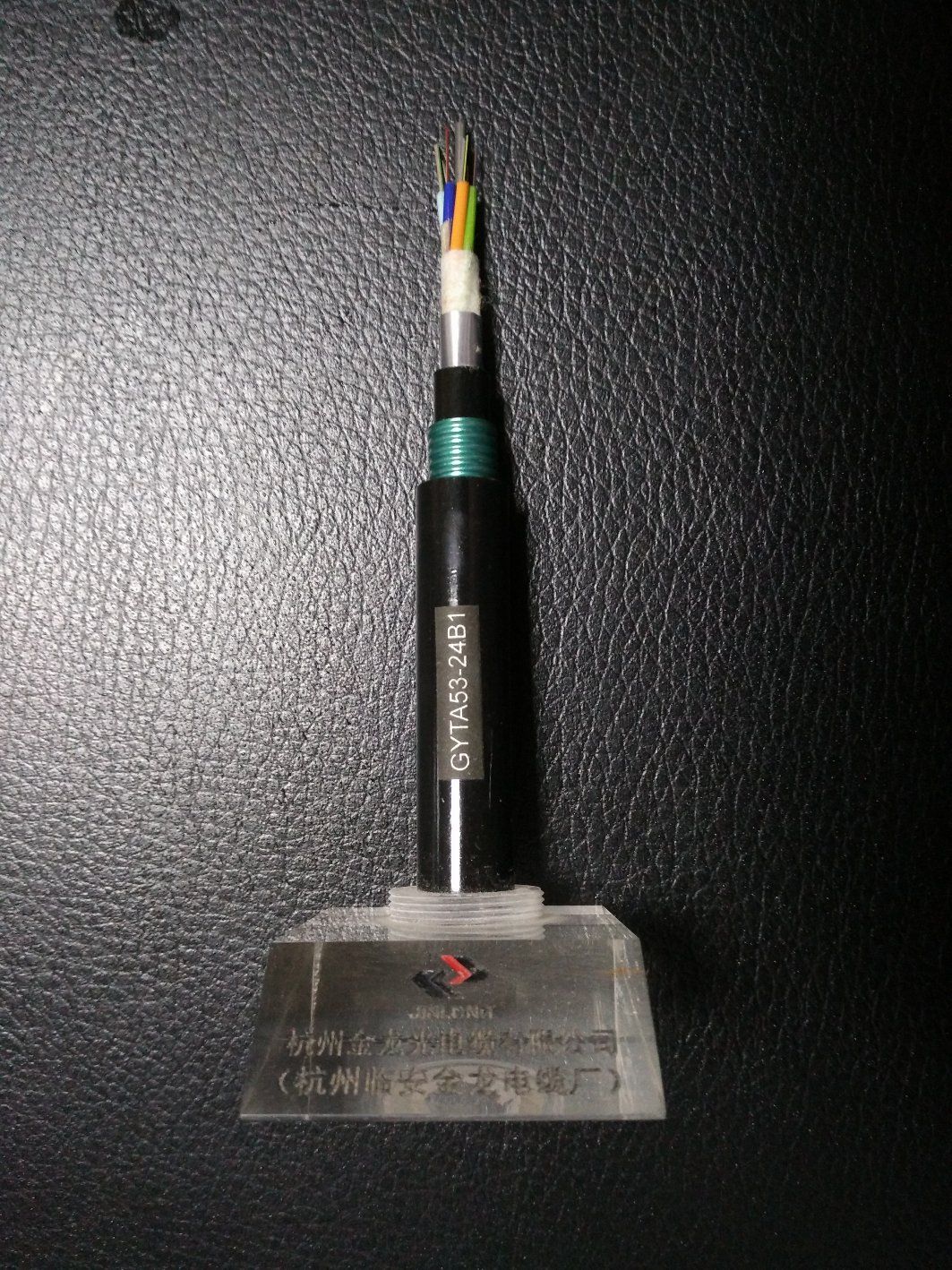

SpecificationsGYTA53 Optical fiber cableMetal Strength member, Loose tube stranded type, gelly filled, APL- Polyethylene(PE)sheath, PSP armor and Polyethylene(PE) outer sheath, Outer door optical fiber cable for telecommunication.
Selected high quality optical fiber ensure the optical fiber cable have excellent transmission properties
The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties
Very strict material and manufacturing control guarantees stable product quality.
Total cross-section water-resistant structure make cable have an excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
The central member adopted corrosion resistant, high young's modulus phosphatic steel wire.
PSP armor structure has super crush resistance.
Packaging & DeliveryPackaging Details: Wooden Drum for long term shipping
Delivery Detail: 15~20 Days
| The properties of single mode optical fiber (ITU-T Rec. G.652D) | |
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient | |
| @ 1310 nm | £ 0.36 dB/km |
| @ 1383 nm | £ 0.32 dB/km |
| @ 1550 nm | £ 0.22 dB/km |
| @ 1625 nm | £ 0.30 dB/km |
| Point discontinuity | £ 0.05 dB |
| Cable cut-off wavelength | £ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | £ 0.093 ps/(nm2.km) |
| Chromatic dispersion | |
| @ 1288 ~ 1339 nm | £ 3.5 ps/(nm.km) |
| @ 1271 ~ 1360 nm | £ 5.3 ps/(nm. km) |
| @ 1550 nm | £ 18 ps/(nm. km) |
| @ 1625 nm | £ 22 ps/(nm. km) |
| PMDQ (Quadrature average*) | £ 0.2 ps/km1/2 |
| Mode field diameter @ 1310 nm | 9.2±0.4 um |
| Core/Clad concentricity error | £ 0.5 um |
| Cladding diameter | 125.0 ± 0.7 um |
| Cladding non-circularity | £ 1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
|
| Temperature dependence | £ 0.1 dB/km |
| 0oC~ +70oC @ 1310 & 1550nm |
| Fiber count | 2~36 | 38~72 | 74~84 | 86~96 | 98~108 |
| Max. Cores in tube | 6 | 12 | 12 | 12 | 12 |
| Element number | 6 | 6 | 7 | 8 | 9 |
| Cable diameter | 13.7 | 14.5 | 15.4 | 16.2 | 16.9 |
| Fiber count | 110~120 | 122~132 | 132~144 | | |
| Max. Cores in tube | 12 | 12 | 12 | | |
| Element number | 10 | 11 | 12 | | |
| Cable diameter | 17.6 | 18.3 | 19.1 | | |
| Tensile strength(N) | 3000 |
| Crush resistance | Long term | 1000 |
| (N/100mm) | Short term | 3000 |
| Bending radius | Dynamic | 25*D |
| Static | 12.5*D |
| Storing temperature | -40 to +70 |
| Operating temperature | -40 to +70 |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
