GYTA53 Outdoor Optical Fiber Cable Two Layers Armour / PE Jacket

Name: GYTA53 Outdoor Optical Fiber Cable Two Layers Armour / PE Jacket
Brand: all-electronics-online.com
SKU: 810487275
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 0.5-2/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-OC-GYTA53
Used In:	Outdoor
Fiber Capacity:	12 to 144 Cores
MOQ:	2km
Print:	Customized
Jacket Color:	Black
Breakout:	Bare Fibers
Loose Tube:	Max 12 Tubes
Jacket:	Two Layers PE Jacket
Armour:	Two Layers Armour
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Cable
Sheath Material:	PE

Product Description

FA-OC-GYTA53,GYTA53 Outdoor Optical Fiber Cable, Stranded Loose Tube, Two Layers Armour, Two Layers Jacket/Sheath, PE Jacket

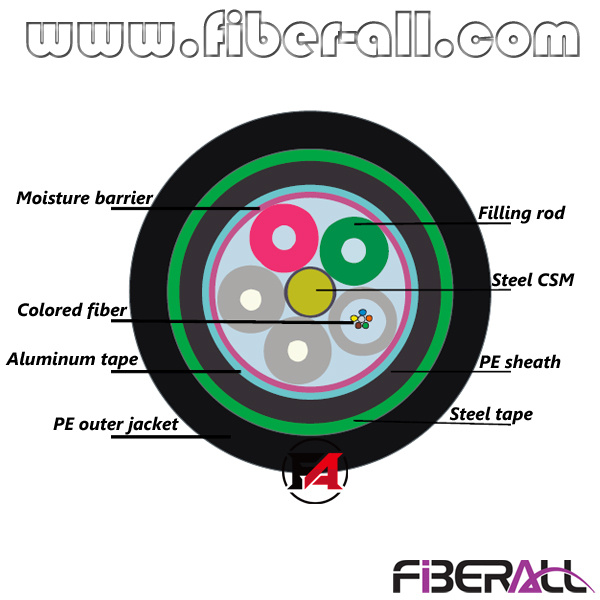

Structure Descriptions:
1 - UV Colored Fiber
2 - Loose tube: 2-12 fibers each loose tube
Φ2.15 ±0.05mm
3 - Central Strength Member: Steel wire
4 - Armored aluminum tape
5 - Longitudinal water blocking tape
6 - PE inner sheath
7- Steep tape
8- PE outer Jacket

Fiber Characteristics:

Fiber Type		Unit	SM G652	MM 50/125	OM1 62.5/125	MM OM3 300
Condition		nm	1310/1550	850/1300	850/1300	850/1300
Attenuation		dB/km	0.36/0.23	3.0/1.0	3.0/1.0	3.0/1.0
Dispersion	1550nm	ps(nm·km)	≤18	-----	-----	-----
Dispersion	1625nm	ps(nm·km)	≤22	-----	-----	-----
Bandwidth	850nm	MHZ·.km	-----	≥200	≥160	≥1500
Bandwidth	1300nm	MHZ. ·km	-----	≥300	≥200	≥500

Mechanical Parameters:

Temperature Range		ºC	-40ºC~ +70ºC
Min. Bending Radius (mm)	Dynamic	mm	20D
Min. Bending Radius (mm)	Static	mm	10D

Cable Characteristics:

Cable Type	Fiber capacity	O.D.(mm)	No. of Tubes	Cable wt. (kg/km)	Max. tension(N)		Max. crush resistance (N/100 )
Cable Type	Fiber capacity	O.D.(mm)	No. of Tubes	Cable wt. (kg/km)	Short	Long	Short	Long
GYTA53	2--60	14.0±0.5	5	248	3000	1000	3000	1000
GYTA53	62--72	16.0±0.5	6	283	3000	1000	3000	1000
GYTA53	74--96	17.0±0.5	8	325	3000	1000	3000	1000
GYTA53	98--120	20.5±0.5	10	396	3000	1000	3000	1000
GYTA53	122--144	22.0±0.5	12	443	3000	1000	3000	1000

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
