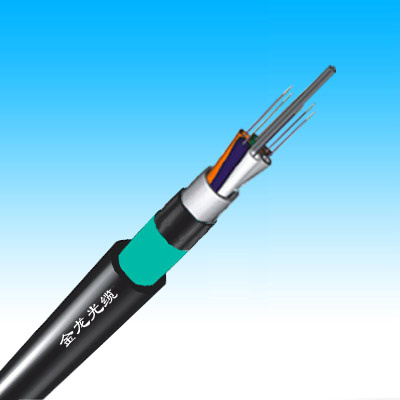

GYTA53 Underground & Direct Burial Outerdoor Optical Fiber Cable
| Price: |
US $ 0.35/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYTA53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Central Strength: |
FRP |
| Model Number: |
GYTA53 |
| Water Blacking Material: |
Water Blocking Tape |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE |
| Number Of Conductors: |
>10, 2 to 288 |
| Color: |
Black |
| Cable Type: |
Single Mode |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Sheath Material: |
PE |
Product Description
GYTA53 Underground & Direct Burial Outerdoor Optical Fiber Cable1.Specifications
Metal Strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, PSP armor and Polyethylene(PE) outer sheath,
2.Structure description:
Metal Strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, PSP armor and
Polyethylene(PE) outer sheath, Outer door optical fiber cable for telecommunication.
3.Performance:
Application Long haul and building network communication
Min bend radius(mm) Long-term 10D
Short-term 20D
Operating temperature (oC) -40~60
The way Aerial Duct
4.Features
High quality optical fiber provides good transmission performance.
Accurate fiber excess length control ensures excellence mechanical and temperature Performance.
Strict craft and raw material control for cable stably operating over 30 years.
The sturcture of all section water blocking and longitudinally armored with both side coated steel tape provide good performance of moisture-proof and water blocking.
Special filling gel filled loose tubes provides optical fiber protection.
Corrosion resistance phosphated steel wire with high Young's module as the central strength Member.| The properties of single mode optical fiber (ITU-T Rec. G.652D) | |
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient | |
| @ 1310 nm | £ 0.36 dB/km |
| @ 1383 nm | £ 0.32 dB/km |
| @ 1550 nm | £ 0.22 dB/km |
| @ 1625 nm | £ 0.30 dB/km |
| Point discontinuity | £ 0.05 dB |
| Cable cut-off wavelength | £ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | £ 0.093 ps/(nm2.km) |
| Chromatic dispersion | |
| @ 1288 ~ 1339 nm | £ 3.5 ps/(nm.km) |
| @ 1271 ~ 1360 nm | £ 5.3 ps/(nm. km) |
| @ 1550 nm | £ 18 ps/(nm. km) |
| @ 1625 nm | £ 22 ps/(nm. km) |
| PMDQ (Quadrature average*) | £ 0.2 ps/km1/2 |
| Mode field diameter @ 1310 nm | 9.2±0.4 um |
| Core/Clad concentricity error | £ 0.5 um |
| Cladding diameter | 125.0 ± 0.7 um |
| Cladding non-circularity | £ 1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
|
| Temperature dependence | £ 0.1 dB/km |
| 0oC~ +70oC @ 1310 & 1550nm |
| Fiber count | 2~36 | 38~72 | 74~84 | 86~96 | 98~108 |
| Max. Cores in tube | 6 | 12 | 12 | 12 | 12 |
| Element number | 6 | 6 | 7 | 8 | 9 |
| Cable diameter | 13.7 | 14.5 | 15.4 | 16.2 | 16.9 |
| Fiber count | 110~120 | 122~132 | 132~144 | | |
| Max. Cores in tube | 12 | 12 | 12 | | |
| Element number | 10 | 11 | 12 | | |
| Cable diameter | 17.6 | 18.3 | 19.1 | | |
| Tensile strength(N) | 3000 |
| Crush resistance | Long term | 1000 |
| (N/100mm) | Short term | 3000 |
| Bending radius | Dynamic | 25*D |
| Static | 12.5*D |
| Storing temperature | -40 to +70 |
| Operating temperature | -40 to +70 |
5.Packaging & Delivery
Packaging Details: Wooden Drum for long term shipping
Delivery Detail: 15~20 Days
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
