| Prod Model: |
GYTA53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Central Strength: |
FRP |
| Model Number: |
GYTA53 |
| Water Blacking Material: |
Water Blocking Tape |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE |
| Number Of Conductors: |
>10, 2 to 288 |
| Color: |
Black |
| Armoured: |
Steel Tape |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Sheath Material: |
PE |
Product Description

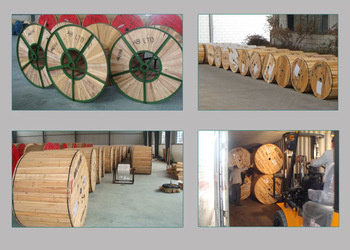

Packaging & DeliveryPackaging Details: Wooden Drum for long term shipping
Delivery Detail: 15~20 Days

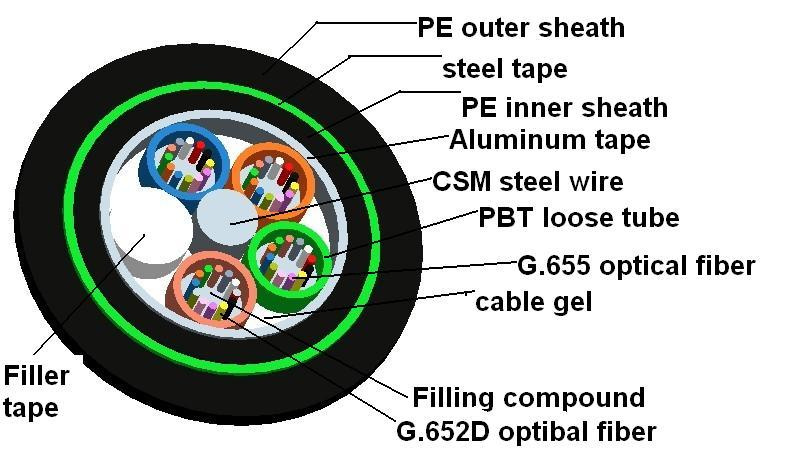

SpecificationsMetal Strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, PSP armor and Polyethylene(PE) outer sheath,
1. Structure description:Metal Strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, PSP armor and
Polyethylene(PE) outer sheath, Outer door optical fiber cable for telecommunication.
2. Performance:Application Long haul and building network communication
Min bend radius(mm) Long-term 10D
Short-term 20D
Operating temperature (oC) -40~60
The way Aerial Duct
3. FeaturesHigh quality optical fiber provides good transmission performance
Accurate fiber excess length control ensures excellence mechanical and temperature
Performance
Strict craft and raw material control for cable stably operating over 30 years
The sturcture of all section water blocking and longitudinally armored with both side coated steel tape provide good performance of moisture-proof and water blocking
Special filling gel filled loose tubes provides optical fiber protection
Corrosion resistance phosphated steel wire with high Young's module as the central strength
Member
Low dispersion and attenuation Proper design, precise control for fiber excess length and distinct stranding process
render the cable excellent mechanical and environmental properties
Aluminum-PE jacket make cable have nice properties of moisture resistance
With small cable diameter, light cable weight, easily to lay
The jacket also can be made of HFFR, which cable model is GYTA
Operating Temperature : -40 ~ +60 C
| Application | Long haul and building network communication |
| Min bend radius(mm) | Shor-term 10D |
| Long-term 20D |
| The way | Duct/Aerial |
| Operating temperature (°c) | -40~+60 |
| Fiber | Nominal | Nominal | Max fiber | No.of | Allowable | Allowable |
| count | Diameter | Weight | Per tube | (tube+fillers) | Tensile load | Crush resistance |
| | (mm) | (kg/km) | | | Long/short | Long/short |
| | | | | | (N) | (N/10cm) |
| 2-36 | 10.9 | 110 | 6 | 6 | 1500/600 | 1000/300 |
| 38-72 | 11.8 | 125 | 6 | 6 | 1500/600 | 1000/300 |
| 74-96 | 13.7 | 170 | 12 | 8 | 1500/600 | 1000/300 |
| 98-120 | 15.2 | 210 | 12 | 10 | 2000/600 | 1000/300 |
| 122-144 | 17 | 260 | 12 | 12 | 2500/600 | 1000/300 |
| 146-216 | 17.1 | 270 | 12 | 18(2layers) | 2500/600 | 1000/300 |
| >216 | 19.6 | 350 | 12 | 24(2layers) | 3500/800 | 1000/300 |
| >216 | Available upon customer request |
| Fiber count | ~30 | 32~60 | 62~72 | 74~84 | 86~96 | 98~108 | 110~120 | 122~132 | 134~144 |
| CSM/Steel(mm) | 1.5 | 1.6 | 2.2 | 3.0/2.0 | 3.8/2.0 | 4.5/2.0 | 5.2/2.0 | 5.8/2.0 | 6.6/2.0 |
| Element number | 5 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Max.cores in tube | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Loose tube diameter(mm) | 1.9/1.3 | 2.2/1.55 | 2.2/1.55 | 2.2/1.55 | 2.2/1.55 | 2.2/1.55 | 2.2/1.55 | 2.2/1.55 | 2.2/1.55 |
| Diameter(mm)+/-0.4 | 9.8 | 10.5 | 11.1 | 11.9 | 12.7 | 13.4 | 14.1 | 14.7 | 15.5 |
| Tensile strength | Long term | 600 |
| Short term | 1500≥0.8G 1500 and 0.8G(G-cable weight) |
| Crush resistance | Long term | 300 |
| Short term | 1000 |
| Bending radius | Dynamic | ≥20x cable diameter |
| Static | ≥10x cable diameter |
| Operating temperature(°c) | -40~+60 |
| Application | Aerial and Duct |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.

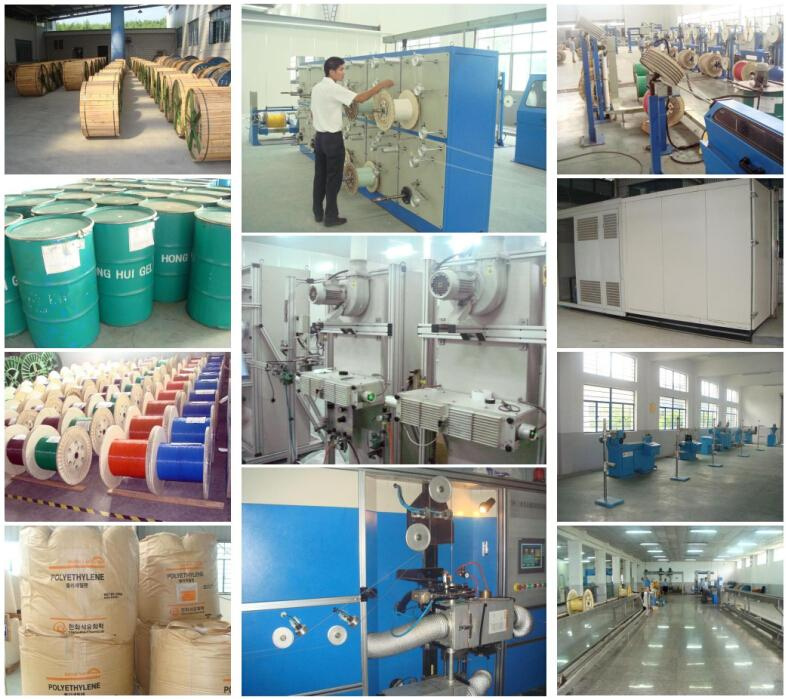

Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
