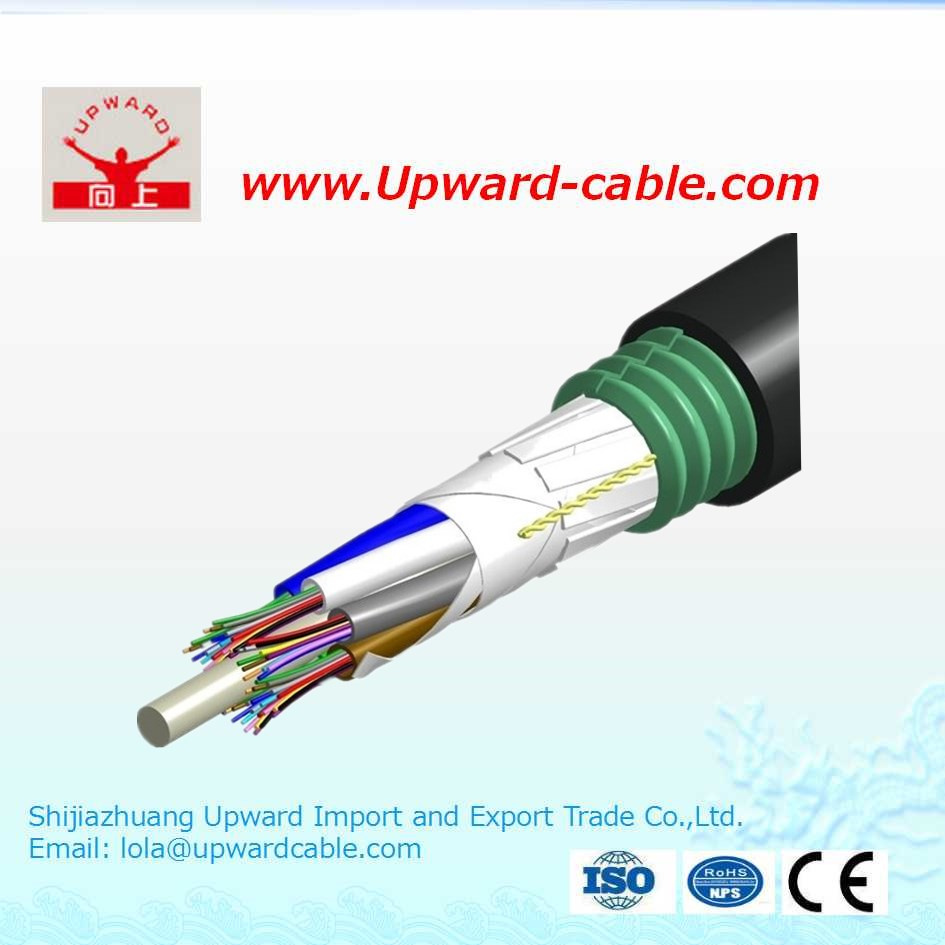

GYTS Corning G653 Optic Fiber Cable

GYTS Corning G653 Optic Fiber Cable
Price: US $ 0.8-1/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: GYTS
Insulation Material: XLPE
Cable Voltage: Low and Medium Voltage Cable
Usage: Duct/Aerial/Direct Burial
Standard: IEC 60227
Fiber Count: 2~48
Color: Black White or as Requested
OEM: Yes
Application: Communication
Type: Multi-mode Fiber
Connection Structure: SC
Certification: CCC
Brand: Upward

Product Description

Operating Temperature
-40°C to +70°C

Fiber Count
2 to 216 fibers

Strength Member
FRP or Steel Wire

Overall Jacket Material
Black UV and moisture-resistant polyethylene (PE)

Armoring Material
Aluminum
Product Parameters
  G.652G.65550/125μm62.5/125μm



Attenuation(+20ºC)

@850nm  ≤3.0dB/km≤3.3dB/km
@1300nm  ≤1.0dB/km≤1.0dB/km
@1310nm ≤0.40dB/km
@1550nm≤0.22dB/km≤0.23dB/km

Bandwidth(Class A)
@850nm  ≥500MHz·km≥200MHz·km
@1300nm  ≥1000MHz·km≥600MHz·km
Numerical Aperture  0.200±0.015NA0.275±0.015NA
Cable cut-off wavelength≤1260nm≤1450nm

Product Type
Stranded Loose Tube Cable
Item number

GYTA, GYTS
GYFTY, GYHTY
GYFTA
GYTY53, GYTA53
GYFTY53, GYFTA53
GYTA53+33

Advantages

Flame-retardant
Anti-rodent and Anti-termite
Color strip
Gel filling
Dry core
Dry tube & dry core

Central Tube Cable

Item number
GYXTW, GYXTW53
GYXY
GYFXY

Advantages
Flame-retardant
Anti-rodent and Anti-termite
Gel filling
Special Cable

Item number
MGTS, MGXTW
GYTC8A
GYTS+2x2.5mm2 ,GYDTA
GYFTZA53, GYTZA53
GYTZS, GYXTZW
ADSS

Advantages
Color strip
Anti-tracking
Long span over 1000m
Gel filling
