| Prod Model: |
GYTS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Operating Temperature: |
-40~+60 |
| Central Strength: |
FRP |
| Model Number: |
GYTS |
| Water Blacking Material: |
Water Blocking Tape |
| Certificate: |
ISO9001 and CE |
| Outer Jacket: |
PE |
| Number Of Conductors: |
>10, 2 to 288 |
| Color: |
Black |
| Cable Type: |
Single Mode |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
| Connection Structure: |
Joint Box |
Product Description
Specifications
1. Shield with aluminum tape
2. Suitable for Aerial or Duct installations
3. Cable capacity from 2~288 fibers
GYTS
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. The armoring of corrugated steel tape makes cable have nice moisture resistance and crush resistance performance.
4. Small cable diameter, light cable weight, easily to install.
5. The sheath also can be made by LSZH, which cable type is GYTS.
Applications
-. Usable in Duct or Aerial
-. Long-haul communication systems
-. Junction communication systems
-. Subscriber network systems
-. Local area network systems

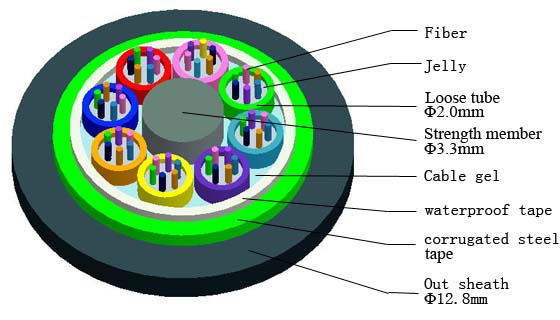

Loose tube style, optical fiber cable with metallic central
Strength member of steel wire/strand and moisture barrier
Inner sheathed. Cable protected by a black PE oversheath,
Suitable for duct or aerial application. Tubes contain optical
Single-mode or multimode fibers colour coded as per
Color coding scheme.
Tensile Strength 1500N 3000N
Crush Resistance 1000N/100mm
Minimum Bending Radius
During Installation 20 Times Cable Diameter
After Installation 10 Times Cable Diameter
Temperature Range
Storage -50 to +70
Operating -40 to +60
Description
The type of this fiber with single-mode or multimode with a loose tube which is made of high modulus plastic. There is used a water-resistant filling compound for filling. The center used a steel wire locates as a metallic strength member. For some cable, a steel wire sometimes sheathed with polyethylene. The tubes ( and filers ) are stranded around the strength member into a compact and circular cable core. Double sides chromium for PSP with PE as sheath. By single or double wire for installation, also with PE for outer sheath.
Product feature
1. Accurate fiber excess length ensures good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant and specially tube filling compound ensure a critical protection of fiber
3. Specially designed compact structure is good at preventing loos tubes from shrinking
4. The PE outer sheath has good anti-ultravioletradiation
5. The following measure are taken to ensure the cable watertight:
-Single steel wire as the central strength member
-Loose tube filling compound
-100% cable core filling
-PSP is the dampproof course
|
Part NO: |
Fiber Count |
Tubes |
Fillers |
Cable OD (mm ) |
cable Weight |
|
Increased by 2 fiber |
|
GYTS-2~6 |
2~6 |
1 |
4 |
9.5 |
100 |
|
GYTS-8~12 |
8~12 |
2 |
3 |
9.5 |
100 |
|
GYTS-14~18 |
14~18 |
3 |
2 |
9.5 |
100 |
|
GYTS-20~24 |
20~24 |
4 |
1 |
9.5 |
100 |
|
GYTS-26~30 |
26~30 |
5 |
0 |
9.5 |
100 |
|
GYTS-32~36 |
32~36 |
6 |
0 |
10 |
119 |
|
GYTS-38~48 |
38~48 |
4 |
1 |
11 |
136 |
|
GYTS-50~60 |
50~60 |
5 |
0 |
11 |
136 |
|
GYTS-62~72 |
62~72 |
6 |
0 |
12 |
155 |
|
GYTS-74~84 |
74~84 |
7 |
1 |
13.6 |
192 |
|
GYTS-86~96 |
86~96 |
8 |
0 |
13.6 |
192 |
|
GYTS-98~108 |
98~108 |
9 |
1 |
15 |
227 |
|
GYTS-110~120 |
110~120 |
10 |
0 |
15 |
227 |
|
GYTS-122~132 |
122~132 |
11 |
1 |
16.9 |
277 |
|
GYTS-134~144 |
134~144 |
12 |
0 |
16.9 |
277 |
|
Stranded loose tube cable with steel tape ( GYTS) |
|
Cable Type |
Fiber cont |
Tube fillers |
Max No. Of fibers in tube |
Diameter(mm) |
Weight (kg/km) |
Strength Long/short term(N) |
Crush Resistance Long/Short term (n/100mm) |
|
(increased by 2 fibers) |
|
GYTS |
2-30 |
5 |
6 |
9.6 |
100 |
600/1500 |
300/1000 |
|
32-36 |
6 |
6 |
10.2 |
115 |
600/1500 |
300/1000 |
|
38-60 |
5 |
12 |
11.6 |
150 |
600/1500 |
300/1000 |
|
62-72 |
6 |
12 |
12 |
170 |
600/1500 |
300/1000 |
|
74-96 |
8 |
12 |
14.2 |
220 |
600/2000 |
300/1000 |
|
98-120 |
10 |
12 |
15.4 |
260 |
600/2000 |
300/1000 |
|
122-144 |
12 |
12 |
17.6 |
300 |
600/2000 |
300/1000 |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
