GYTS Outdoor Loose Tube Fiber Optic Structured Cable for Network
| Price: |
US $ 0.01-5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GYTS |
| Central Strength Member: |
Steel Wire |
| Fiber Number: |
2-144 |
| Fiber Per Tube: |
12f/Tube |
| Fiber Type: |
OS1 OS2 Om1,Om2, Om3,Om4 |
| Moisture Barrier: |
Water Blocking System |
| Tube-Filling Material: |
Tube Filling Compound |
| Armoring Material: |
Corrugated Steel Tape |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
According to Customers Request |
| Sheath Material: |
LSZH |
Product Description
GYTS Outdoor Loose Tube Fiber Optic Structured Cable For Network
Cable Description
The GYTS Outdoor fiber cable, single mode or multimode, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.Application- Adopted to outdoor distribution;
- Suitable for aerial, pipeline laying method;
- Long distance and local area network communication.
Characteristics- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- PE sheath protects cable from ultraviolet radiation
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound and 100% cable core filling
- PSP enhancing moisture-proof
Features:
Fiber Allocation Scheme| Fiber number | Tube number | Fiber per tube | Fiber type |
| 2-144 | 1-12 | 12F/Tube | OS1 OS2
OM1,OM2, OM3,OM4 |
Cable construction details| Items | Description |
| Number of fiber | 2-144cores |
| Moisture Barrier | Water blocking system |
| Central strength member | Material | Steel wire/FRP/FRP with PE cover |
| size | 1.5mm~2.0mm |
| Loose tube | material | PBT |
| diameter | Ф2.2(outer/inner) |
| Tube-filling | material | Tube filling compound |
| Armoring | Material | Corrugated steel tape |
| Outer sheath | material | PE/HDPE |
| diameter | 1.70±0.2mm |
Standard color of fiber and tubeThe color code of the tubes and the individual fibers shall be in accordance with the table as below:| Standard Color Identification |
|
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Mechanical characteristic| Items | Cable diameter | Weight |
| 2 cores to 60 cores | 10.0±0.3mm | 115±5kg/km |
| 72 cores | 10.5±0.3mm | 120±5kg/km |
| 96 cores | 12.5±0.3mm | 180±5kg/km |
| 144 cores | 14.5±0.3mm | 245±5kg/km |
| Installation Temperature range | -15--+60ºC |
| Operation and transport temperature | -40-+70ºC |
| Min Bending Radius(mm) | Long term | 10D |
| short term | 20D |
| Allowable Tensile Strength(N) | Long term | 600 |
| short term | 1500 |
| Crush Load (N/100mm) | Long term | 300 |
| short term | 1000 |
Requirement for Order:- Fiber sort: Single mode G652, G655, G657, Multi mode 50/125,62.5/125,OM3,OM4.
- Fiber brand: YOFC, Corning, Fiberhome Fujikura, OFS etc.
- Sheath material: PE, LSZH (can be required).
- Sheath color: Black, can be required.
- The fiber and tube color: according to stranded color, can be required.
- The cable Size: shall be in accordance with the table, can be required.
- Length of cable: generally is 2KM, can be required.
- Other requirement: can be negotiated.
Fiber characteristic| Fiber style | Unit | SM
G652D | MM
50/125 | MM 62.5/125 |
| condition | nm | 1310/1550 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤0.36/0.23 | ≤3.0/1.0 | ≤3.0/1.0 |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ..... | ..... |
| 1550nm | Ps/(nm*km) | ≤22 | ..... | ..... |
| Bandwidth | 850nm | MHZ. KM | ..... | >=400 | >=160 |
| 1300nm | MHZ. KM | ..... | >=800 | >=500 |
| Zero dispersion wavelength | nm | >=1302,
≤1322 | ..... | ..... |
| Zero dispersion slope | nm | ≤0.091 | ..... | ..... |
| PMD Maximum Individual Fiber | | ≤0.2 | ..... | ..... |
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ..... | ..... |
| Fiber cutoff wavelength λc | nm | >=1180,≤1330 | ..... | ..... |
| Cable cutoff wavelength λcc | nm | ≤1260 | ..... | ..... |
| MFD | 1310nm | um | 9.2±0.4 | ..... | ..... |
| 1550nm | um | 10.4±0.8 | ..... | ..... |
| Numerical Aperture(NA) | | ...... | 0.200±0.015 | 0.275±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.10 | ≤0.10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.08 | ≤0.10 |
| Attenuation uniformity | dB/km | ≤0.01 | ....... | ....... |
| Core diameter | um | ...... | 50±1.0 | 62.5±2.5 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ..... | ..... |
Packing Information - Packing material: Wooden drum
- Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
Testing Lab: | No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion, Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Fiber Optic Cable Mechanical Performance Testing Laboratory- Main Testing Type: Precision Test and Mechanical Test.
- Precision Testing Machine: EXFO OTDR, EG&G PMD-440, CD-400.
- Mechanical Performance Testing: Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.
Our fiber patch cord production line:

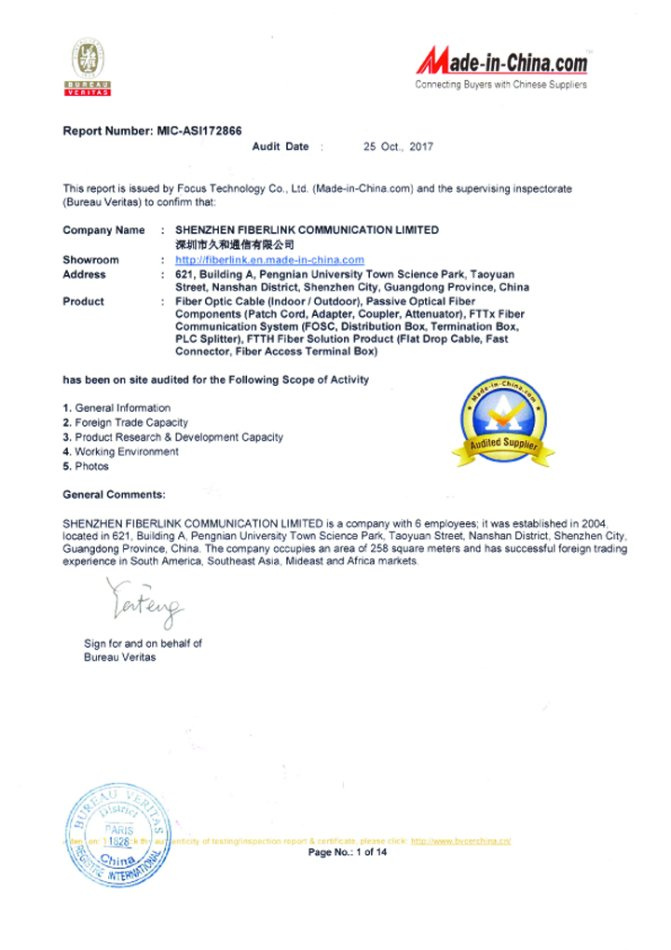

Certifications
