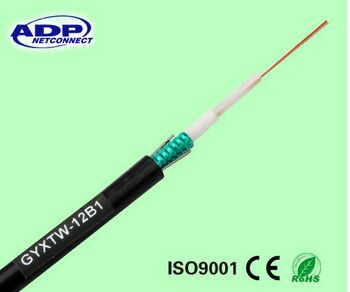

Gytxw Unitube Long Distance Communication Optical Fiber Cable

Application:	Fiber Optic Cable
Cover Material:	PE
Certification:	UL
Conductor Material:	Optical Fiber
Type:	Outdoor Fiber Optical Cable
Wire Core Material:	Optical Fiber
Model:	Rg59 Coaxial Cable
Brand:	ADP/OEM

Product Description

Product descriptions
Structure Characters
♦ Water proofing layer between the steel tape and cable core
♦ Double coated PE corrugated steel tape under PE sheath.
♦ Parallel double steel wires as strengthen member.
Recommended laying methods:
♦ Aerial
Applicable fields:
♦ Long distance communication and LAN.
Properties:
♦ Water proofing layer providing strong water-resistance performance.
♦ Steel tape with PE outer sheath and metallic strengthen member enhancing anti-crush and tensile property of cable.

Technical Data

Fiber range	Cable outer diameter	Cable netweight(Kg/km)	Min. bending radius(mm)		Allowable tension(N)		Max.crus loading force(N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Longterm
2-12	8.9	90	10 times cable diameter	20 times cable diameter	1500	600	1000	300
12-24	10.2	110


Packing &delivery
1) Length: 3000m/roll, other length is available according to clients request.
2) Packing: wooden drum
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C

Company Introduction
ADP cable manufacturer
Area 8000 m²
Number:100
( Including 10 technical personnel)
Our company was established in 2002 and is a professional manufacturer of Lan cable, patch cord cable, fiber optic cables, coaxial cables, alarm cable, telephone cables, power cables, fiber patch cord s, connectors and accessories.

Our total manufacturing area is 8000 square meters, with a lot of equipment, such as high speed cross product lines, high speed cross supervisor data return line systems and a cat6 twister system.

Our products strictly adhere to ISO9001, CE and ROHS international standards, also covering our design, development, service and management. We have more than 100 employees, including 10 technical personnel. Our annual production value reaches USD 2000,000,000, giving us stable development and increased competitive power within the markets.

ADP enterprise has been and will always be committed to the development and promotion of independent brands.

Certificate --Our products strictly adhere to ISO9001, CE and ROHS international standards,Certificate: UL/CE/ROHS/SGS/ISO9001

 Any inquiry, just feel free to contact with us any time!
