GYTY53 Layer Stranded Double Sheathed Outdoor Armored Fiber Optical Cable

Name: GYTY53 Layer Stranded Double Sheathed Outdoor Armored Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 806255795
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Armored Outdoor Fiber Optic Cable
Operating Temperature:	-40°c~60°c
Fiber Type:	GYTA53
Tube:	Layer Stranded Loose
Color Of Outsheath:	Black
Cores:	2-288 Cores
Structure:	Loose Tube Stranding
Armored:	Steel Wire Armored
OEM:	Available
Customized:	Available
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	FC-MTRJ
Certification:	CCC
Sheath Material:	PE,LSZH,PVC,TPU

Product Description

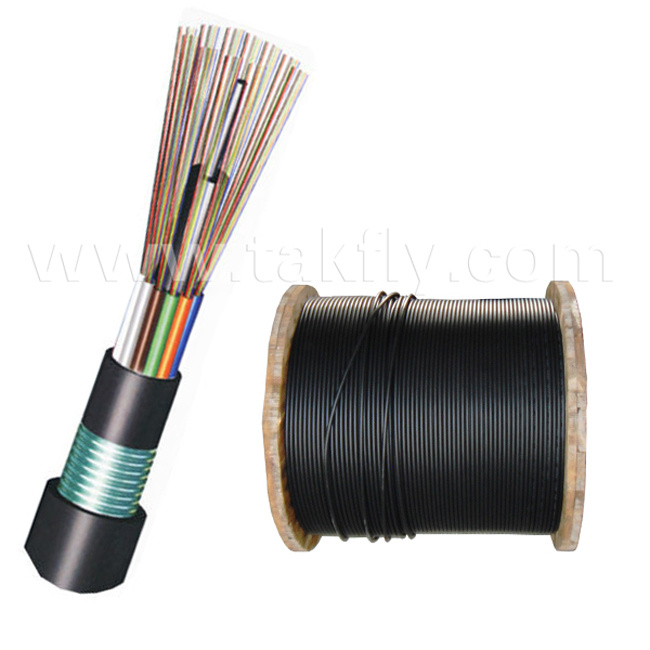

GYTY53 Layer Stranded Double Sheathed Outdoor Armored Fiber Optical Cable

Feature:
Low dispersion and attenuationProper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental propertiesDouble-jacket structure make cable have nice properties of moisture resistance and crush resistanceWith small cable diameter, light cable weight, easily to layOperating Temperature : -40 ~ +60 C
Characteristics:
Steel wire strength.filler protect tube fiber.steel tape armord.Good ultra violet radiation resistant property.Double sheath .Good moisture-resistance

Technical Parameters:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
24	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
36	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
42	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
48	13.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
60	13.0	185.00	3000	1000	3000	1000	20D	10D	-40+60
72	13.0	215.00	3000	1000	3000	1000	20D	10D	-40+60
96	14.5	215.00	3000	1000	3000	1000	20D	10D	-40+60
144	18.3	275.00	3000	1000	3000	1000	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber
