GYTY53 Outdoor Optical Fiber Cable Stranded Two Layers PE 96f

Name: GYTY53 Outdoor Optical Fiber Cable Stranded Two Layers PE 96f
Brand: all-electronics-online.com
SKU: 810565905
Availability: InStock
Rating: 4.7 (103 reviews)

Price:	US $ 0.5-7/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-OC-GYTY53-96
Used In:	Outdoor
Fiber Capacity:	2 to 144 Cores
MOQ:	2km
Print:	Customized
Jacket Color:	Black
Breakout:	Colored Fibers
Loose Tube:	Max 12 Tubes
Jacket:	Two Layer PE Jacket
Armour:	One Layer Steel Armour
Cable Structure:	GYTY53 Stranded Loose Tube
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Figure 8 Cable
Sheath Material:	PE

Product Description

FA-OC-GYTY53-96, GYTY53 Outdoor Optical Fiber Cable, Stranded Loose Tube, with One Layer Armour and Two Layers PE Sheath/Jacket, with steel wire central strength member, 96 Fibers

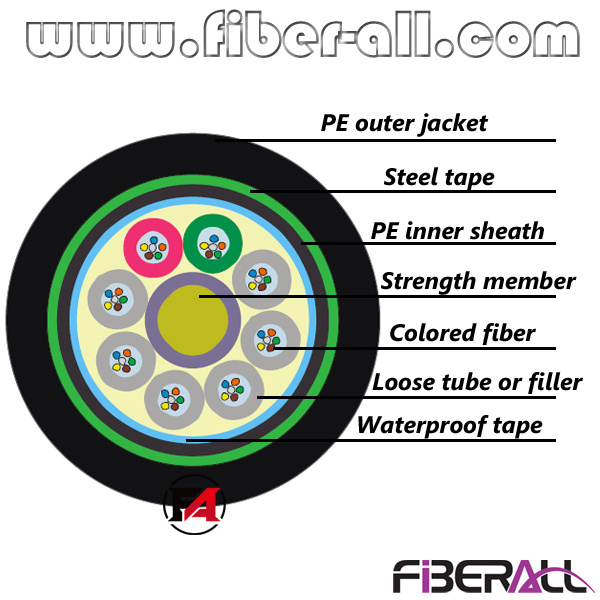

Structure Descriptions (Fiberall):
1. UV colored fiber: maximum 12 fibers each tube
2. Maximum 12 pcs loose tube-Φ2.10 ±0.15mm
3. Central strength member--Steel wire
4. Inner sheath:PE
5. Armored steel tape-Thickness 0.15mm
6. Outer jacket: PE

Fiber Characteristics (Single Mode Fiber ):

Item	Unit	Specification
Attenuation	dB/km	1310nm≤0.4 1550nm≤0.3
Dispersion	Ps/nm.km	1285~1330nm≤3.5 1550nm≤18.0
Zero dispersion wavelength	Nm	1300~1324
Zero dispersion slope	Ps/nm.km	≤0.095
Fiber cutoff wavelength	Nm	≤1260
Mode field diameter	Um	9.2±0.5
Mode field concertricity	Um	<=0.8
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concertricity error	Um	≤12.5
Coating diameter	um	245±10
bending,dependence induced attenuation	1550nm, 1turns, 32mm diameter 100rums, 60mm diameter	≤0.5 db
Proof test	kpsi	≥100

Fiber Characteristics(Multi Mode Fiber):

Item	Unit	Specification
Attenuation	dB/km	850 nm≤3.5 1300 nm≤1.5
Bandwidth	MHz·KM	50/125um	62.5/125 um
		850 nm≥200	850 nm≥160
		1300 nm≥200	1300 nm≥200
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concerntricity error	Um	≤12.5
Coating diameter	um	245±10
bending,dependence induced attenuation	850nm,1300nm 100turns,75mm diameter	≤0.5 at 850 nm\1300 nm
Proof test	kpsi	≥100

Mechanical Parameters:

Model	Fiber Qty	OD(mm)	Tube Qty	Nominal Weight (kg/km)	Max.Tension (N)		Max. Crushing Resistance (N/100 )
Model	Fiber Qty	OD(mm)	Tube Qty	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term
GYTY53	2--60	12.0±0.5	5	145	3000	1000	3000	1000
GYTY53	62--72	13.0±0.5	6	196	3000	1000	3000	1000
GYTY53	74--96	14.0±0.5	8	230	3000	1000	3000	1000
GYTY53	98--120	16.0±0.5	10	270	3000	1000	3000	1000
GYTY53	122--144	18.5±0.5	12	360	3000	1000	3000	1000

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
