Gyxtc8s Figure-8 Aerial Outdoor Optic Fiber Cable
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB |
| Min Order: |
20000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYXTC8S |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Name: |
Gyxtc8s Figure-8 Optic Fiber Cable |
| Number Of Cores: |
2--48 |
| Temperature: |
-40ºC--70ºC |
| Outer Sheath: |
PE |
| Color: |
Black |
| Application: |
Telecommunication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Material Shape: |
Fig-8 |
| Brand: |
Jinlong |
| Sheath Material: |
PE/HDPE/Lzsh |
Product Description

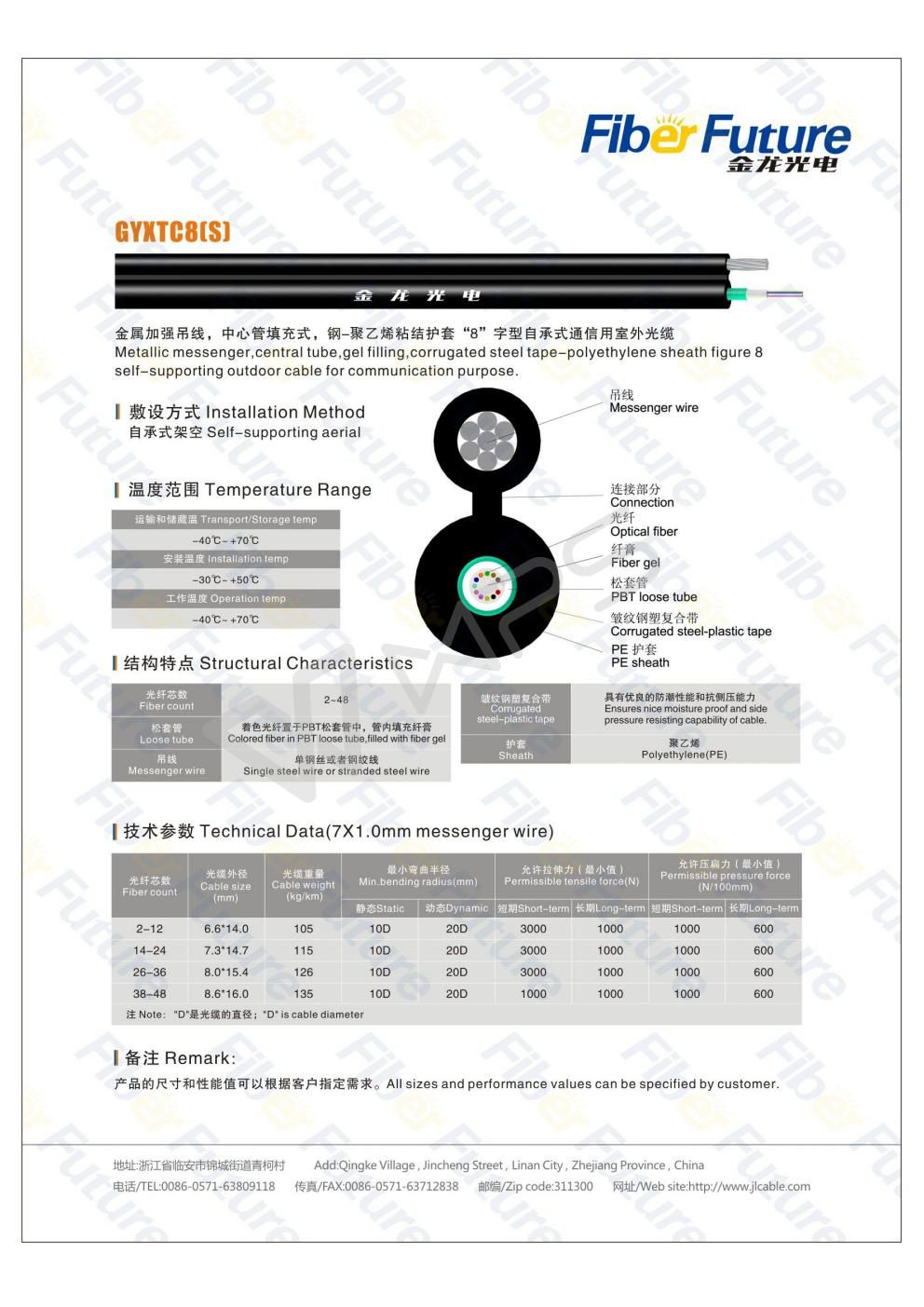

GYXTC8S Figure-8 Aerial Outdoor Optic Fiber Cable
Figure-8 optic fiber cable GYXTC8S
Metal Strength member, gelly filled
PSP- PE sheath
The way: Aerial
GYXTC8S figure-8 optic fiber cable
High quality optical fiber provides good transmission performance
Accurate fiber excess length control ensures excellence mechanical and temperature performance
Strict craft and raw material control for cable stably operating over 30 years
The sturcture of all section water blocking and longitudinally armored with both side coated aluminum tape provide good performance of moisture-proof and water blocking
Longitudinal corrugated steel tape improves crush resistance of the cable
Figure-8 self-supporting structure has good tensile strength and allows easy aerial installation for installation cost savings
GYXTC8S figure-8 optic fiber cable| Application | Long haul and building network communication |
| Min bend radius(mm) | Long-term 10D
Short-term 20D |
| Steel messenger | 1.0*7, 1.2*7, 1.5*7 |
| The way | Self-supporting aerial |
| Operating temperature (oC) | -40~60 |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
