| Prod Model: |
GYXTW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Nmae: |
Optic Cable |
| Installation Style: |
Duct & Direct Buried |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura |
| Loose Tube Material: |
PBT with Jerry |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Outer Sheath Material: |
MDPE / HDPE /Lszh |
| Outer Sheath Color: |
Black |
| Armour Material: |
Corrugated Aluminium Tape |
| Color Of Fiber And Loose Tube: |
Red,Black,Yellow,Violet,Pink,Aqua |
| Color Of Fiber /Loose Tube: |
Blue,Orange,Green,Brown,Grey,White, |
| Application: |
Optic Cable |
| Type: |
Single-mode Fiber |
| Certification: |
Optic Cable |
| Connection Structure: |
Optic Cable |
Product Description
Product Description
These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

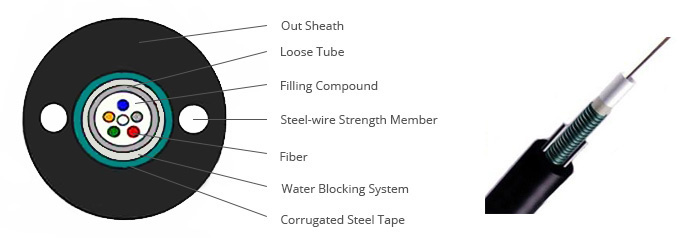

The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.
Item Details
Fiber Count : 12 Fibers Strength Member Materials: Steel Wire Fiber Type: 50/125μm Multimode Armor Layer: PSP Outer Sheath: PE (Default) Cable Structure
Features Light weight, small diameter, easy to lay.Good mechanical and temperature resistant performance.Low dispersion and attenuation.The centrally-situated loose tube minimizes the influence of lateral crush.Good moisture-resistance, water blocking, and flexibility.Two parallel steel wires ensure tensile strength.Good Tensile Strength and Crush Resistance performance. | | Application Laying modes: Aerial & Conduit/Duct.Bureaus network.Metropolitan network.Access network |
| Cable Count | Out Sheath
Diameter | Weight | Minimum Allowable Tensile Strength (N) | Minimum Allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
Temperature |
| | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (ºC) |
| 2 | 8.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 8.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 8.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 8.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 10 | 8.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 8.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| | G.652 | 50/125µm | 62.5/125µm |
Attenuation
(+20°C) (dB/km) | @850nm | | ≤3.0 | ≤3.0 |
| @1300nm | | ≤1.0 | ≤1.0 |
| @1310nm | ≤0.36 | | |
| @1550nm | ≤0.22 | | |
| Bandwidth (Class A) (MHz·km) | @850nm | | ≥600 | ≥200 |
| @1300nm | | ≥1200 | ≥600 |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | | |
 |  |
| Package 1 | Package 2 |
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |

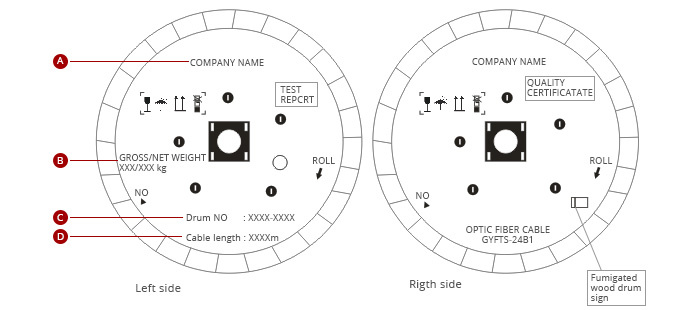

Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX
