| Prod Model: |
GYXTW53-8A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket Color: |
Black |
| Fiber Type: |
Sm G652D |
| Be Suitable For: |
Direct Buried |
| Jacket Material: |
PE |
| Application: |
Duct/Aerial/Direct Buried |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
| Brand: |
OEM or Geyida |
| Connection Structure: |
Fiber Optic |
Product Description
Outdoor 8 Core Om3 Multi-Mode Unitube Armored Optical Fiber Cable
Description

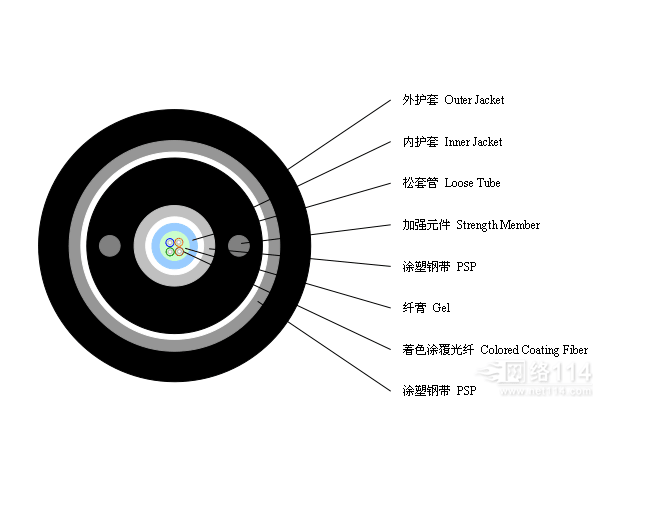

The fibers, are positioned in a loose tube made of a high modulus plastic.The tues are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally.Between the PSP and the tube water-blocking material is applied to keep the cable compact and watertight. Two parallel round steel wires are placed at the two sides of the steel tape.Then the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE sheath.
Outside the central loose tube it is wrapped by water-blocking system
Corrugated steel tape is laminated at both side and bonded to PE outer jacket.
Double armored and double sheathed structure ensure not only moisture-proof but also excellent mechanical performance.
Applicable fields
Long distance and Local Area Network (LAN) communication
GYXTW53 is suitable for aerial or conduit installation
Structure Characters
Double wire as strain member provides excellent strain performance
Excellent mechanical performance and temperature performance.
Easy to installation and operation
Small outer diameter, light weight, tight structure, excellent bending property
Good water-resistant properties
Options
Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b, OM3 or OM4 multi-mode fiber, or other types of fiber
Fiber count: The fiber count is usually 1-6, or other contracted fiber count;
Jacket Material: Environmental thermos plastic PE(TPU), or other contracted material;
Jacket Color: Black, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
| Cable Type (Increased by 2 fibers) | Fiber Count | Cable Diameter(mm) | Cable Weight (kg/km) | Tensile Strenth Long/Short Term(N) | Crush Resistance Long/Short Term(N/mm) | Bend Radius Static/Dynamic(mm) |
| GYXTW53-2-12Xn | 2-6 | 9.8 | 100 | 600/1500 | 300/1000 | 10D/20D |
| GYXTW53-2-12Xn | 2-12 | 10.6 | 124 | 1000/3000 | 1000/1000 | 10D/20D |
| GYXTW53-14-24Xn | 14-24 | 12 | 147 | 1000/3000 | 1000/1000 | 10D/20D |
| GYXTW53-26-36Xn | 26-36 | 12 | 150 | 1000/3000 | 1000/1000 | 10D/20D |
| GYXTW53-38-48Xn | 38-48 | 15 | 207 | 1000/3000 | 1000/1000 | 10D/20D |
