| Prod Model: |
SGB |
| Material: |
Epoxy Resin |
| Rated Capacity: |
630kVA |
| Rated Voltage: |
33kv |
| Frequency: |
50Hz/60Hz |
| Standard: |
IEC60076 |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi Electric |
Product Description

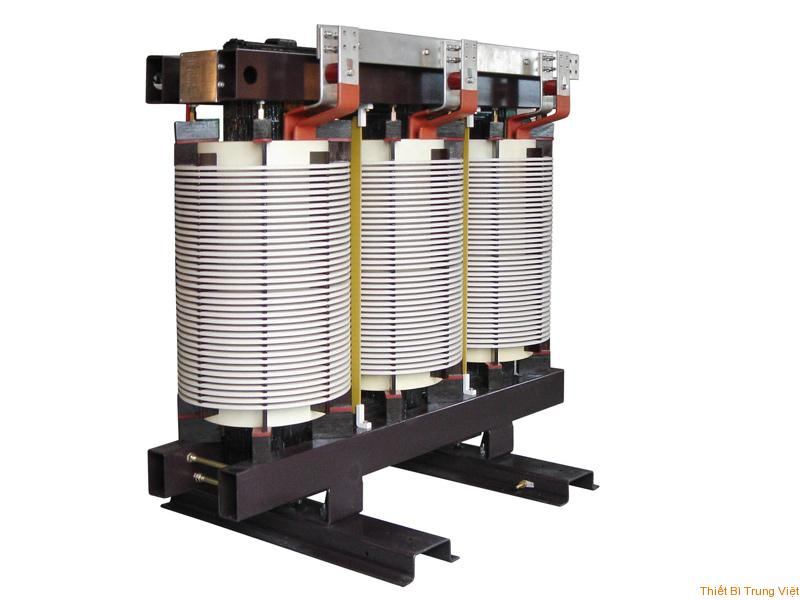

1.Model No : H-class insulation dry type electrical power distribution transformer
2.Phase : 3phase
3.Rated Capacity : 30kva-2500kva
4.Rated Voltage: 10kv-35kv
Technical Parameter for SG(B)10 Series Non-encapsulated Class H Dry-type Transformer
|
| Product Model No. | Connection Group Symbol | Loss W | Impedance Voltage(%) | No-load Current(%) | ()Overall Dimension (without enclosure) mm | Weight(Kg) |
| | | No-load Loss R | 145ºC
Load Loss R(W) | | | L | W | H | L1 | L2 | d | f | |
| SG10-30/10 |
Y,yn0
D,yn11 | 190 | 760 |
4 | 2.0 | 900 | 1180 | 880 | 265 | 220 | 550 | 550 | 420 |
| SG10-50/10 | | 270 | 1070 | | 2.0 | 940 | 1180 | 985 | 295 | 220 | 550 | 550 | 450 |
| SG10-80/10 | | 370 | 1480 | | 1.5 | 985 | 1180 | 1055 | 295 | 226 | 550 | 660 | 740 |
| SG10-100/10 | | 400 | 1690 | | 1.5 | 1010 | 1180 | 1135 | 295 | 226 | 660 | 660 | 770 |
| SG10-125/10 | | 470 | 1980 | | 1.3 | 1060 | 1180 | 1175 | 306 | 228 | 660 | 820 | 1005 |
| SG10-160/10 | | 540 | 2280 | | 1.3 | 1120 | 1180 | 1230 | 312 | 228 | 660 | 820 | 1015 |
| SG10-200/10 | | 620 | 2710 | | 1.1 | 1180 | 1230 | 1275 | 312 | 238 | 660 | 820 | 1035 |
| SG10-250/10 | | 720 | 2960 | | 1.1 | 1290 | 1230 | 1330 | 315 | 238 | 660 | 820 | 1155 |
| SG10-315/10 | | 880 | 3730 | | 1.0 | 1320 | 1340 | 1355 | 315 | 240 | 820 | 1070 | 1365 |
| SGB10-400/10 | | 980 | 4280 | | 1.0 | 1350 | 1340 | 1435 | 315 | 240 | 820 | 1070 | 1585 |
| SGB10-500/10 | | 1160 | 5230 | | 1.0 | 1395 | 1340 | 1495 | 325 | 258 | 820 | 1070 | 1795 |
| SGB10-630/10 | | 1345 | 6290 | | 0.85 | 1450 | 1340 | 1550 | 325 | 268 | 820 | 1070 | 2265 |
| SGB10-630/10 | | 1300 | 6400 | | 0.85 | 1545 | 1340 | 1445 | 325 | 268 | 820 | 1070 | 1930 |
| SGB10-800/10 | | 1520 | 7460 | | 0.85 | 1590 | 1340 | 1490 | 330 | 273 | 820 | 1070 | 2450 |
| SGB10-1000/10 | | 1770 | 8760 | | 0.85 | 1680 | 1340 | 1555 | 330 | 276 | 820 | 1070 | 2640 |
| SGB10-1250/10 | | 2090 | 10300 | | 0.85 | 1710 | 1470 | 1635 | 335 | 286 | 820 | 1070 | 3170 |
| SGB10-1600/10 | | 2450 | 12500 |
6 | 0.85 | 1800 | 1470 | 1770 | 350 | 330 | 1070 | 1070 | 3985 |
| SGB10-2000/10 | | 3050 | 15500 | | 0.7 | 1850 | 1470 | 1890 | 350 | 346 | 1070 | 1070 | 4850 |
| SGB10-2500/10 | | 3600 | 18400 | | 0.7 | 1900 | 1470 | 2030 | 365 | 356 | 1070 | 1070 | 5620 |
1.[ Product Introduction:]
SG (B) 10 series of non-encapsulated H-class dry-type power transformers adopts the special process technology of German (MORA) dry-type transformers to ensure that the products fully meet the fire prevention and waterproof and environmental protection requirements. It is the ideal product for distribution systems and it's widely used in the subway, shipbuilding, mining, chemical, power companies and personnel-intensive buildings as well as other special requirements of the occasion for safety.
2.[ Advantages :]
It is the ideal product for distribution systems and it's widely used in the subway, shipbuilding, mining, chemical, power companies and personnel-intensive buildings as well as other special requirements of the occasion for safety.
3.[ Packing & Delivery :]
SAFE, TIMELY,EFFICIENT
Long time shipment & Seaworthy wooden box |
| Wooden package optional: | 1,choose one unit/ wooden box |
| 2,choose 2units/ wooden box to save cost |
| Customized |
4.[ Our Company ]:
Baoding Zhongyi Electrical material Manufacturing Co., Ltd.mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
5.[ Our Service :]
| 1, Your inquiry will be replied within 24 hours. |
| 2, Customized service & perfect business solution |
3, After-sale service: 1 years warranty and all-life services
|
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
