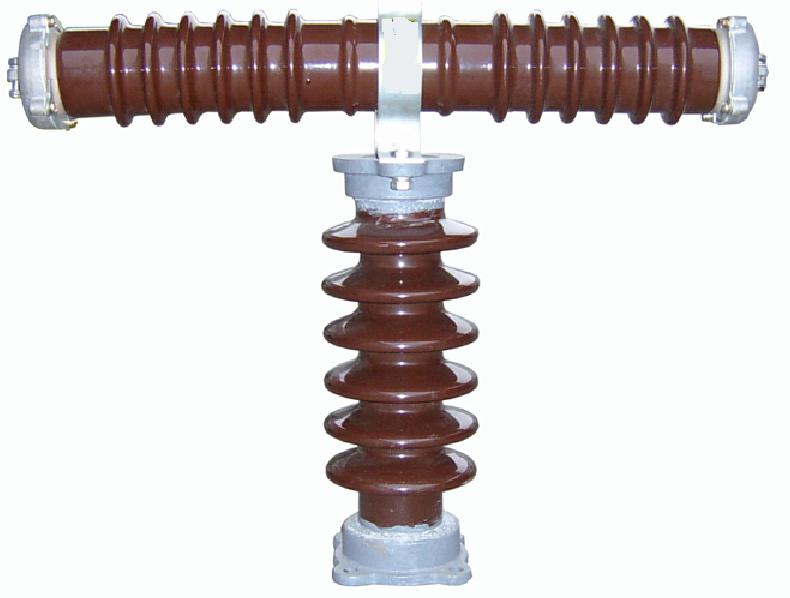

(H) RXWO-40.5 40.5kV Current-Limiting Fuse

Name: (H) RXWO-40.5 40.5kV Current-Limiting Fuse
Brand: all-electronics-online.com
SKU: 834075475
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	US $ 30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	(H)RXWO-40.5
Material:	Porcelain or Composite
Installation:	Flange
Type:	Current Fuse
Shape:	T Shape
Size Of Fuse:	0.2A-10A
Execution Standard:	IEC 60282-1
Brand:	Powery

Product Description

(H)RXWO-40.5 series A.C.high voltage current limit type fuse cutout is suitable for D.C power system with system voltage 10kV ~35kV, frequency 50Hz( or 60Hz).It mainly protects transmission lines and power transformers from short circuit and over load. Fuse cutout with rated current .0.5A is used for protecting voltage transformer. It only has effect in short-circuit protection, not in overload protection. However, fuse cutout with rated current 2A~10A are suitable for protecting power lines from both short circuit and over load.
Current-Limiting Fuse(Porcelain)

Product type	Rated voltage(KV)	Capacity of largest blanking of three-phase	The Max breaking current(KA)	Weight(Kg)	Rated current A	Note
RXWO-40.5/0.2-1	40.5	1000	16	26	0.2,0.5,1	Protect the voltage transformer
RXWO-40.5/2	40.5	200	14	26	2	Protection of electric power line
RXWO-40.5/3	40.5	200	14	26	3	Protection of electric power line
RXWO-40.5/5	40.5	200	14	26	5	Protection of electric power line
RXWO-40.5/7.5	40.5	200	14	26	7.5	Protection of electric power line
RXWO-40.5/10	40.5	200	14	26	10	Protection of electric power line

Current-Limiting Fuse(Composite)

Product type	Rated voltage(KV)	Rated current A	Rated breaking current (A)	Note
HRXWO-40.5/0.2-1	40.5	0.2,0.5,1	50	Protect the voltage transformer
HRXWO-40.5/2	40.5	2	50	Protect the voltage transformer
HRXWO-40.5/3.15	40.5	3.15	50	Protect the voltage transformer

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
