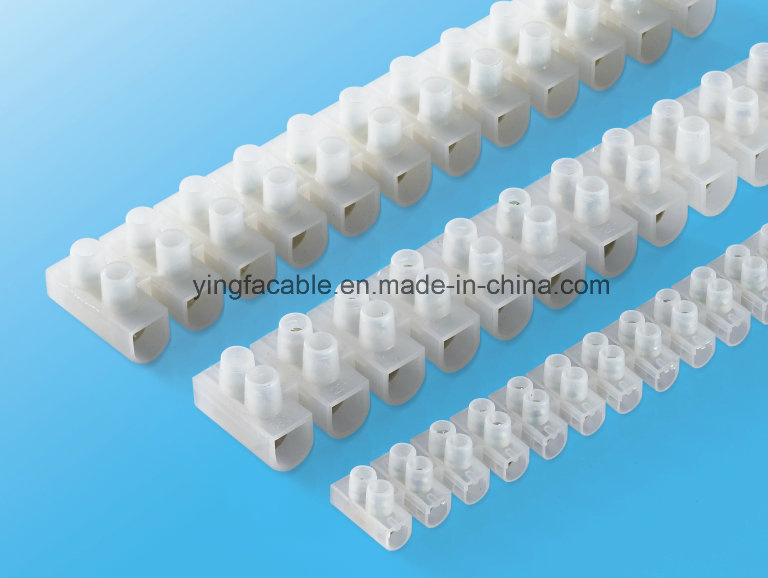

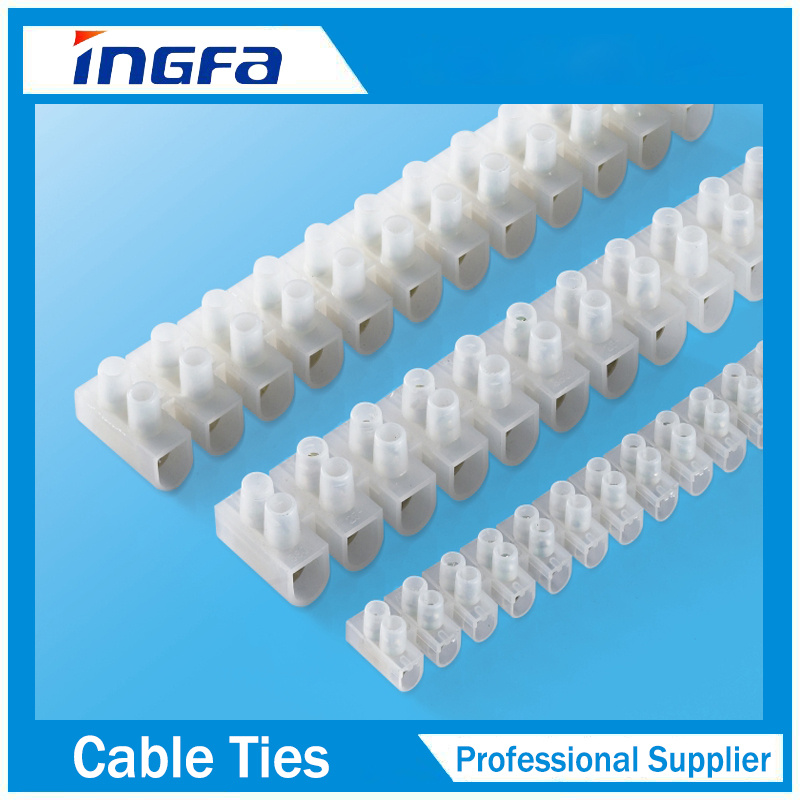

H Type 12 Pole Electric Connector Terminal Block

Name: H Type 12 Pole Electric Connector Terminal Block
Brand: all-electronics-online.com
SKU: 829847015
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	US $ 0.0229-0.0238/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YFH
Rated Voltage:	450V
Colour:	White,Black
Characteristics:	Insulation
Contact Termination Form:	Screws Fixed
Sample:	Free
Factory:	Yes
Quality:	High Quality with Cheap Price
Custom Label:	Accepted
Connection Mode:	Feedthrough
Screw:	Steel, Zinc Plated
Application:	Cable, Communication, Integrated IC, Lighting
Type:	High Temperature Electric Connector
Material:	PA, PE or PP
Certification:	Ce RoHS ISO9001
Brand:	Ingfa

Product Description

Strip Terminal Connector H/U:
1) Material: PA/ PP/ PE
Working temperature: -30'C to 110'C. (PA) / -20'C to 90'C(PP). / -40'C to 65'C(PE).
2) Brass,screw is iron plated zinc.
3) Voltage: 250-450V.
4) Color:According sample picture or customized.

Technical Data:

Item no.	L	W	H1	H2	Φ	E1	E2	screw size	material
Item no.	mm							screw size	material
3A 4mm 2	92.3	16.8	12.3	7.7	3	7.8	5.7	M2.5*4	PE PP PA
6A 6mm 2	115.4	18.8	15.4	8.7	3.2	9.6	6.3	M3*5	PE PP PA
10A 10mm 2	129.3	20.7	16	9.5	4.2	11	7.6	M3*6	PE PP PA
15A 12mm 2	137.8	22.5	18.6	10.3	4.5	11.7	8.6	M3*7	PE PP PA
20A 14mm 2	138	22.5	19	10.7	4.7	12	8.6	M4*6.5	PE PP PA
30A 16mm 2	164	25.5	20	11.7	5.6	13.9	9.3	M4*7	PE PP PA
60A 25mm 2	186	29.2	25.3	14.8	6.6	15.7	10.8	M4*9	PE PP PA
80A 35mm 2	226.8	36.1	29	18	7.8	19.2	13.2	M5*11	PE PP PA
100A 40mm 2	254.8	45	34.7	22.3	9	20.5	19.2	M6*12	PE PP PA

Why chose us:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

We are specialized in terminal block,cable connector,terminals etc.
Only part of the products are listed above, please visit our web, contact us for detailed information.

MOQ: for standard size,any quantity is OK.
Payment: A. 30% TT in advance, 70% TT before delivery
B. Negotiable
Delivery: 1-3 days after received receipt of deposit.

Yueqing Yingfa Cable Accessories Co., Ltd, is a hi-tech enterprise, occupied with a professional experts, stainless steel cable tie\Plastic stuck stainless steel cable tie\Plastic covered stainless steel cable tie\Plastic stuck stainless steel cable tie doctors, and skilled technicians, imported foreign advanced production and test equipment, mainly manufacture nylon tie, steel nail clip, wiring cap, terminal, cable marker, spiral wrapping bands, cold compressed connector and etc.

Based on excellent quality and good reputation and complete after-service service, the products are widely exported to America, Europe, Russia, Australia, Middle East and etc, established full sale network for being based on domestic market and extending overseas, won great economic profits and social appreciation.

Yueqing Yingfa Cable Accessories Co., Ltd. With strong strength, reasonable prices, excellent service and a number of enterprises to establish a long-term relations of cooperation. Warmly welcome to visit, study, business negotiations.
